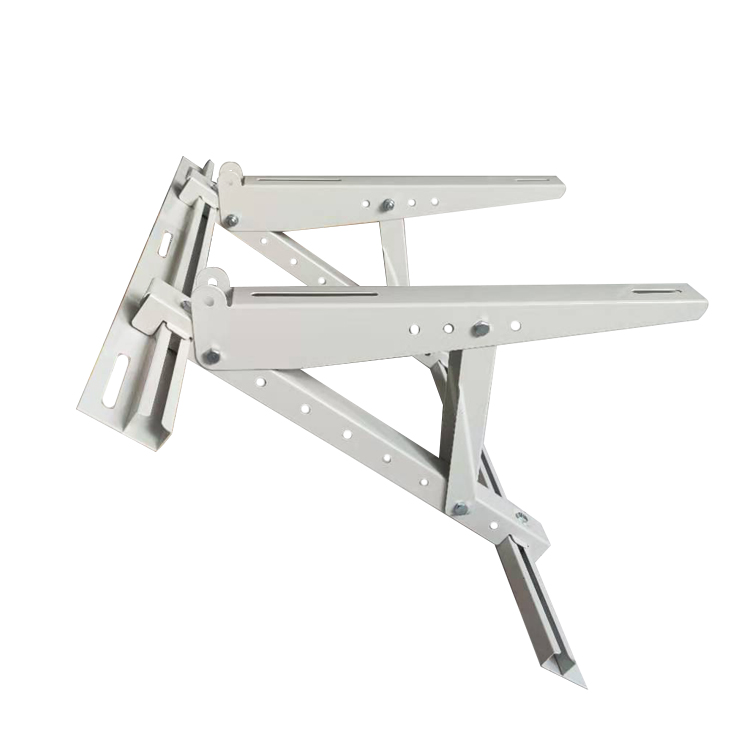

Mini-Split Air Conditioner Wall Mounting Bracket
This air conditioning roof bracket is popular in the USA, Australia, and Europe. The wall mount triangle support bracket is designed for mini split air conditioners.
Technical Specifications
Product Overview
Professional Mini-Split Mounting Solutions
These heavy-duty wall and roof mounting brackets are engineered to provide secure, long-lasting support for mini-split air conditioning outdoor units. Featuring a robust triangular bar design, these brackets ensure structural integrity and enhanced weight distribution for safe operation. The system includes adjustable mounting options with a built-in 'U' component for precise positioning, making installation adaptable for various residential and commercial requirements.
Technical Specifications
Load Capacity
100 kg
Standard Models (HP047C/HP048C)
200 kg
Heavy Duty Models (HP049C/HP050C)
Model Specifications
| Model | Length | Width | Thickness | Net Weight |
|---|---|---|---|---|
| HP047C | 800 | 500 | 1.5 | 5.5 |
| HP048C | 800 | 500 | 1.5 | 5.8 |
| HP049C | 1,000 | 500 | 2 | 7.9 |
| HP050C | 1,000 | 550 | 2 | 8.8 |
- Materials & Finish
- Zinc-coated steelEpoxy resin polyester coatingCorrosion-resistantRAL 9001 color
Installation & Design
Key Features

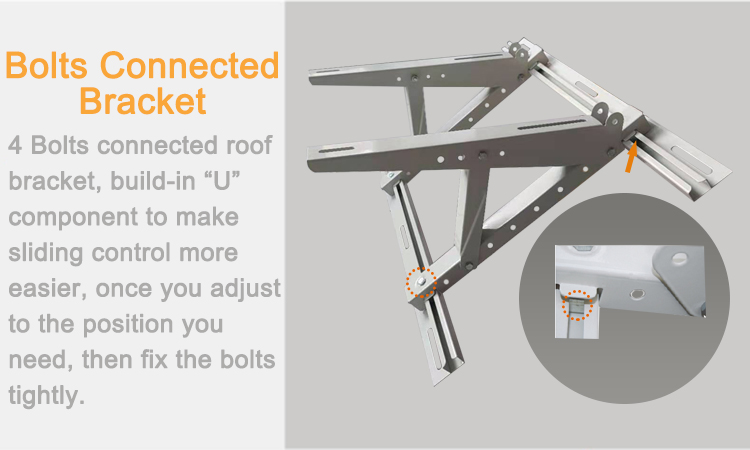

- 4-bolt connection system
- Built-in 'U' component for sliding adjustment

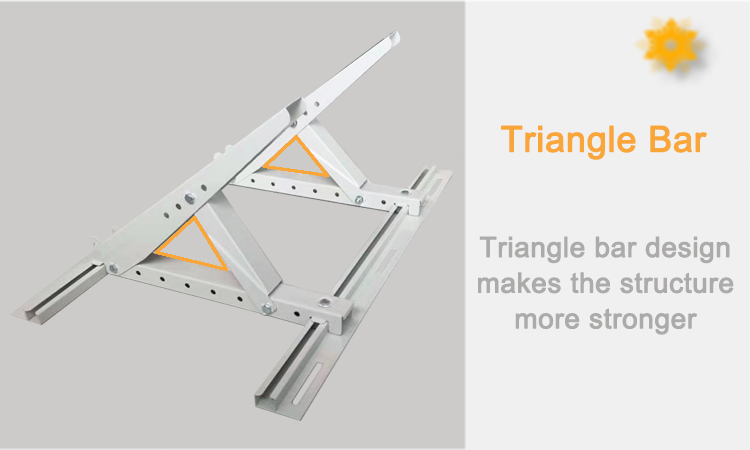

- Triangular bar design for added strength

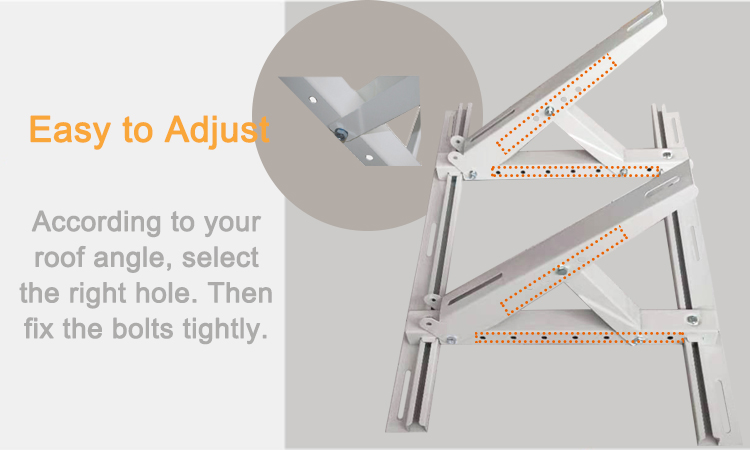

- Multiple mounting holes for roof angle adaptation
- Corrosion-resistant outdoor treatment
