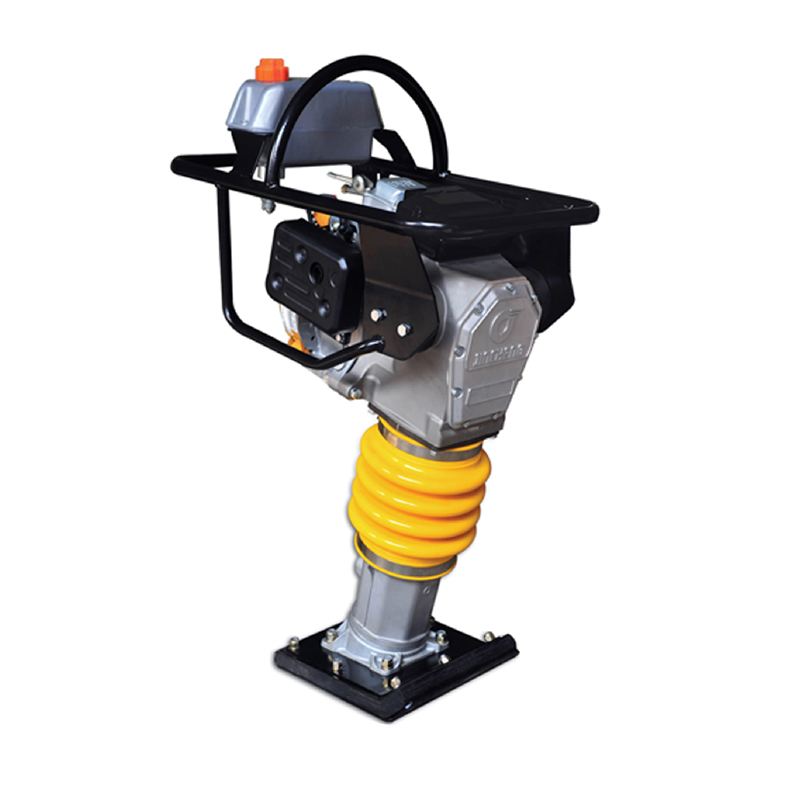

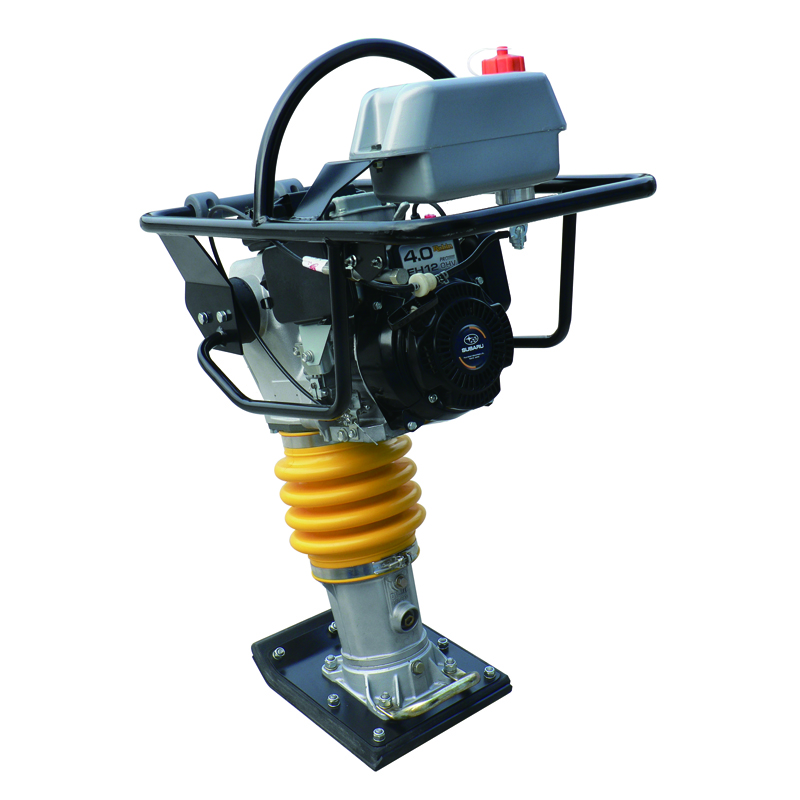

Soil Compaction Rammer
This compaction tool is designed for efficient soil compaction in construction and landscaping. It delivers high impact force for optimal compaction results and ensures long-lasting performance.
Technical Specifications
Product Overview
High-Performance Compaction
The JC72 soil compaction rammer is a robust, engine-powered tool engineered for superior soil and asphalt consolidation in confined areas. Featuring a 4-stroke overhead valve engine, it delivers a powerful 15.6 kN impact force to ensure uniform compaction of granular, mixed, and cohesive soils. Designed for efficiency in trench work, backfilling, and foundation preparation, it balances high-frequency performance with ergonomic control.
Performance
Impact Performance
15.6 kN
Impact Force
700 t/min
Avg. Impact Frequency
72 mm
Leap Height
Operational Specs
| Metric | Value |
|---|---|
| Advancing Speed | 10-15 m/min |
| Bottom Plate Size | 285 x 330 mm |
| Net Weight | 72 kg |
Technical Specifications
Engine Configuration
- 4-stroke, Single Cylinder, Forced Air-Cooled
- 121 ml Displacement
- 2.9 kW Max Power / 2.6 kW Rated Power
- Transistorized Electronic Ignition (C.D.I.)
- Recoil Starting System
- Capacities
- Fuel Tank: 2.5 LEngine Oil: 0.4 LRammer Oil: 0.85 L
