Technical Specifications
Product Overview
Professional Soil Compaction Performance

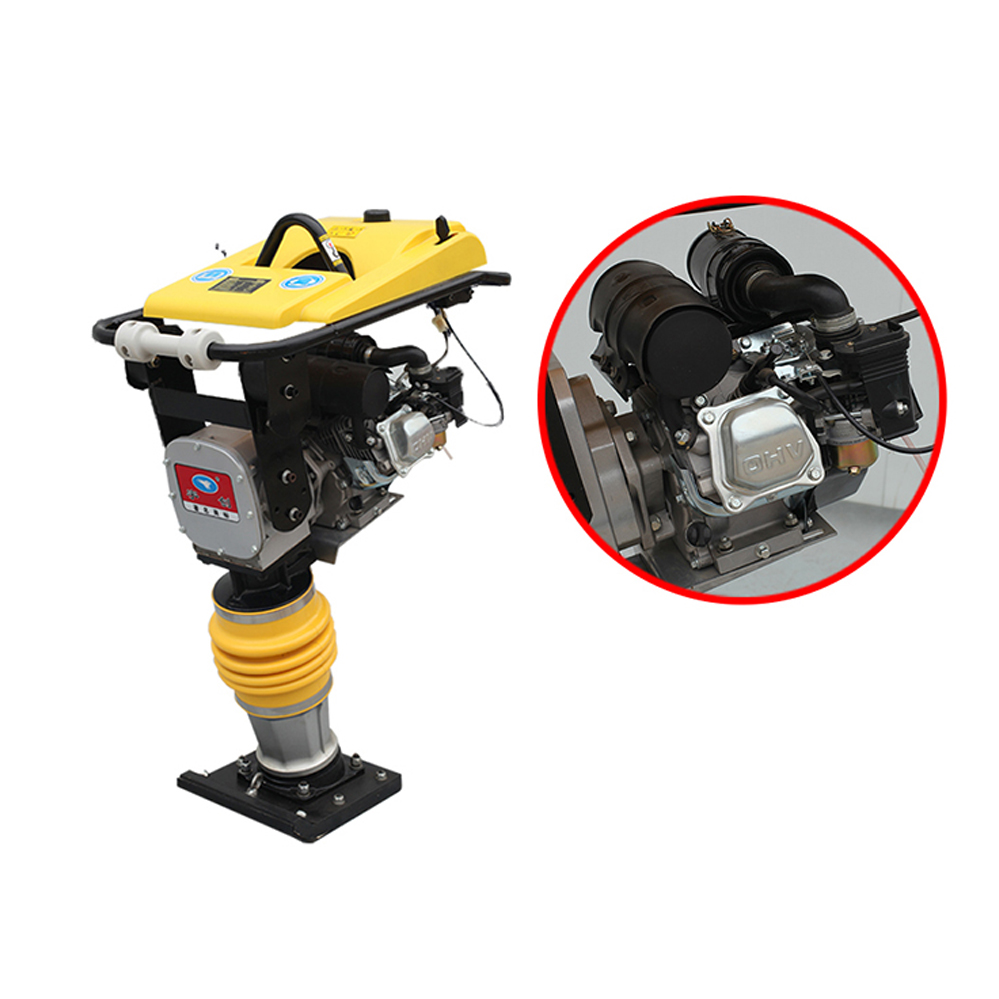

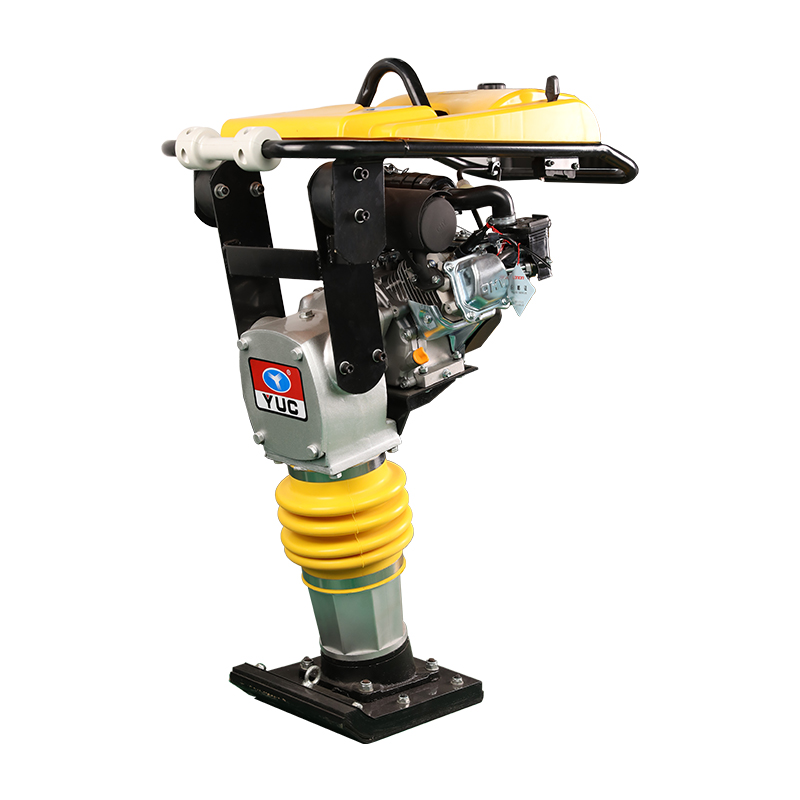

This Soil Compaction Rammer is engineered for high-efficiency compaction in construction, landscaping, and foundation work. Featuring a robust 4-stroke engine, it delivers 12KN of impact energy to handle demanding soil and backfill tasks. Its compact footprint and reliable design ensure long-lasting performance even in confined spaces and challenging job site conditions.
Technical Specifications
Performance Metrics
12 KN
Impact Energy
650 times/min
Max Impact Frequency
65 mm
Max Leap Height
- Engine Compatibility
- GX160EH12LC165F
- Engine Power
- 6.5 HP
- Advance Speed
- 10 to 13 mm
Physical Dimensions
Weight Specifications
| Weight Type | Value |
|---|---|
| Net Weight | 78 |
| Gross Weight | 102 |

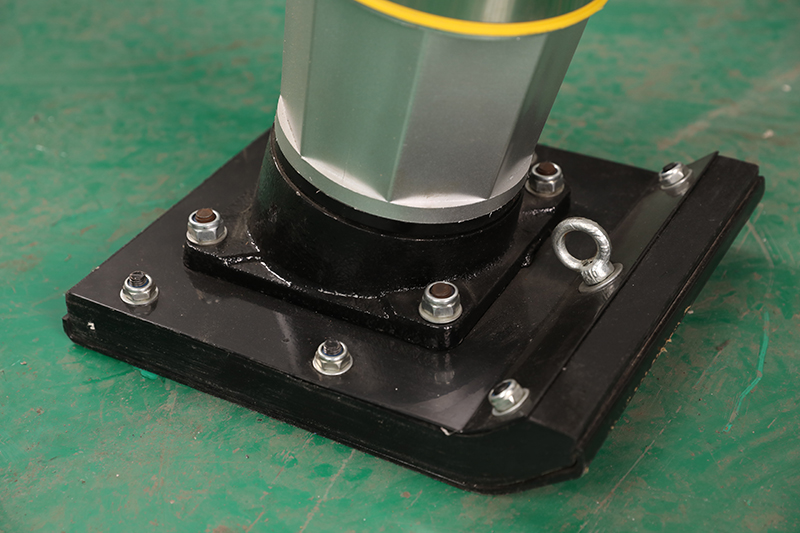

- Bottom Plate Dimensions
- 330 x 280 mm
Logistics
Packaging Details
- Steel frame and carton box protection
- Packing size: 750*500*1000mm
- Load capacity: 80 units per 10ft container
