SMT Placement Nozzle for FUJI NXT H04 Machines
This SMT placement nozzle is designed for use with FUJI NXT H04 machines. It facilitates the accurate and reliable placement of components onto printed circuit boards.
Technical Specifications
Product Overview
High-Precision SMT Placement Nozzles
These professional-grade SMT placement nozzles are specifically engineered for use with high-speed placement machines. Available in a wide variety of tip diameters and configurations, including specialized rubber-pad options for delicate component handling, these nozzles ensure precise and reliable component mounting on printed circuit boards. Their robust construction is designed to withstand the rigorous demands of continuous industrial assembly environments.
Compatibility and Quality
Quality Options
Original NewCopy New
- Compatibility
- FUJI NXT H04
Nozzle Specifications
Available Types
| Part Number | Size | Configuration |
|---|---|---|
| AA0AS00 | 1.0 | Standard |
| AA06800 | 1.3 | Standard |
| AA0HL00 | 1.8 | Standard |
| AA0HM00 | 2.5 | Standard |

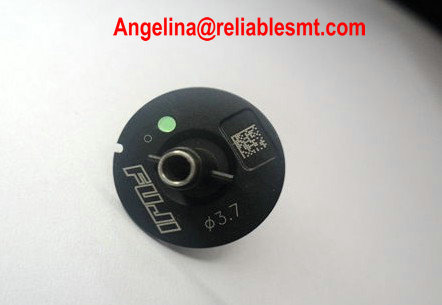

| AA0HN00 | 3.7 | Standard |
| AA0HR01 | 5.0 | Standard |
| AA08000 | 7.0 | Standard |
| AA08100 | 10.0 | Standard |
| AA08200 | 15.0 | Standard |
| AA08300 | 20.0 | Standard |

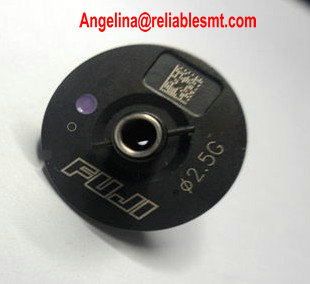

| AA08410 | 2.5G | Rubber Pad |
| AA08500 | 3.7G | Rubber Pad |
| AA07200 | 5.0G | Rubber Pad |
| AA07310 | 7.0G | Rubber Pad |
| AA07410 | 10.0G | Rubber Pad |
| AA07510 | 15.0G | Rubber Pad |
| AA07610 | 20.0G | Rubber Pad |
| AA0MZ00 | 1.3m | MELF |
| AA11R00 | 1.8m | MELF |
