SMT Placement Nozzle 507

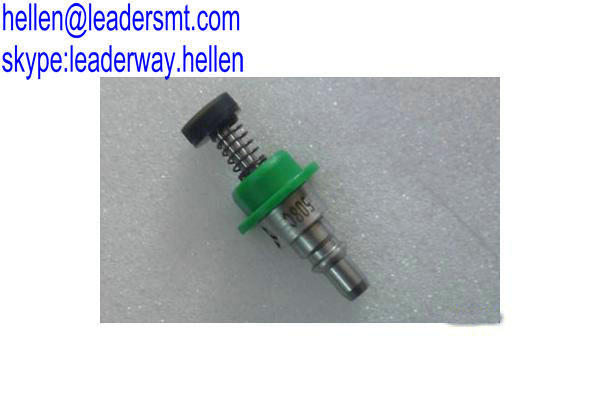

This is a JUKI SMT placement nozzle, type 507, designed for use in electronic assembly. It ensures accurate and reliable component placement on various JUKI SMT pick and place machines.
Technical Specifications
Product Overview
High-Precision Placement Nozzle
This high-precision placement nozzle is engineered for reliable component handling in automated surface mount technology (SMT) assembly processes. Designed with a robust, spring-loaded mechanism, it ensures controlled pick-and-place operations and consistent performance. The durable construction provides an extended service life, making it suitable for demanding industrial electronic assembly environments.
Technical Specifications
Design Features
- Spring-loaded mechanism
- High-precision alignment
- Vacuum-seal compatible
- Model Number
- 507
- Part Number
- E36067290A0
- Compatible Machine Series
- 2000 Series
Product Compatibility
Available Nozzle Types
| Series | Available Models |
|---|---|
| 700 Series | 101, 102, 103, 104, 105, 106, 201, 202, 203, 204 |
| 2000 Series | 500, 501, 502, 503, 504, 505, 506, 507, 508, 509, 510, 511 |
