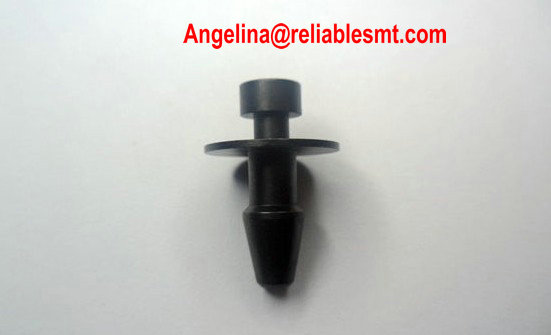

SMT Pick and Place Nozzle TN400
This SMT pick and place nozzle is designed for reliable component handling in surface mount technology applications. It is designed for optimal vacuum sealing and secure grip, ensuring accurate placement and minimizing component damage.
Technical Specifications
Product Overview
Precision SMT Placement Nozzle
This high-quality pick and place nozzle is engineered for reliable component handling in surface mount technology applications. Designed for optimal vacuum sealing and a secure grip, it ensures accurate placement and minimizes potential component damage during high-speed assembly. Its durable construction provides consistent performance and extended service life in demanding electronic manufacturing environments.
Compatibility & Specifications
Series Configuration Table
| Series | Description |
|---|---|
| CP 20/40 | XF 0.8*0.4 to QF 12.5/10.0 |
| CP 45 | TN03 to TN110 |
| CP 45 NEO | CN030 to CN140 |
| CP 60 | TN030 to TN400 |
- Supported Series
- CP 20CP 40CP 45CP 45 NEOCP 60
Performance
Featured Placement Metrics
6.2 mm
Outer Diameter
4 mm
Inner Diameter
Quality Standard
Original NewCopy New
