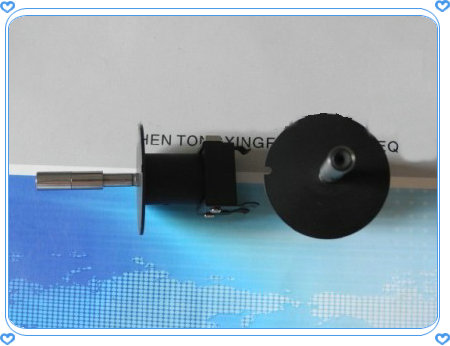

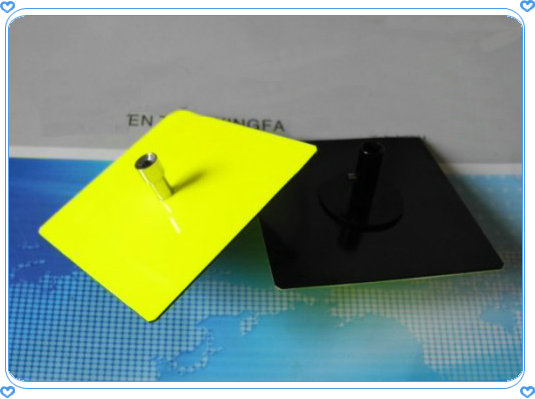

SMT Pick and Place Nozzle for Fuji QP Series
This SMT pick and place nozzle is designed for use with Fuji QP, QP132, QP242, and QP341 machines. It is constructed from durable materials to ensure reliable component placement.
Technical Specifications
Product Overview
Precision SMT Placement Nozzles
These high-precision pick and place nozzles are engineered for optimal compatibility with QP, QP132, QP242, and QP341 series surface mount technology equipment. Constructed from durable, high-quality materials, these components ensure reliable handling and accurate placement in high-speed assembly environments. Each nozzle is designed to minimize component damage, optimize pick-up rates, and reduce operational downtime for your production line.
Compatibility & Features
Key Features
- High-precision alignment
- Durable material construction
- Optimized for high-speed pick and place
- Available with optional rubber cups
- Compatible Series
- QPQP132QP242QP341
Nozzle Specifications
Available Nozzle Configurations
| Part Number | Description |
|---|---|
| ABHPN-8510 | QP-S-12 Ø 0.7 |
| ABHPN-8520 | QP-S-12 Ø 1.0 |
| ABHPN-8530 | QP-S-12 Ø 1.3 / 1.0 |
| ABHDN-8560 | QP-M-38 Ø 2.5 / 1.9 |
| ABHDN-8570 | QP-M-38 Ø 3.7 / 1.7 |
| ADBPN-8123 | QP-3 1.8Φ |
| ADBPN-8223 | QP-3 15ΦG |
| ADBPN-8341 | QP-3 23ΦG |
