SMT Pick and Place Machine Nozzle Assembly
This nozzle assembly is designed for use in SMT pick and place machines. It ensures accurate and reliable placement of electronic components onto PCBs.
Technical Specifications
Product Overview
High-Precision SMT Nozzle Assemblies
These professional-grade SMT nozzle assemblies are designed for precision component placement in automated pick-and-place systems. Available in both original new and high-quality compatible formats, they ensure consistent performance and reliability. Featuring durable construction and integrated spring-loaded mechanisms, these nozzles are engineered to maintain high placement accuracy and efficiency in demanding manufacturing environments.
Compatibility & Inventory
Available Nozzle Models
| Nozzle Type | Part Number |
|---|---|
| 500 | 40011046 |

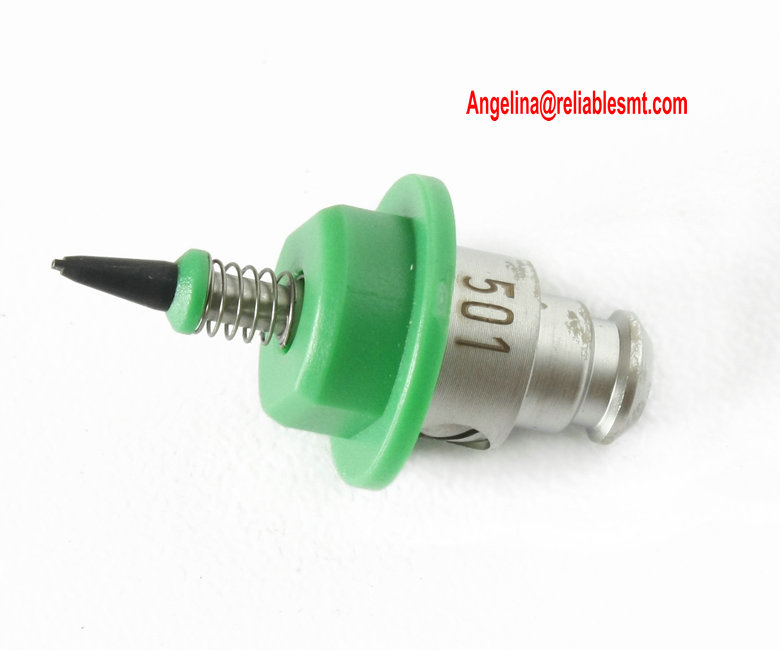

| 501 | 40001339 |
| 502 | 40001340 |
| 503 | 40001341 |
| 504 | 40001342 |
| 505 | 40001343 |
| 506 | 40001344 |
| 507 | 40001345 |
| 508 | 40001346 |
| 510 | E36157290A0 |
| 511 | E36167290A0 |
| 509 | 40025165 |
CVS Series Nozzle Models
- 500 CVS (40010999)
- 502 CVS (40010995)
- 503 CVS (40010996)
- 504 CVS (40010997)
- 505 CVS (40010998)
Product Features
- Build Quality
- High PrecisionSpring-loaded mechanismDurable Construction
