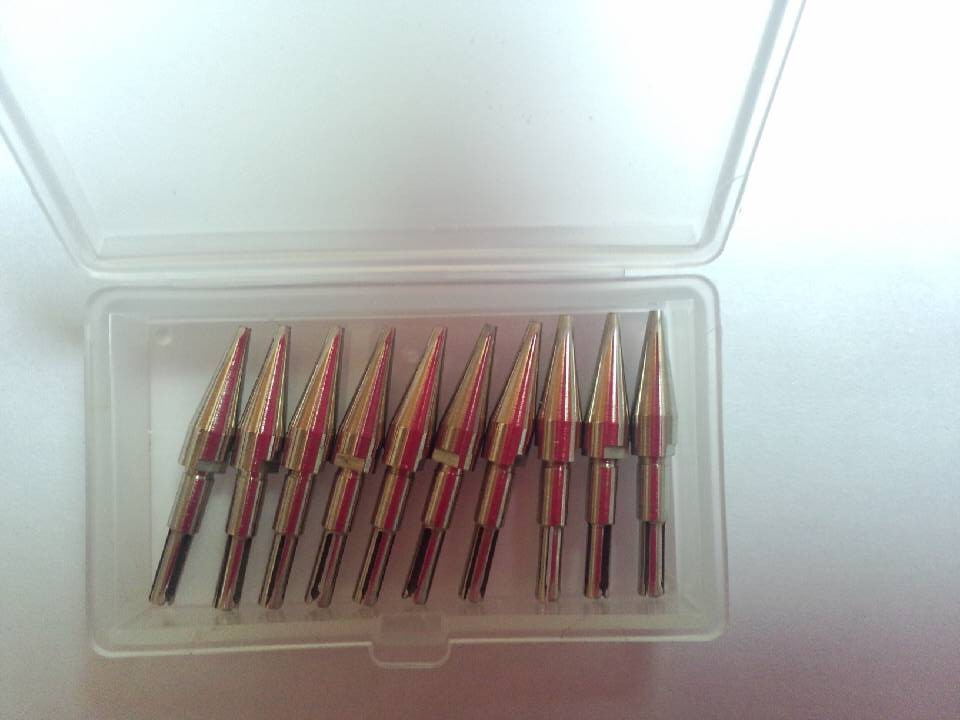

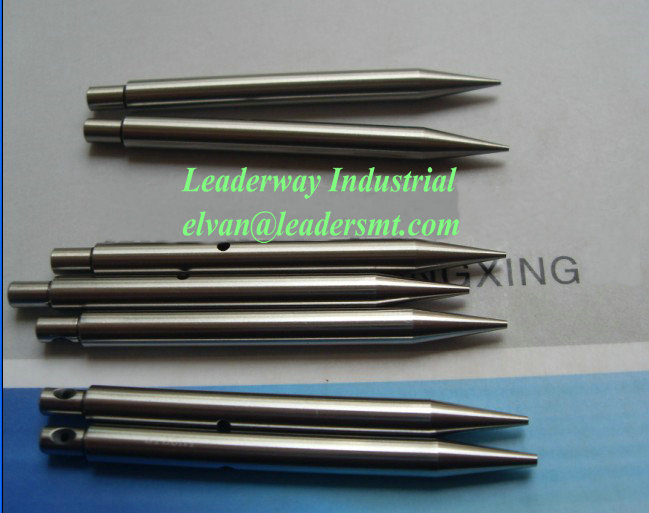

SMT Pick and Place Machine Nozzle
This SMT pick and place machine nozzle is designed for accurate component placement. It is constructed from high-quality materials for durability and reliable performance.
Technical Specifications
Product Overview
Precision SMT Placement Component
These high-precision nozzles are engineered specifically for SANYO TCM 1000 series pick and place machinery to ensure reliable component handling. Manufactured to exacting standards, they provide secure gripping and consistent placement accuracy to support high-speed, automated electronic assembly lines. Constructed from durable, high-quality materials, these nozzles are designed to optimize machine uptime and maintain manufacturing efficiency.
Compatibility & Specifications
Part Reference Table
| OEM Part Number | Configuration |
|---|---|
| 6300529586 | TCM 3000 - 0.6 / 0.4 |
| 6300523609 | TCM 3000 - 1.5 / 0.5 |
| 6300529616 | 1.8 / 0.5 |
| 6300529517 | 0.9 / 0.7 |
| 6300529579 | 1.3 / 0.9 |
| 6300529524 | 1.8 / 1.1 |
| 6300529548 | 3.0 / 2.0 |
| 6300529531 | 6.0 / 4.5 |
| 6300529555 | 1.3 / 0.9 (MELF) |
| 6300529562 | 2.5 / 1.2 (MELF) |
- Compatible Systems
- TCM 1000TCM 3000
