Technical Specifications

Product Overview

Professional Feeder Setup Solution

This SMT feeder setup jig is specifically designed to streamline the loading and preparation process for electronic feeders. By facilitating accurate and efficient component setup, this unit helps reduce assembly line downtime and improves overall productivity. Its durable construction ensures reliable performance even in high-volume manufacturing environments.

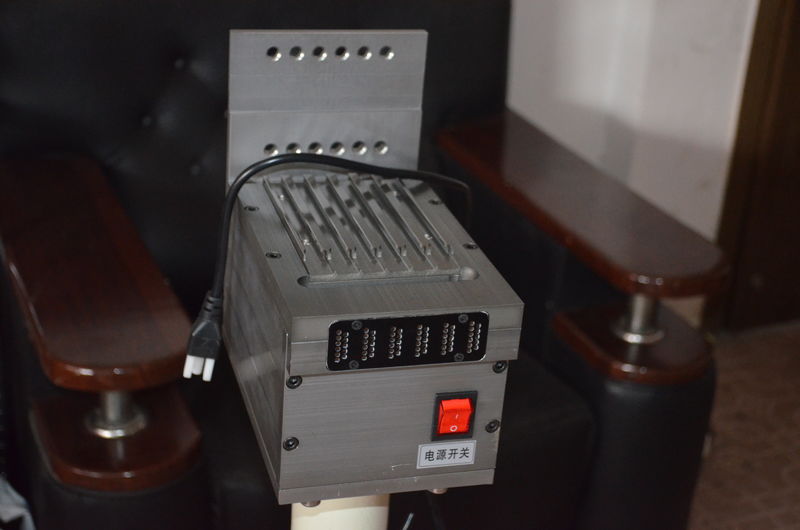

SMT electronic feeder loading unit setup jig — Precision-engineered loading unit for optimized feeder preparation.

Technical Specifications

Physical Dimensions: 300 x 355 x 1070 mm
Gross Weight: 10 kg
Feeder Capacity: 2 units

Compatibility

Supported Feeder Tape Widths

8*2mm
8*4mm
12mm
16mm
24mm
32mm
44mm
56mm

Compatible Series: CP SeriesSM SeriesSME SeriesSM IT Series

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

SMT Feeder Setup Jig for SAMSUNG SM Feeders

This setup jig is designed for preparing SAMSUNG SM series electronic feeders. It streamlines the feeder loading process, reducing downtime and improving overall productivity in SMT assembly lines.
