Technical Specifications
Product Overview
Versatile Smart Lighting Solution

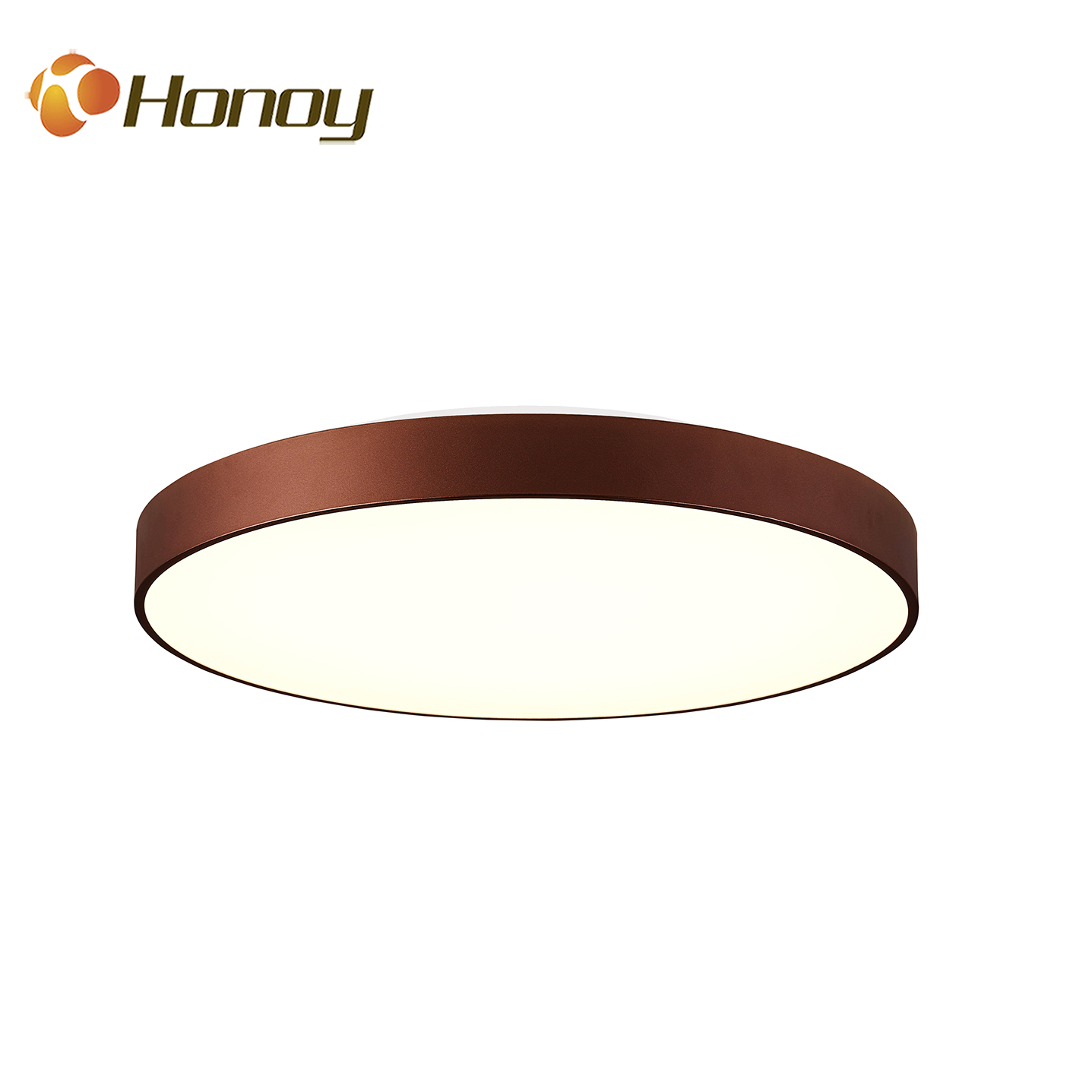

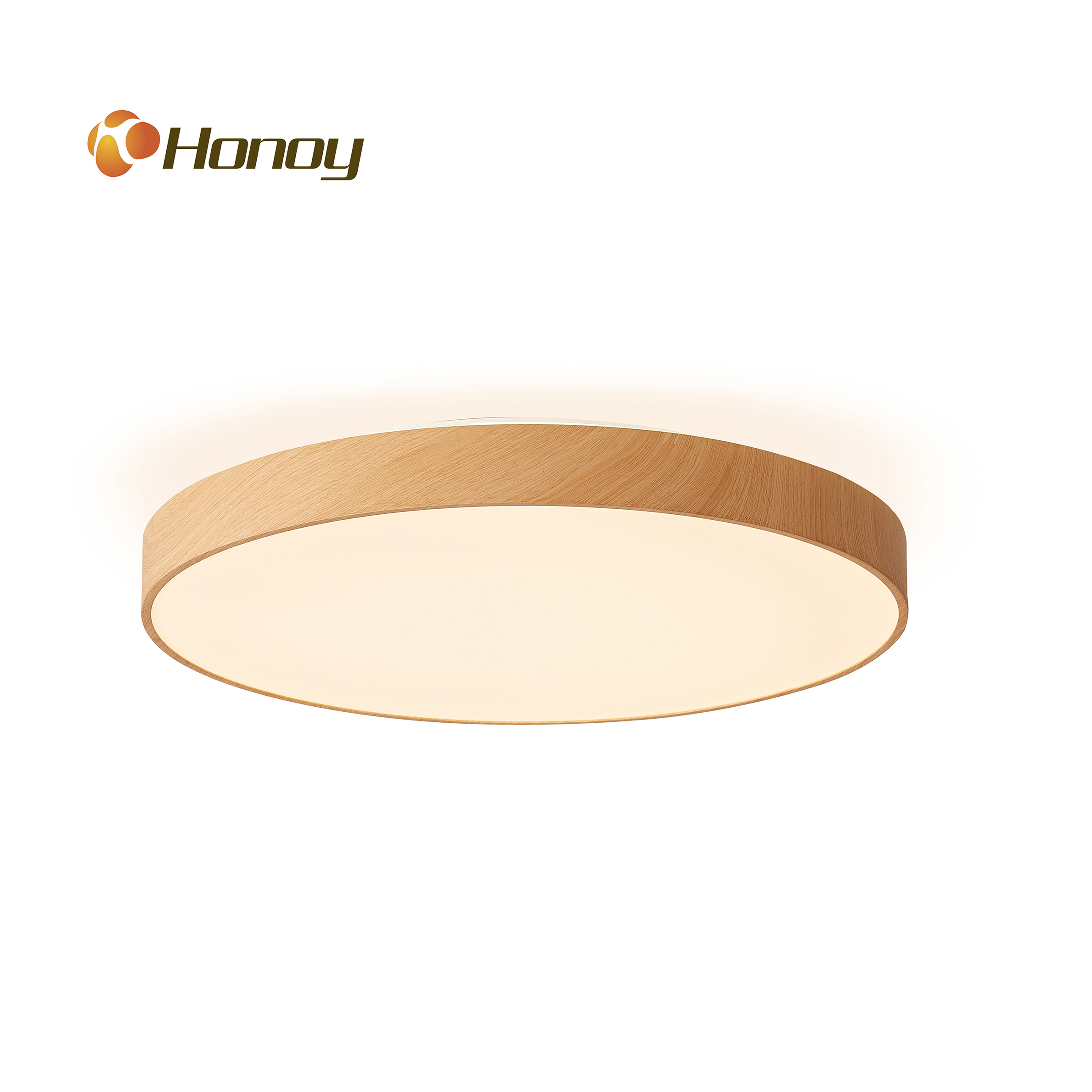

This modern LED ceiling and pendant lamp offers a sophisticated lighting experience with options for both direct and indirect illumination. Engineered with high-quality acrylic diffusers and durable iron housing, it ensures long-lasting performance and excellent light transmission. With advanced smart control compatibility including TUYA, 0-10V, and DALI, this fixture is perfectly suited for residential, office, and commercial hospitality environments.
Technical Specifications
Lighting Performance
80 >
Color Rendering Index (CRI)
3 Years
Warranty Period
Materials & Build
- Acrylic diffuser (non-yellowing)
- Iron frame
- Iron canopy
- SMD2835 LED with lens
- Dimming & Control
- 2.4GTUYA SmartTriac0-10VDALISwitch On/Off
Model Configurations
Model Specifications
| Model No. | Power (W) | Dimensions (mm) |
|---|---|---|
| 5378-835RC | 30W+5W | Ф400*90 |
| 5378-846RC | 40W+6W | Ф500*90 |
| 5378-868RC | 60W+8W | Ф600*90 |
| 5378-892RC | 80W+12W | Ф800*90 |
Installation & Application
Suitable Applications
ResidentialOfficeAirportRetailHotel
- Mounting Options
- Ceiling mount or Pendant (adjustable height)
