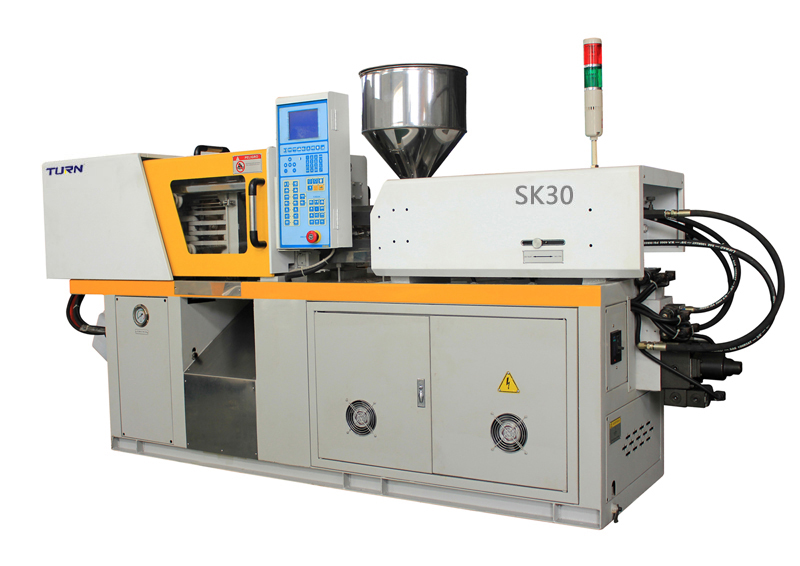

Small Plastic Injection Molding Machine
The SK series plastic injection molding machine utilizes a high-tech modular design to meet various application needs. Injection speed and pressure are adjustable, accommodating different production requirements.
Technical Specifications
Product Overview
Precision SK-Series Molding
The SK-series represents a high-efficiency solution for small-scale plastic injection molding. Engineered for durability and high-precision output, these machines feature advanced hydraulic clamping and intuitive controls, making them suitable for intricate plastic parts requiring tight tolerances. Available in multiple configurations, these units offer versatile shot volumes and clamping forces to suit diverse industrial requirements.
Injection Performance
Core Metrics
23 mm
Min Screw Diameter
88 g
Max Shot Weight (PS)
211 MPa
Max Injection Pressure
Injection Unit Specifications
| Model | Screw Dia (mm) | Shot Vol (cm³) | Inj. Pressure (MPa) |
|---|---|---|---|
| SK30A | 23 | 38.6 | 211 |
| SK30B | 25 | 45.6 | 179 |
| SK40A | 27 | 52 | 207.5 |
| SK40B | 30 | 64 | 168 |
| SK50A | 28 | 61.5 | 207.5 |
| SK50B | 32 | 80 | 168 |

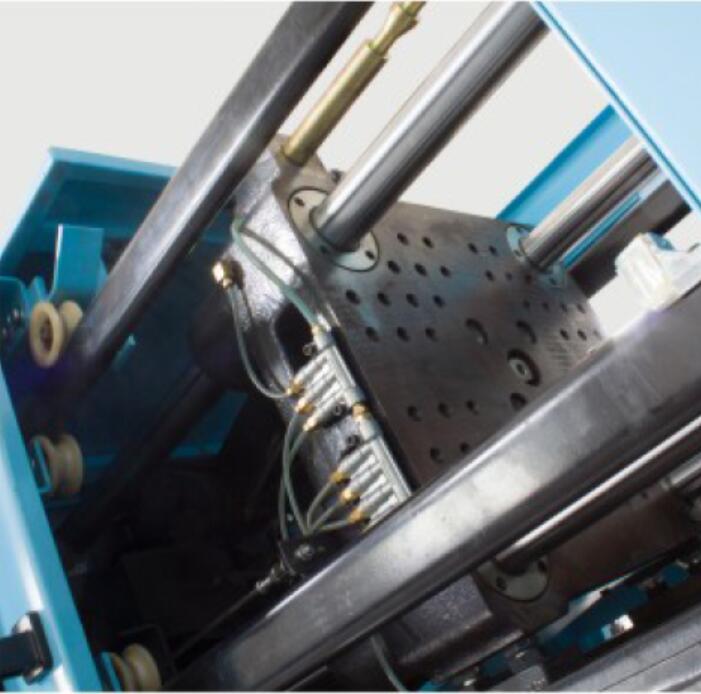

Clamping Unit
Clamping Parameters
| Model Series | Clamp Tonnage (kN) | Toggle Stroke (mm) | Ejector Tonnage (kN) |
|---|---|---|---|
| SK30 | 300 | 195 | 45 |
| SK40 | 400 | 240 | 60 |
| SK50 | 500 | 270 | 70 |
Utilities and Dimensions
Power and Hydraulics
- Max Pump Pressure: 14-16 MPa
- Pump Motor Power: 3.0 - 5.5 kW
- Heating Power: 2.5 - 4.0 kW
- Weight
- 1.1 t
