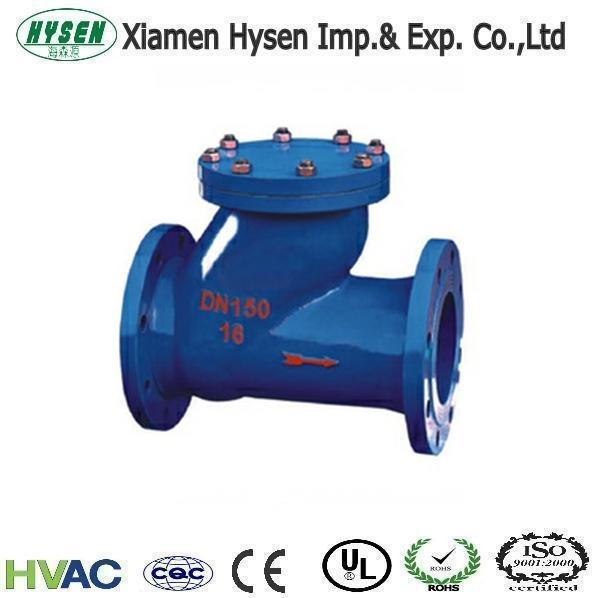

Sliding Ball Check Valve for Water and Corrosive Fluids
This sliding ball check valve is designed for use with water and weak corrosive fluids. The valve allows flow in one direction, preventing backflow and ensuring system integrity.
Technical Specifications
Product Overview
Sliding Ball Check Valve Technology
This sliding ball type check valve utilizes a rubber-coated ball that slides within an integrated chute to open and close based on line pressure. Its design eliminates noise and water-hammering while providing excellent sealing capabilities. Featuring a full-bore construction, this valve minimizes flow resistance and pressure loss, making it significantly more efficient than traditional swing check valves.
Technical Specifications
Nominal Pressure
1 MPa
Minimum Pressure
1.6 MPa
Maximum Pressure
- Nominal Diameter Range
- 50 mm
- Maximum Nominal Diameter
- 350 mm
Operational Conditions
- Working Temperature
- 0 - 80°C
- Suitable Media
- WaterWeak Corrosive Fluids
Compliance and Standards
Flanged End Standards
- GB/T 17241.6
- GB9113
Inspection and Test Standards
- GB/T 13927
- API 598
Industry Certifications
ISO 9001:2000CEULROHS
Installation and Application
- Installation
- Can be installed vertically or horizontally
- Recommended Applications
- Cold Water SystemsHot Water SystemsIndustrial PipelinesSewage PipelinesSewage Submersible Pumps
