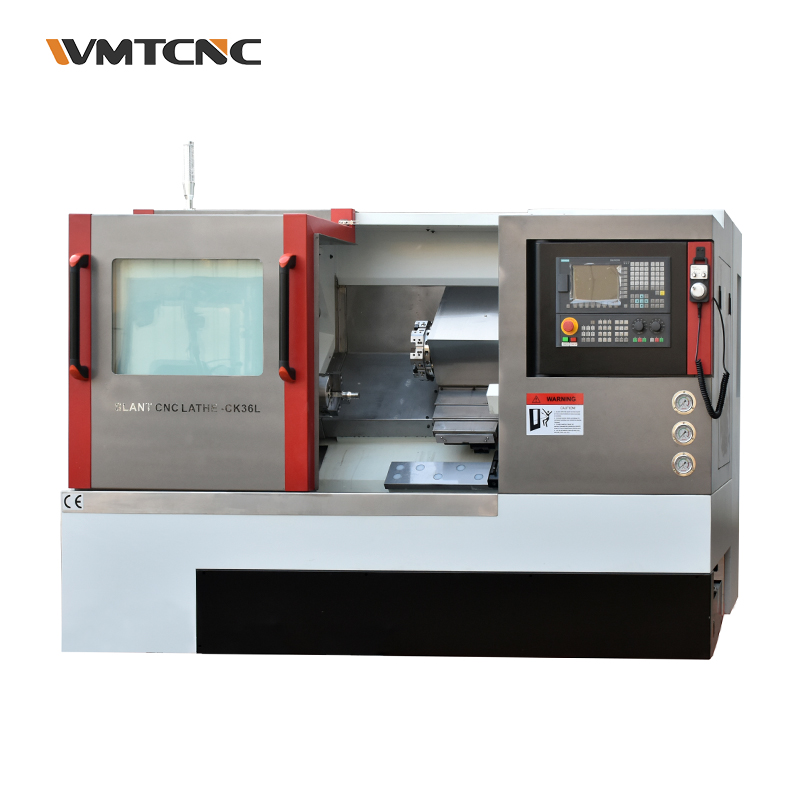

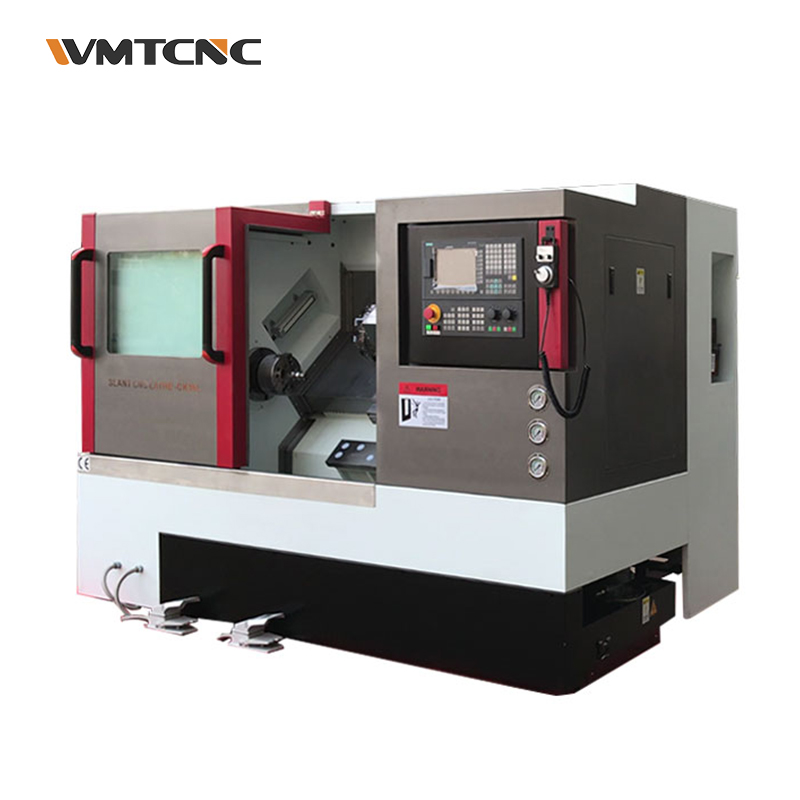

Slant Bed CNC Lathe Machine with Linear Guideways
This CNC lathe machine features a high-rigidity 45-degree slant bed and linear guideways. It is equipped with a high-precision ballscrew and an A2-5 spindle unit.
Technical Specifications
Overview
High-Precision Slant Bed CNC Lathe
This high-rigidity CNC lathe features a 45-degree slant bed design, engineered to provide superior stability, vibration damping, and efficient chip evacuation. Equipped with high-precision linear guideways and ballscrews, it delivers exceptional accuracy for turning, threading, and contouring operations. The machine is designed for industrial-grade performance, supporting versatile materials including steel, aluminum, and plastics.
Technical Specifications
Core Mechanical Components
- Linear Guideways (Taiwan)
- High Precision Ballscrews (Taiwan)
- Automatic Tool Turret
- Automatic Lubrication System
- Coolant System
- Bed Angle
- 45 degrees
- Spindle Unit
- A2-5
- Compatible CNC Systems
- FANUCSIEMENSGSK
Certifications & Safety
Compliance
CE Certified
Safety and Maintenance
- Enclosed operator workspace
- Integrated chip conveyor
- Safety warning systems
