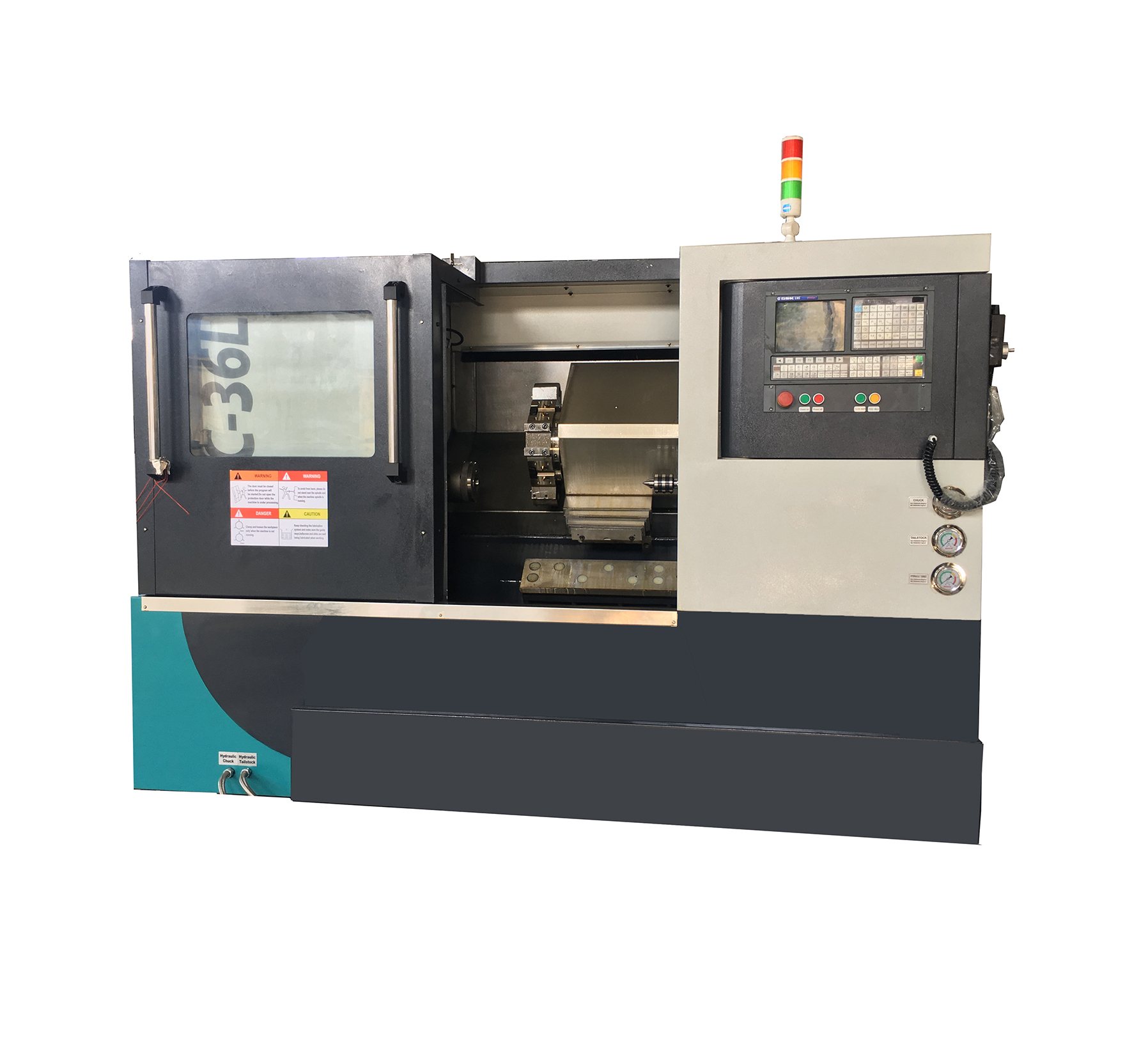

Slant Bed CNC Lathe
This CNC lathe features a 45° slant bed for easy chip removal and a compact, aesthetically pleasing design. The hydraulic turret provides fast and accurate tool changes, reducing processing time.
Technical Specifications
Overview
High-Performance Slant Bed CNC Lathe
This CNC lathe features a high-rigidity 45-degree inclined bed structure, ensuring smooth chip discharge and a compact, stable footprint. Designed for high-precision machining, it effectively handles inner and outer diameters, end faces, tapers, arcs, and threads. The machine is equipped with a fully enclosed protective cover for operator safety and supports multiple advanced control systems like GSK, KND, SIEMENS, and FANUC.
Key Features
Standard Features
45° Slant BedHydraulic ChuckHydraulic TailstockFully Enclosed GuardingLinear Guide Rails
- Compatible Control Systems
- GSKKNDSIEMENSFANUC
Performance Metrics
Key Performance Indicators
4,000 rpm
Max Spindle Speed
5.5 KW
Max Motor Power
20,000 mm/min
Rapid Travel Speed
Technical Specifications
Machining Capacity
| Parameter | Value |
|---|---|
| Max Swing Over Bed | 360mm |
| Max Turning Diameter | 210mm |
| Max Turning Length | 500 / 750mm |
| Spindle Bore | 56mm |
Tailstock Details
- Quill Diameter: 60mm
- Travel: 80mm
- Taper: MT4
Physical Dimensions
Physical Specs
- Net Weight: 2700kg
- Packing Size: 2630 x 1550 x 1750mm
