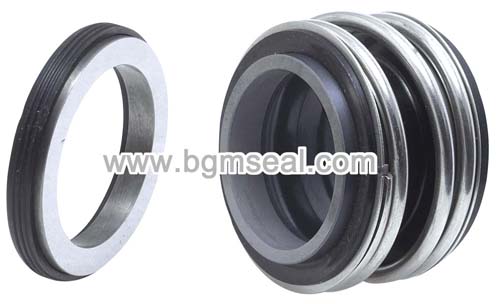

Single Spring Mechanical Shaft Seal
This mechanical shaft seal utilizes a single spring to maintain consistent sealing force. It is suitable for applications with pressures up to 10 kg/cm2, temperatures from -20°C to 200°C, and speeds up to 25m/s, with a diameter range of 10mm to 80mm.
Technical Specifications
Product Overview
High-Performance Single Spring Seal
This single spring mechanical shaft seal is engineered for durability and reliable performance in rotating equipment such as pumps, mixers, and compressors. It features a robust design capable of handling significant pressure and a broad temperature range, making it suitable for demanding industrial environments. The versatile material options for seal faces and O-rings ensure excellent chemical compatibility and extended service life.
Operational Limits
Operational Performance
10 kg/cm2
Max Pressure
25 m/s
Max Velocity
- Temperature Range
- -20°C to 200°C
- Shaft Diameter Range
- 10mm - 80mm
Materials
O-Ring Materials
- NBR
- Viton
- EPDM
- FEP
- AFLAS
- Seal Face Options
- CarbonStainless SteelSilicon CarbideTungsten CarbideCeramic
