Technical Specifications
Product Overview
High-Efficiency Energy Conversion

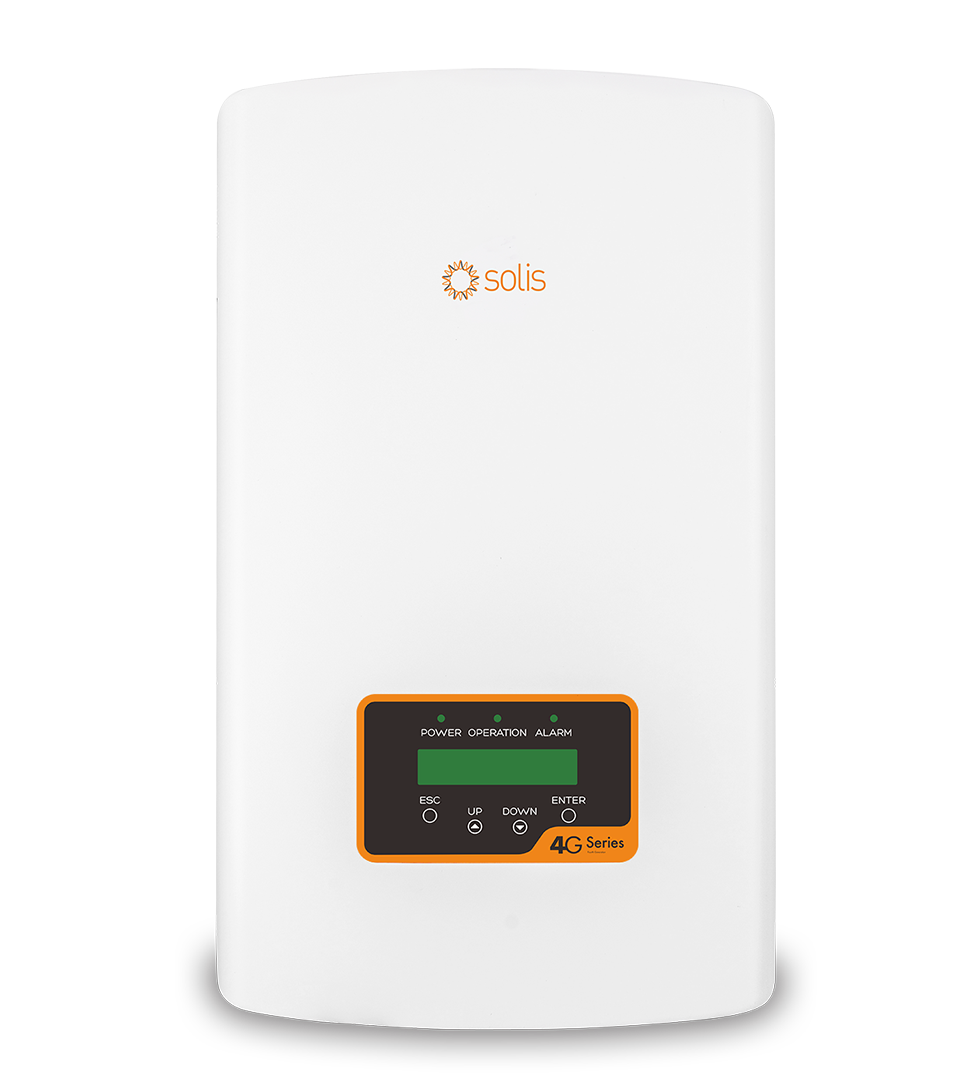

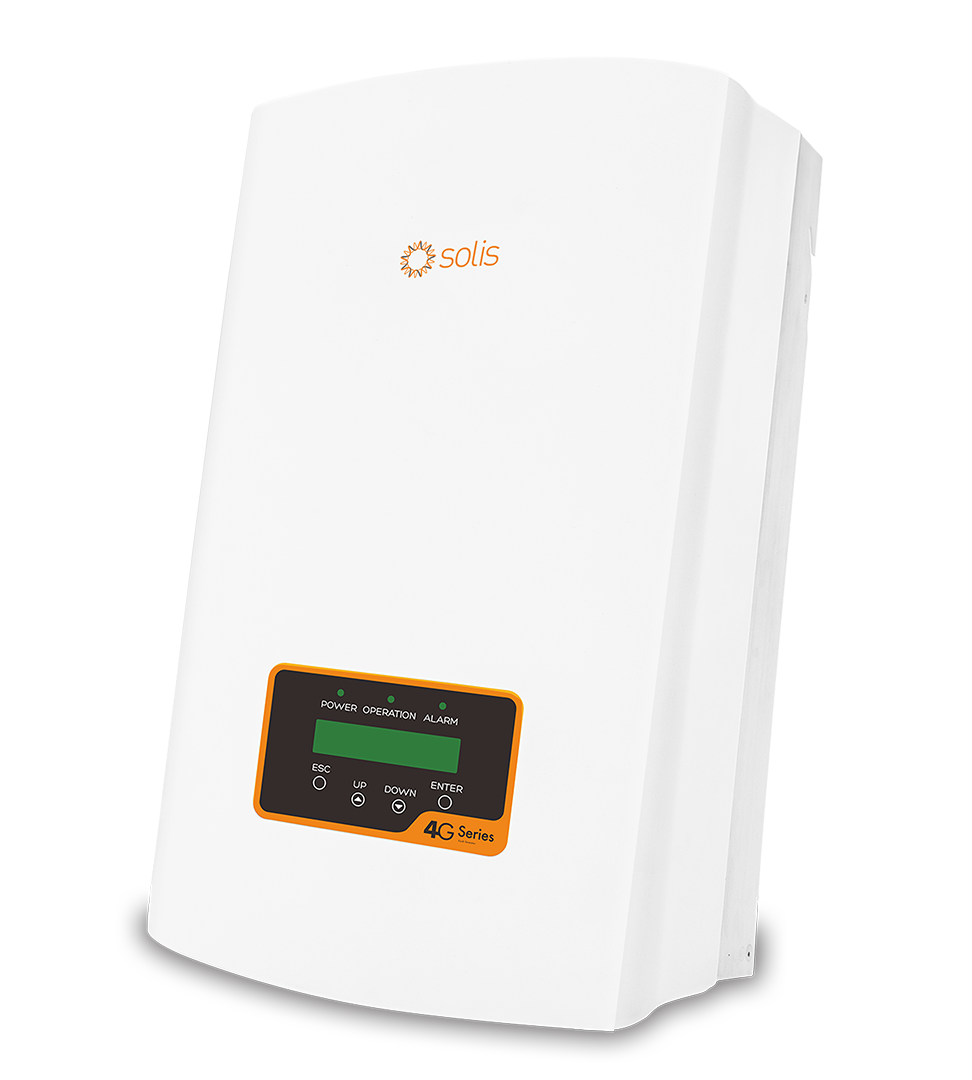

This single-phase string inverter is designed specifically for residential and small-scale commercial solar photovoltaic installations. It features a compact, ultra-thin four-layer circuit board design that optimizes reliability and minimizes installation risks. With advanced MPPT technology and high-frequency switching, this unit effectively converts DC solar power into usable AC energy for grid-tied applications.
Performance
Power Output Range
2.5 kW
Minimum Output
6 kW
Maximum Output
- Key Features
- High EfficiencyGrid-Tied ReadyUltra-High Frequency SwitchingMPPT Technology
System Integration
Communication and Interface
- Integrated 4G communication capabilities
- Advanced remote monitoring
- User-friendly interface with LCD display
- Comprehensive system protection functions
Physical Design
Design Specifications
| Feature | Specification Detail |
|---|---|
| Phases | Single-Phase |
| PCB Design | Ultra-thin four-layer board |
| Application | Residential / Small Commercial |
