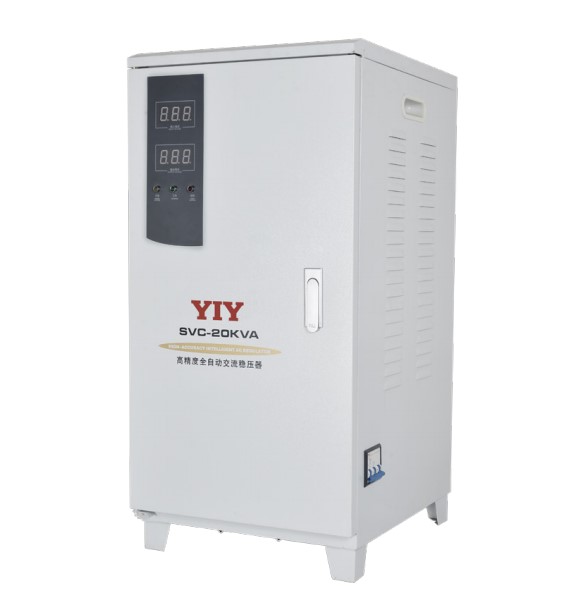

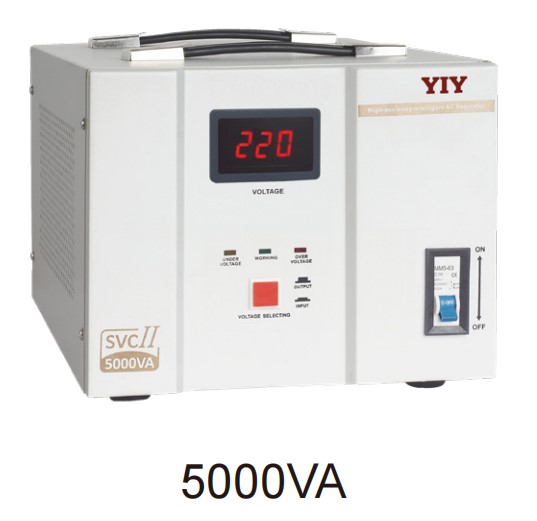

Single-Phase Servo Voltage Stabilizer, 500VA-30kVA
This single-phase servo voltage stabilizer provides automatic voltage regulation. It protects equipment from brownouts and over-voltage, ensuring stable performance.
Technical Specifications
Product Overview
Professional Servo Voltage Regulation
The SVC series single-phase servo voltage stabilizer provides precise, automatic voltage regulation to protect sensitive electronic equipment from power fluctuations. Utilizing an advanced servo motor-driven system, these units ensure consistent output even in areas with sharp voltage variations. Designed for versatility, they are suitable for a broad spectrum of applications, including industrial production, medical facilities, and household appliances.
Key Features
System Options
- Selectable time delay (3-6s or 3-6min)

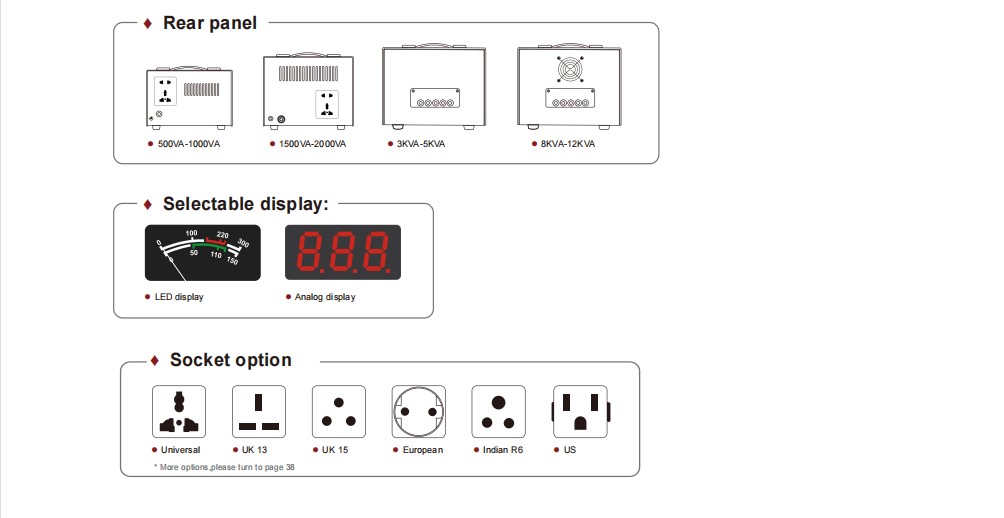

- LED/LCD/Analog display options
- Wide input voltage range
- Multiple socket configurations (Universal, UK, European, US)
- Protection Mechanisms
- Over Voltage ProtectionUnder Voltage ProtectionShort Circuit ProtectionOverload ProtectionOver Temperature Protection
Technical Specifications
Performance Metrics
98 %
Efficiency
50 dB
Max Acoustic Noise
50 Hz/60Hz
Frequency
Operating Environment
| Parameter | Range |
|---|---|
| Temperature | -5°C to 40°C |
| Relative Humidity | 20% to 90% |
Capacity Range
Available Capacities

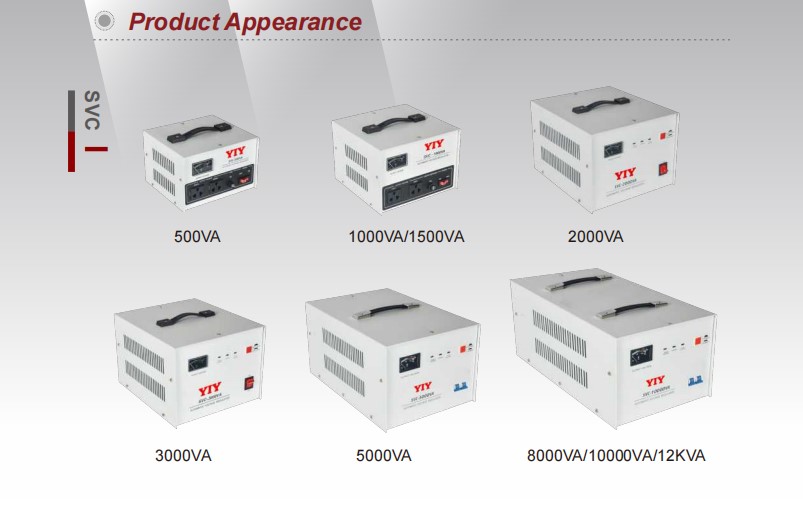

500VA1000VA1500VA2000VA3000VA5000VA8000VA10KVA12KVA15KVA20KVA30KVA
