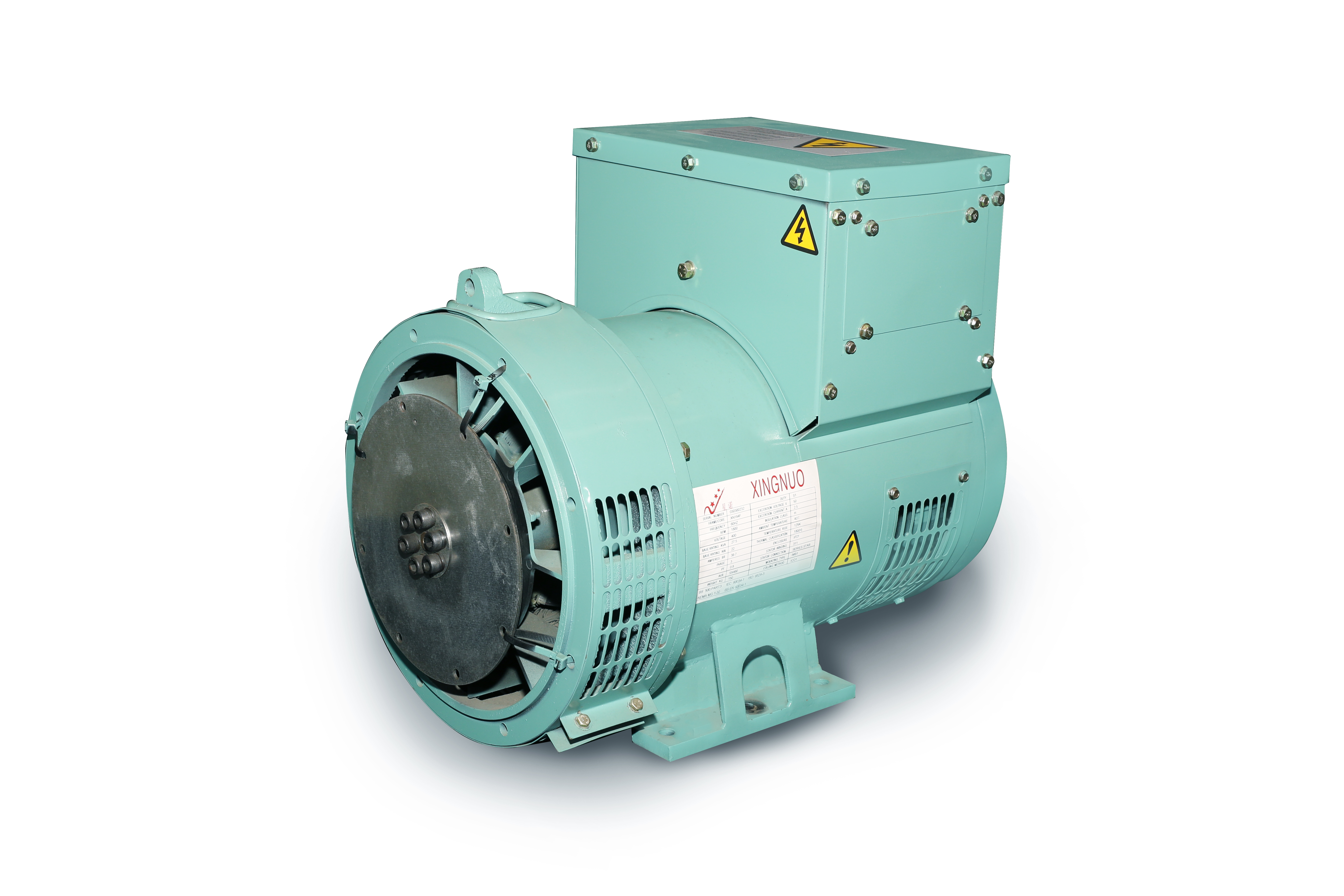

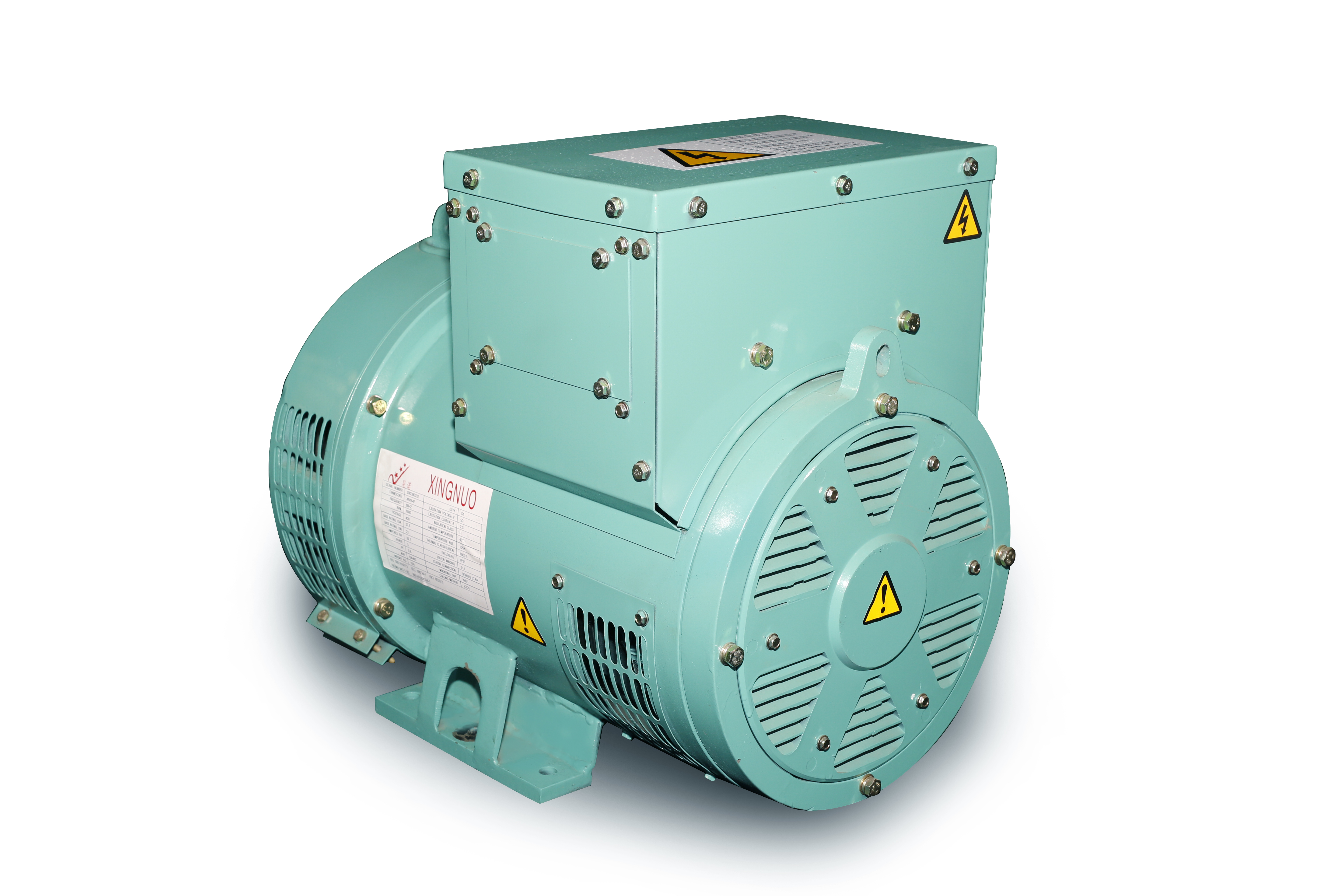

Single Phase Power Generator, 8-200 KVA
This single-phase generator provides a power output ranging from 8 to 200 KVA. Designed for industrial and commercial use, it ensures a stable and consistent power supply for critical operations and backup during outages.
Technical Specifications
Product Overview
High-Performance Power Generation
This single-phase power generator is engineered with a high-quality, brushless construction designed for reliable performance in industrial and commercial applications. It features advanced design elements such as low reactance and a 2/3 winding pitch, ensuring compatibility with nonlinear loads and high operational efficiency. Protected by a VPI Global varnished system, this unit is built for durability and consistent power delivery.
Technical Specifications
Performance Metrics
27.5 KVA
Base Rating
22 KW
Power Output
39.7 A
Amperage
Electrical Configuration
| Parameter | Value |
|---|---|
| Frequency | 50 Hz |
| Voltage | 400 V |
| Stator Winding | Type 311 |
| Stator Connection | Series Star |
| Excitation Current | 2.5 A |
Operational & Environmental
Environmental Specifications
- Enclosure Rating: IP21
- Thermal Classification: 180(H)
- Modulation Class: H
- Cooling Method: IC01
- Mounting Type: IM301
- Build Standards & Compliance
- BS 500 PART3NEMA MG 132BS EN 60034-1
