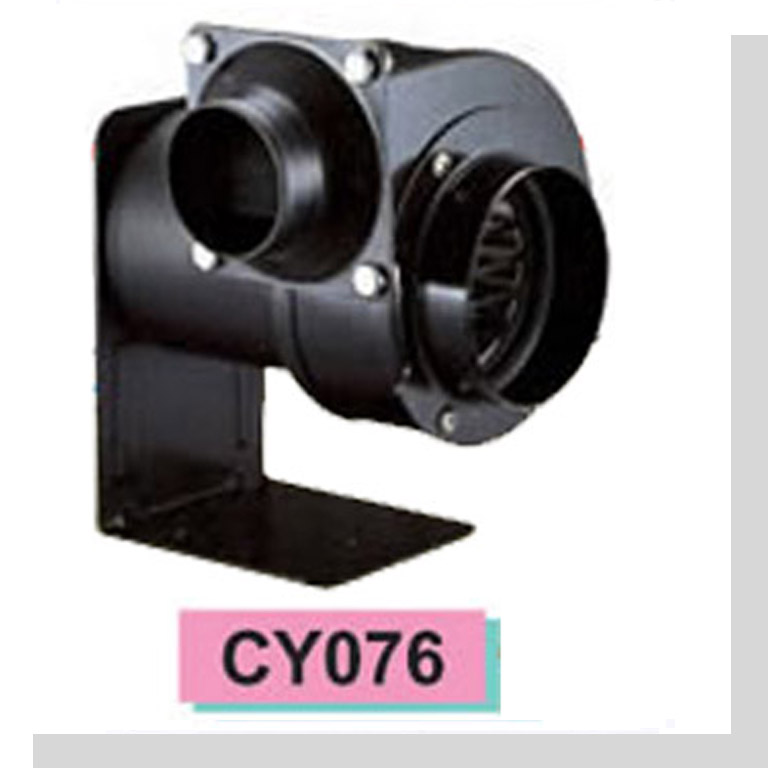

Single Phase Centrifugal Fan
This single-phase centrifugal fan is designed for industrial applications requiring efficient air movement. It delivers high airflow with low noise levels, making it suitable for a variety of ventilation and cooling applications.
Technical Specifications
Overview
High-Efficiency Centrifugal Fan
This single-phase centrifugal fan is engineered for reliable air circulation in demanding industrial and commercial environments. Designed for efficiency, it provides consistent ventilation and exhaust capabilities suitable for large-scale architectures, restaurants, and industrial facilities. Its compact, robust construction ensures ease of installation and long-term durability in various HVAC and machinery applications.
Technical Specifications

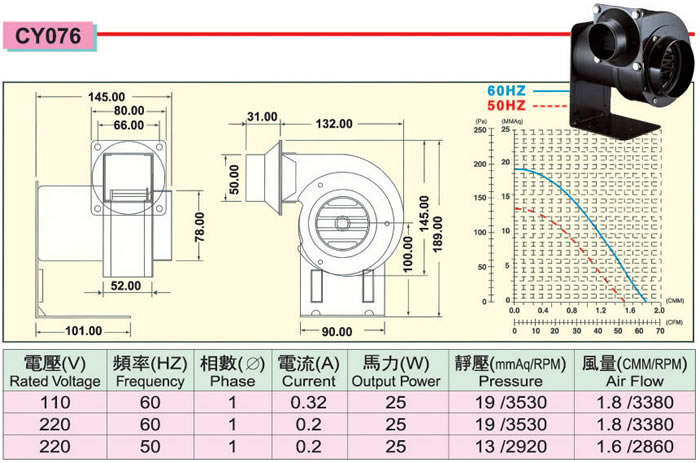

Performance Matrix
| Voltage (V) | Frequency (Hz) | Current (A) | Air Flow (CMM) | Pressure (mmAq) |
|---|---|---|---|---|
| 110 | 60 | 0.32 | 1.8 | 19 |
| 220 | 60 | 0.2 | 1.8 | 19 |
| 220 | 50 | 0.2 | 1.6 | 13 |
Output Power
25 W
Output Power
Insulation Class
Class E
- Dimensions
- 3 inch x 1.5 inch (L)
- Weight
- 2 kg
- Pole Count
- 2
Certifications & Compliance
- Certifications
- CE
Applications
Suitable For
- Indoor ventilation
- Air-exchange systems
- Industrial exhaust
- Mining facilities
- Large-size architectures
- Guesthouses
- Restaurants
