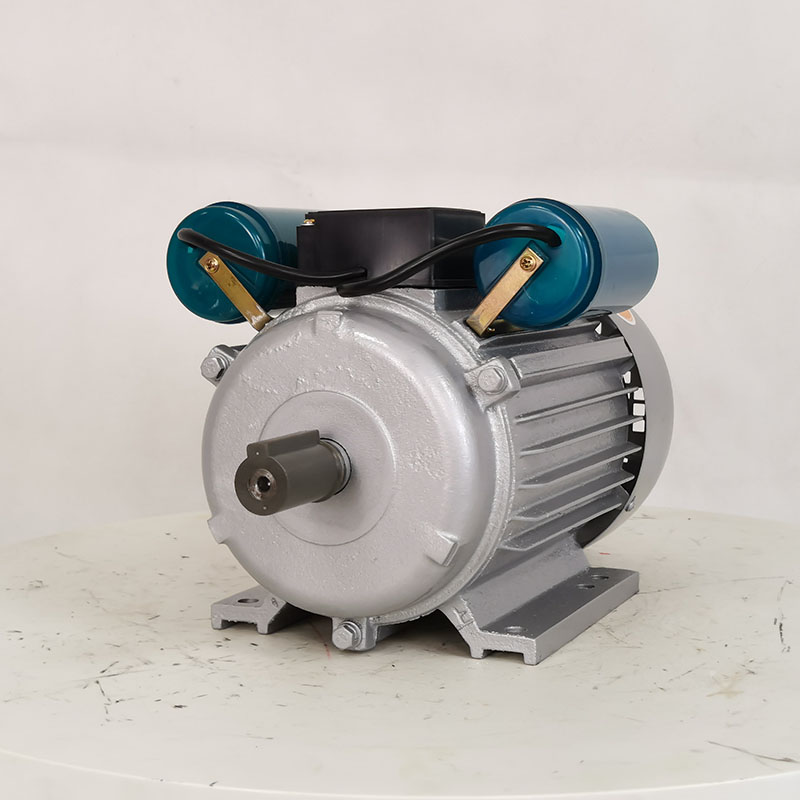

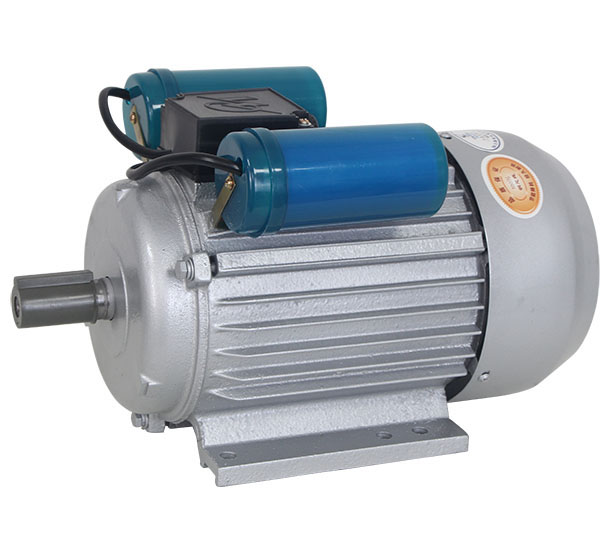

Single Phase Asynchronous Motor with Double Capacitor
This single-phase asynchronous motor utilizes a double capacitor design for improved starting torque and efficient operation. It features a durable construction and is suitable for a variety of applications.
Technical Specifications
Overview
High-Efficiency Asynchronous Motor
This single-phase double-capacitor asynchronous motor is engineered for reliability and energy efficiency. Featuring a 100% pure copper core and a reinforced cold-rolled silicon steel stator, it is designed for stable operation even at lower voltages like 170V. With an IE4 energy efficiency rating and a hardened rotor shaft, this motor is an ideal choice for demanding industrial and commercial applications requiring superior overload capacity.
Technical Specifications
Performance Metrics
1.8 kW
Power Output
2,800 r/min
Speed
11.3 A
Rated Current
4 IE
Efficiency Class
Motor Characteristics
- Phase: Single-phase
- Type: Double-value Asynchronous
- Frequency: 50Hz, 60Hz
- Voltage: 220V, 240V
- Number of capacitors: 2
- Chassis Material: Cast Iron

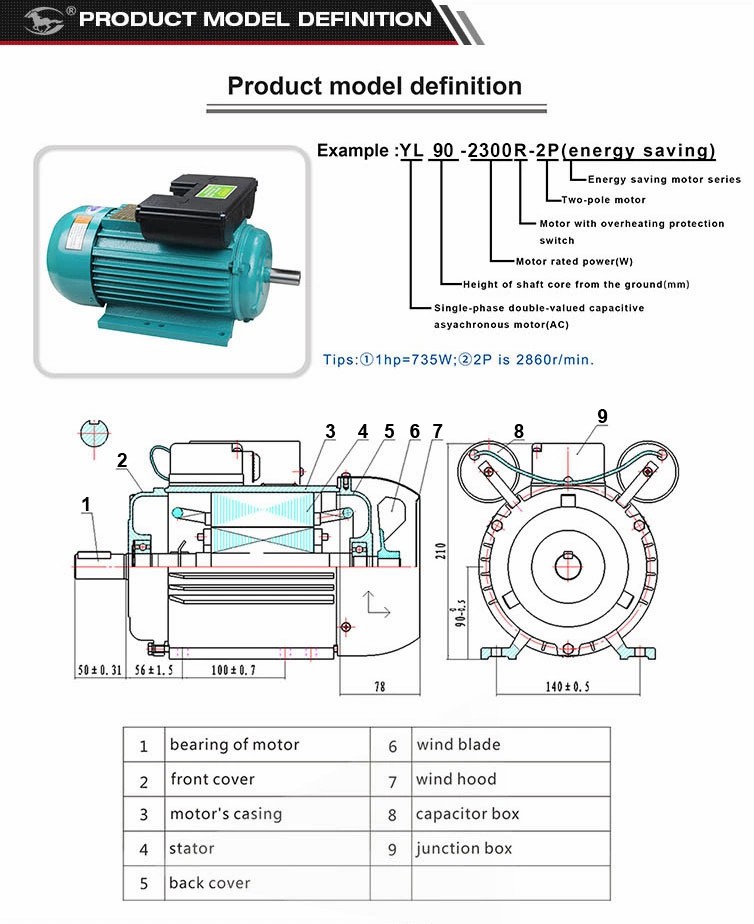

Physical Dimensions
Dimensions & Build
| Attribute | Value |
|---|---|
| Weight | 29kg |
| Axis Diameter | 24mm |
| Body Size (L*H) | 410mm*220mm |
| Mounting Hole Pitch | 140mm/100mm/125mm |
| Stator/Rotor Length | 130mm |
Certifications & Standards
- Industry Certifications
- CCCCEIP44
