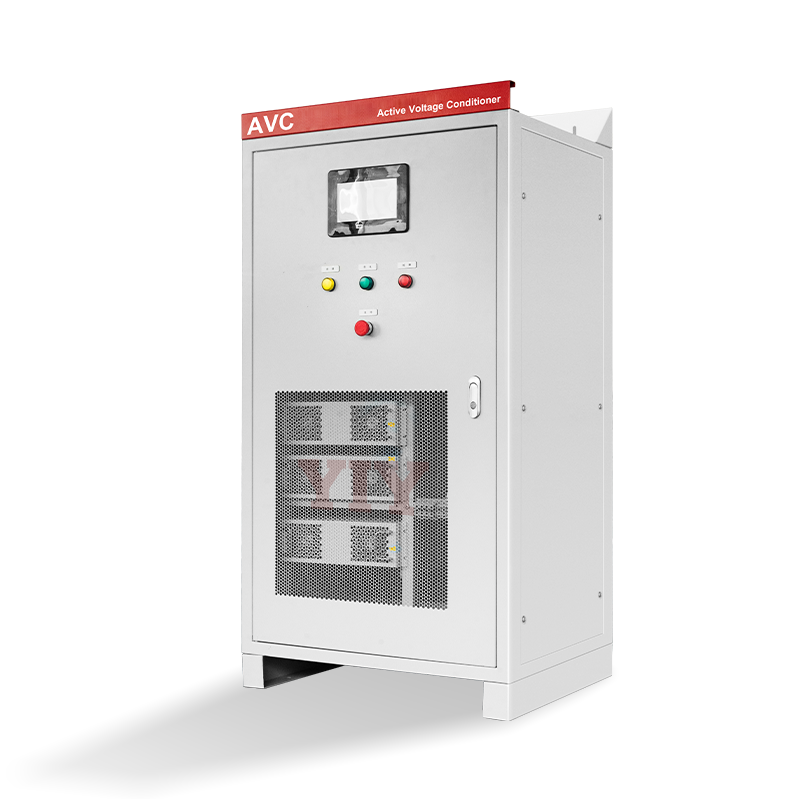

Advanced Voltage Protection

The YIY-AVC is an inverter-based system designed to protect sensitive industrial and commercial loads from voltage disturbances. It provides fast and accurate correction for voltage sags and surges, alongside continuous regulation and load voltage compensation. This system is optimally engineered to ensure equipment immunity from power quality events on the supply network without the need for batteries.

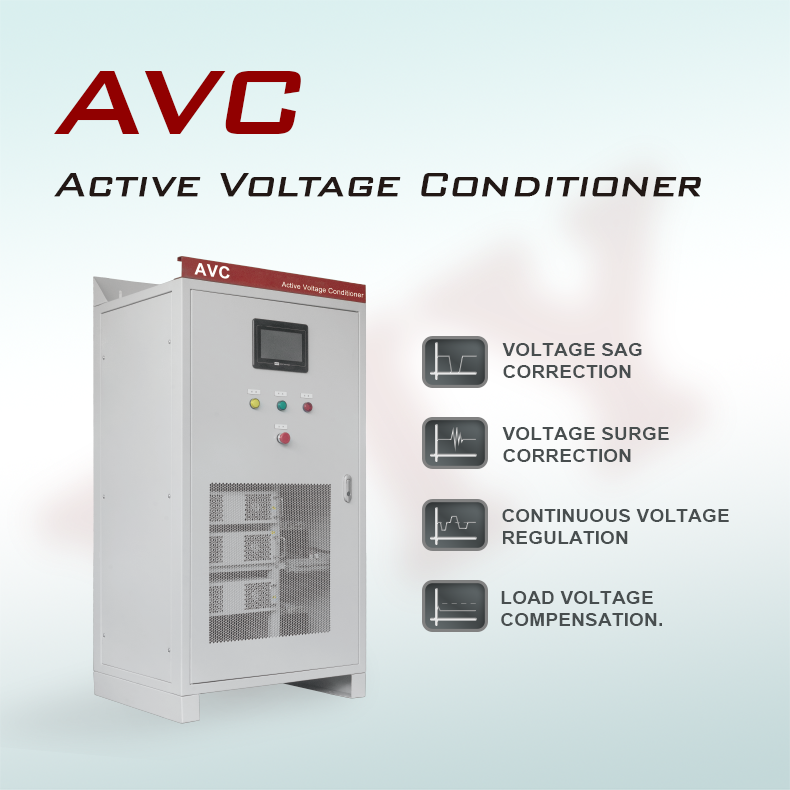

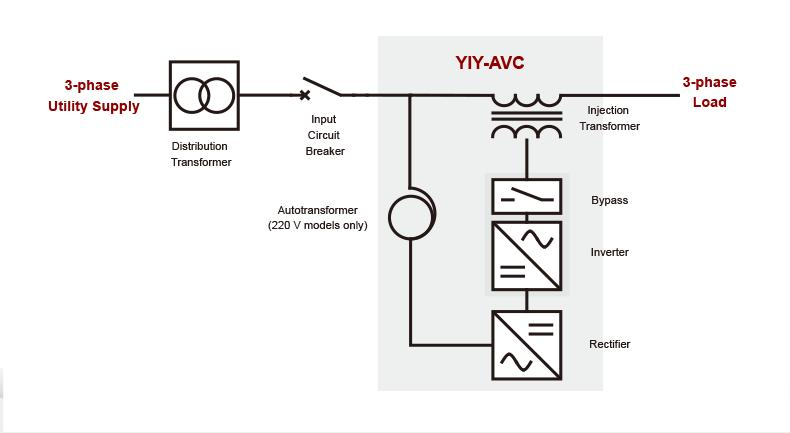

Active Voltage Conditioner Functional Diagram

Key Performance Metrics

Performance Highlights

95 %

Typical Efficiency

0.5 ms

Transfer Time to Bypass

0.5 %

Regulation Accuracy

600 ms

Control Ride Through

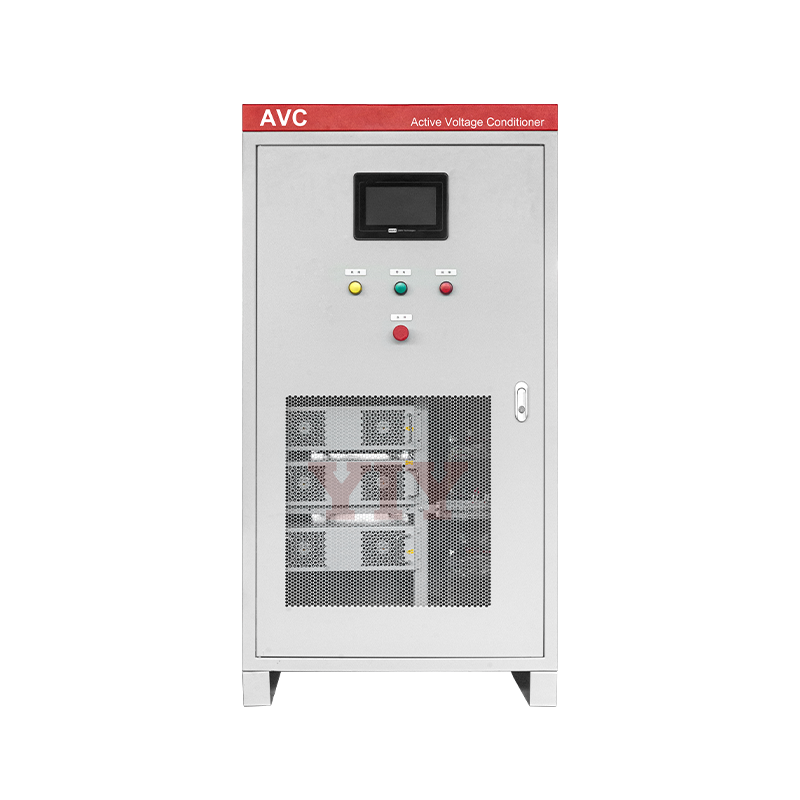

Technical Specifications

Available Power Ratings

10 kVA
15 kVA
20 kVA
30 kVA

Utility Input Range: 187V - 253V (for 220V nominal)
Frequency Range: 50Hz/60Hz ±5Hz
Inverter Overload Capacity: 150% for 21 seconds (once every 500s)
Total Harmonic Distortion (THDv): < 3%

Operational Features

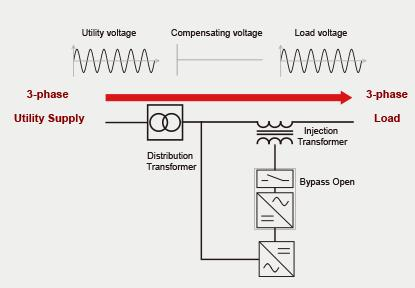

Redundant Internal Bypass

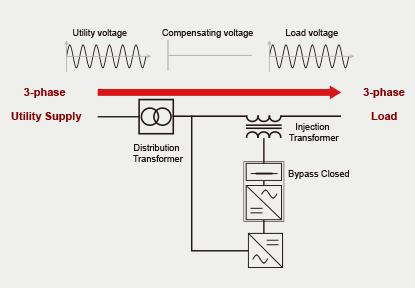

In the event of an overload or internal fault, a redundant internal bypass system ensures the load continues to be supplied directly from the utility without interruption. The transfer time to bypass is less than 0.5ms.

Core Functions: Voltage Sag CorrectionSurge CorrectionContinuous Voltage RegulationLoad Voltage Compensation

Protection & Interface

Safety Protections

Input Over/Low Voltage Protection
Output Over/Low Voltage Protection
Input Over Current Protection
Transformer Over-heat Protection
Output Overload Protection

Control Interface: 7-inch Touch Screen with parameter control, fault logs, and history curves

Environmental Standards

Ingress Protection

IP20

Operating Temperature: 0°C to 50°C (Derating above 40°C)
Cooling System: Forced ventilation (Inverter) / Natural convection (Transformer)
Acoustic Noise: < 75dBA @ 2 meters
