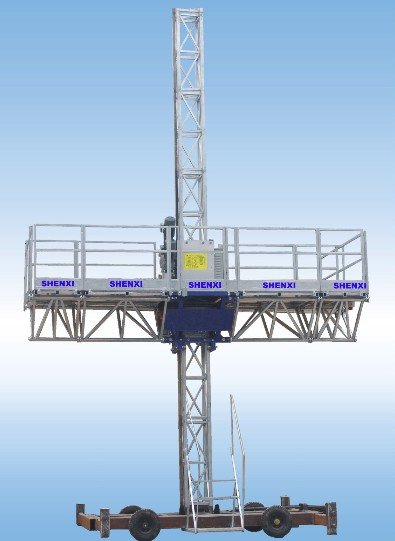

Single Mast Climbing Work Platform with Balance Device
This mast climbing work platform is designed for efficient aerial work, incorporating technological advancements for enhanced performance. It features a balance device to maintain stability and ensure safety during vertical movement.
Technical Specifications
Product Overview
Versatile Vertical Access Solution
This climbing work platform offers a flexible and efficient solution for vertical access in construction and maintenance projects. Designed with a modular structure, the width and length can be adjusted to meet specific job site requirements, while the mast sections, rack, and pinion components are interchangeable with standard building hoists. The platform eliminates the need for a foundation, allowing for rapid deployment and easy relocation between working sites.
Performance Metrics
Key Performance Metrics
1,000 kg
Rated Capacity (Single Mast)
8.3 m/min
Rated Lifting Speed
100 m
Max Working Height
Technical Specifications
Configuration Comparison
| Feature | Single Mast | Double Mast |
|---|---|---|
| Rated Capacity | 1000 kg | 1700 kg |
| Platform Length | 8.67 m | 20.34 m |
| Max Width | 2.5 m | 2.5 m |
| Motor Power | 2×5.5 kW | 4×5.5 kW |
- Standard Section Size
- 1508×500×500 mm
- Max Height (Stand-alone)
- 7.5 m
Motor & Electrical
Motor Specifications
- Motor Type: YZZ 132 S1-4
- Rated Rotation Speed: 1400 r/min
- Rated Current: 13.5 A
- Brake Torque: 100 N.m
Design Features
- Key Design Features
- Modular DesignBalance Device IncludedFoundation-FreeInterchangeable Parts
