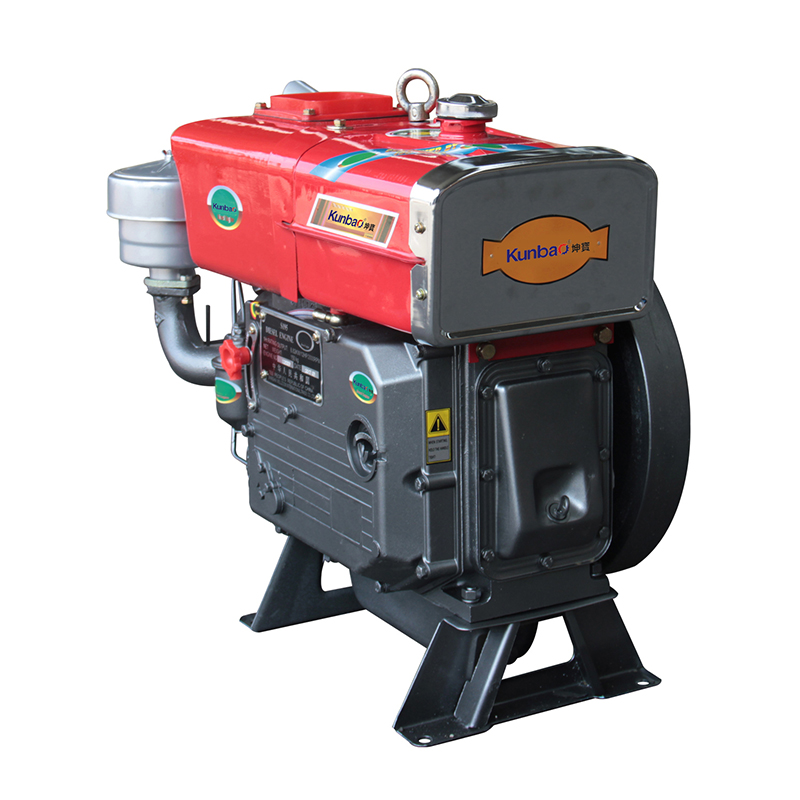

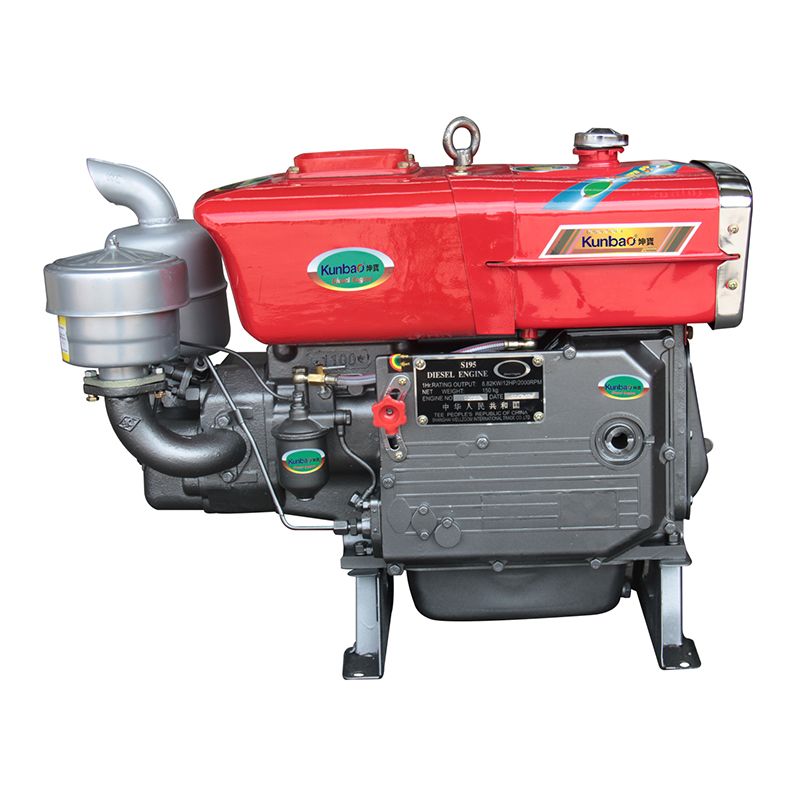

Single-Cylinder Water-Cooled Diesel Engine 8.82kW
This single-cylinder, water-cooled diesel engine is designed for various power generation and mechanical applications. It delivers a rated output of 8.82kW (12HP) at 2000 RPM.
Technical Specifications
Product Overview
Robust Single-Cylinder Power Unit
This water-cooled diesel engine is engineered for versatility and reliability in demanding environments. With a compact horizontal four-stroke design, it serves as an ideal power source for agricultural machinery, small-scale power generation, and mobile equipment. Its robust construction ensures long-lasting performance and efficient operation under various load conditions.
Technical Specifications
Performance Metrics
8.82 kW
Nominal Power
2,000 rpm
Nominal Speed
150 kg
Net Weight
Engine Details
| Feature | Specification |
|---|---|
| Model | S195 |
| Cylinder Diameter | 95mm |
| Piston Stroke | 115mm |
| Combustion Mode | Swirl-Type |
| Cooling System | Water-Vaporization |
Operating Parameters
- Stable Speed Regulating Rate: ≤8%
- Instantaneous Speed Regulating Rate: ≤12%
- Starting Mode: Hand Starting
Configuration Options
- Available Variants
- S195N (Radiator with light)S195M (Electric start)S195NM (Radiator, light, electric start)S195W/O (No fuel/water tank)
