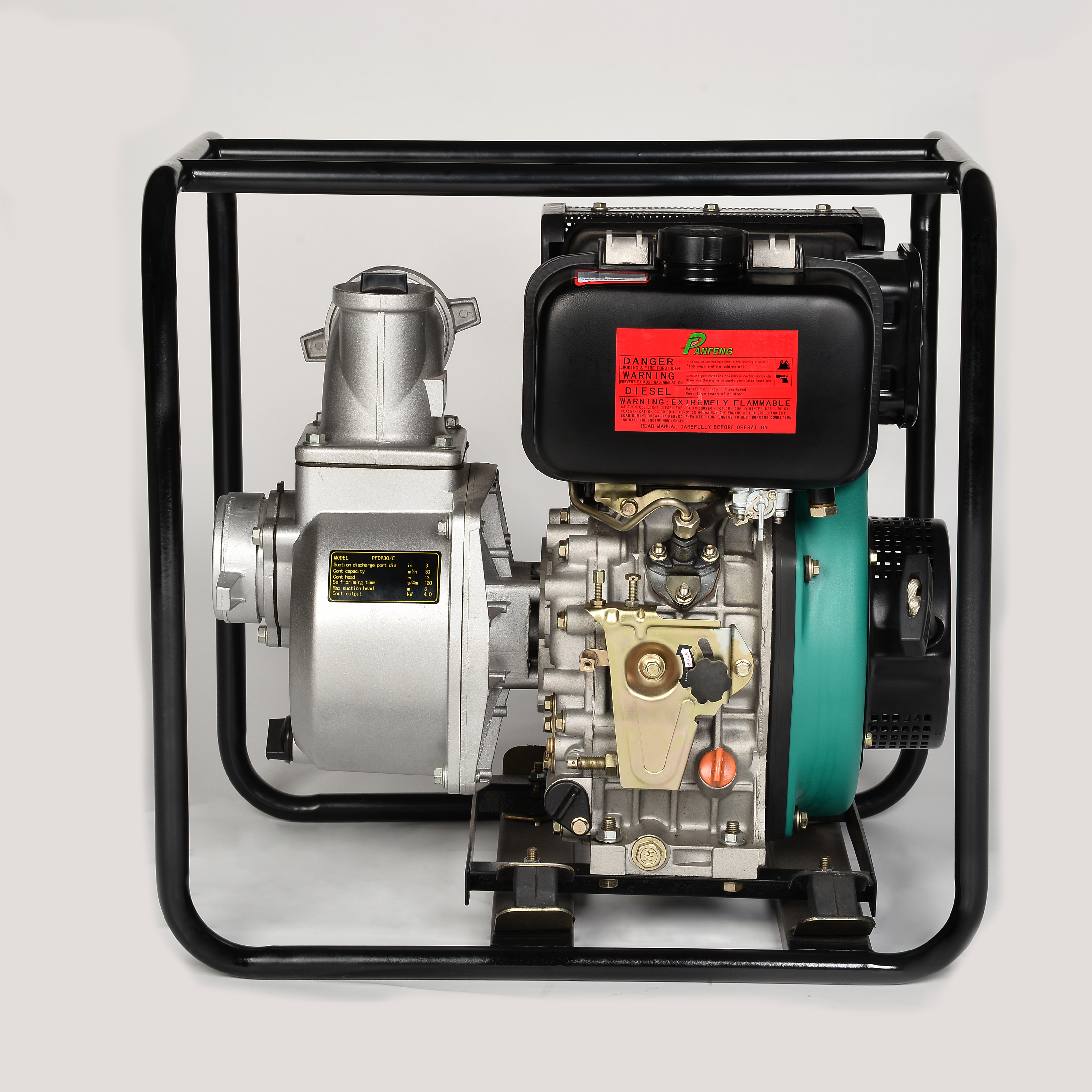

Single-Cylinder Diesel Water Pump
The single-cylinder diesel water pump is designed for various water pumping tasks. It has a 3-inch suction and discharge port, a continuous capacity of 30 m³/h, and a continuous head of 13 meters.
Technical Specifications
Product Overview
Robust Performance for Demanding Environments
The PDP30 is a high-performance single-cylinder diesel water pump engineered for reliable fluid transfer in industrial and commercial settings. Featuring a 3-inch port diameter, it achieves a consistent flow capacity of 30 cubic meters per hour. Its self-priming capability and rugged engine design ensure longevity and operational efficiency for your liquid handling needs.
Technical Specifications
Key Performance Metrics
30 m³/h
Continuous Capacity
13 m
Continuous Head
4 kW
Continuous Output
Suction and Port Details
| Parameter | Value |
|---|---|
| Port Diameter | 3 inch |
| Max Suction Head | 8 m |
| Self-Priming Time | 120 s/4m |
Operation and Safety
Operational Guidelines
- Follow break-in period: 20 hours at low speed and low load
- Use light diesel fuel (Summer: #0, Winter: #-10 or #-20)
- Use lubrication oil classification CC or CD
- Stop engine before refueling
- Read manual carefully before operation
- Safety Certifications and Warnings
- Smoking & Fire ProhibitedAvoid Exhaust InhalationKeep away from childrenFlammable Material Warning
