Technical Specifications
Overview
Robust Industrial Diesel Engine

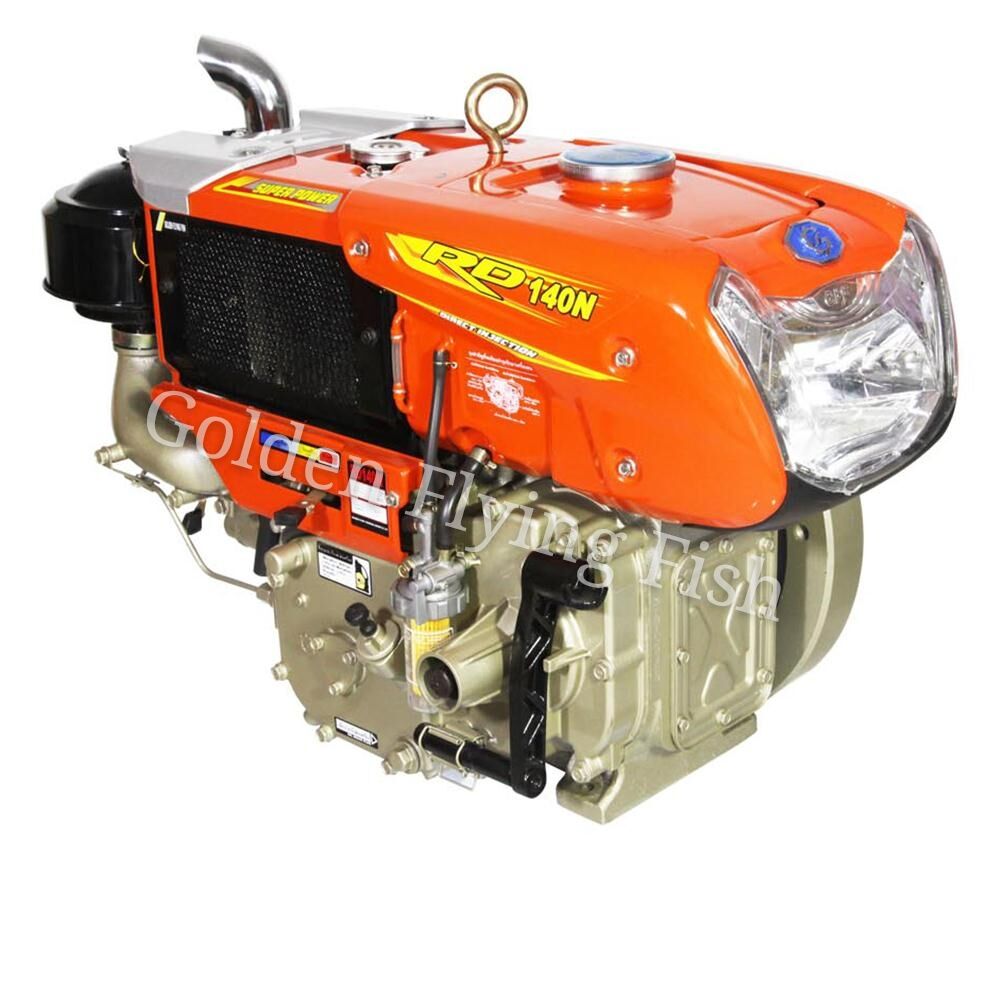

The RD140N is a heavy-duty, single-cylinder 4-stroke diesel engine designed for reliable power generation in industrial and agricultural settings. It features a water-cooled system and direct injection technology to ensure efficient combustion and optimal fuel economy. With a high power output, this engine is built for durability and ease of maintenance in demanding environments.
Technical Specifications
Performance Metrics
14 kW
Maximum Output
12.5 kW
Continuous Output
2,400 rpm
Rated Speed
Engine Configuration
| Feature | Value |
|---|---|
| Type | Single-cylinder, Horizontal, 4-stroke, Water-cooled |
| Displacement | 0.739 L |
| Bore x Stroke | 98x98 mm |
| Combustion System | Direct Injection |
| Starting Method | Hand crank (Electric start option) |
Fluid Capacities and Efficiency
- Specific Fuel Consumption: 250 g/kW.h
- Lubricating Oil Capacity: 3 L
- Cooling Water Capacity: 2.3 L
Physical Dimensions
Dimensions and Weight
- Net Weight: 115 kg (117 kg)
- Dimensions (LxWxH): 825x380x498 mm
Features
- Key Highlights
- Water-cooledDirect InjectionHeavy-duty constructionIntegrated Head Lamp
