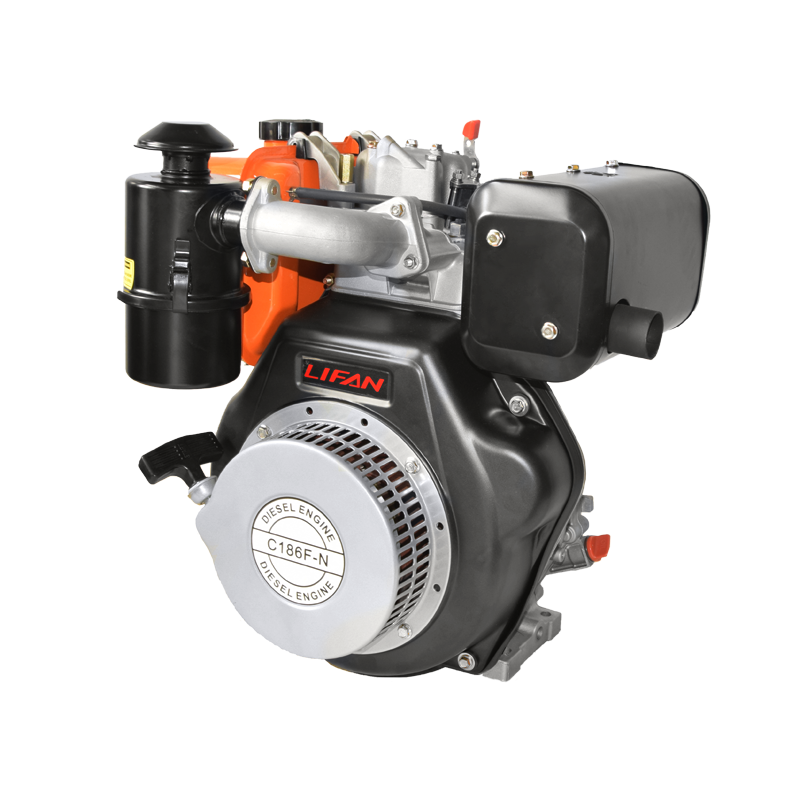

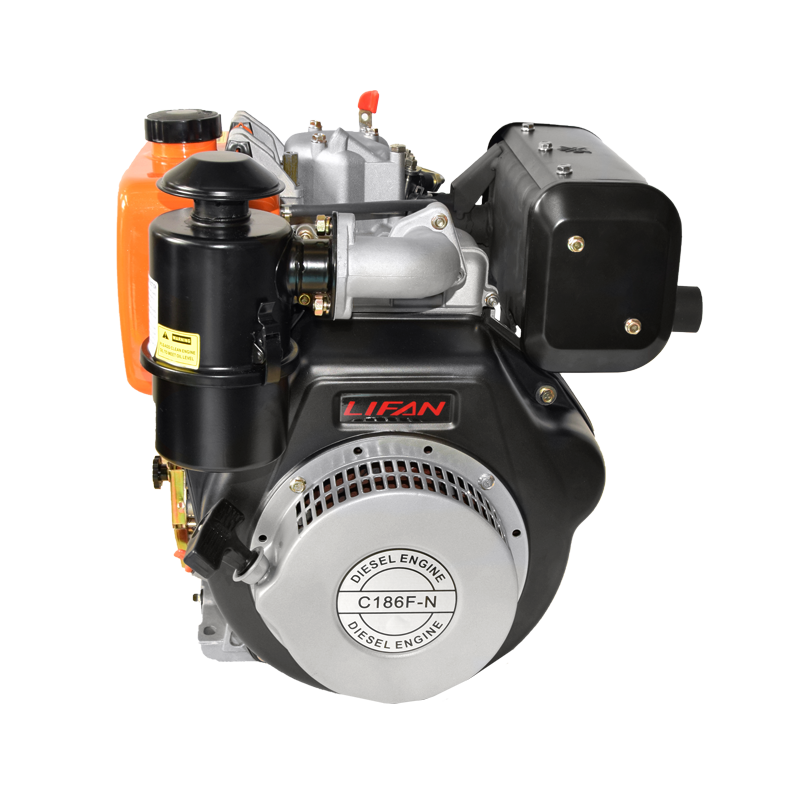

Single-Cylinder Air-Cooled Diesel Engine
This single-cylinder, air-cooled diesel engine is designed for power generation applications. It offers efficient combustion and durable construction for long-lasting performance.
Technical Specifications
Overview
Robust Diesel Power Solution
This single-cylinder, air-cooled, four-stroke diesel engine is engineered for reliability and efficient performance in various industrial applications. Featuring a direct injection system and a durable construction, it delivers consistent power output for generators, water pumps, and other heavy-duty equipment. Its compact design and recoil starter make it an accessible and dependable choice for professional power generation needs.
Engine Performance
- Engine Configuration
- Single-cylinder, vertical, 4-stroke, direct injection, air-cooled
- Displacement
- 418 cc
- Compression Ratio
- 19:1
- Engine Speed
- 1800 r/min
Power Output
Power & Torque
7.5 kW
Max Output Power
6.3 kW
Rated Output Power
37 N.m
Max Torque
Technical Specifications
Tank & Lube Capacities
- Fuel tank capacity: 5.5 L
- Lube capacity: 1.65 L
- Specific Fuel Consumption
- ≤280 g/kW.h
- Starter System
- Recoil starter
Logistics
Dimensions & Weight
| Attribute | Value |
|---|---|
| Net Weight | 42 kg |
| Packing Size | 525 x 515 x 580 mm |
- Container Loading (20GP/40GP/40HQ)
- 176 / 352 / 352
