Technical Specifications
Product Overview

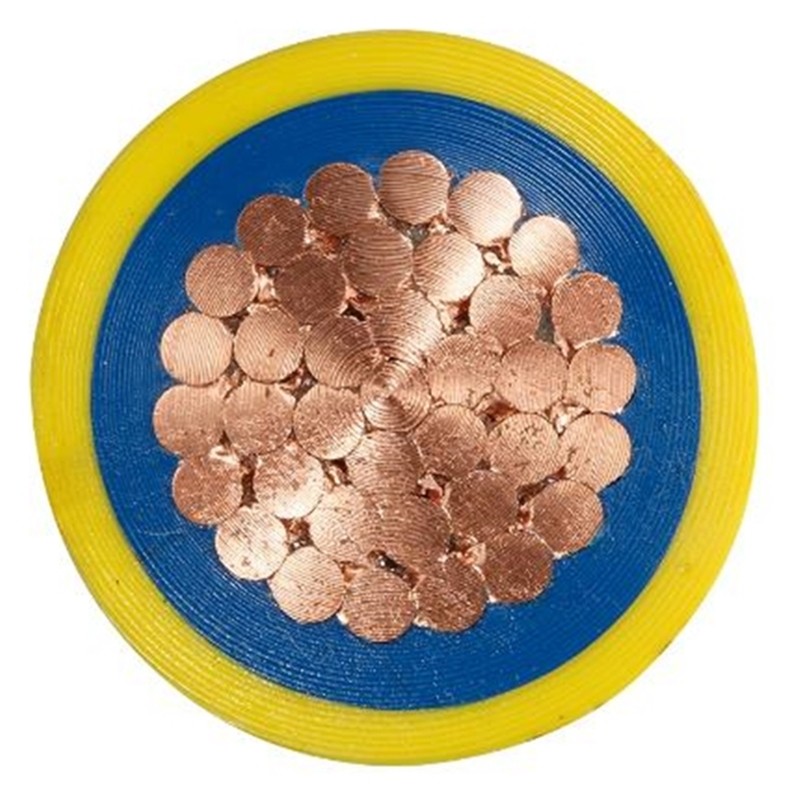

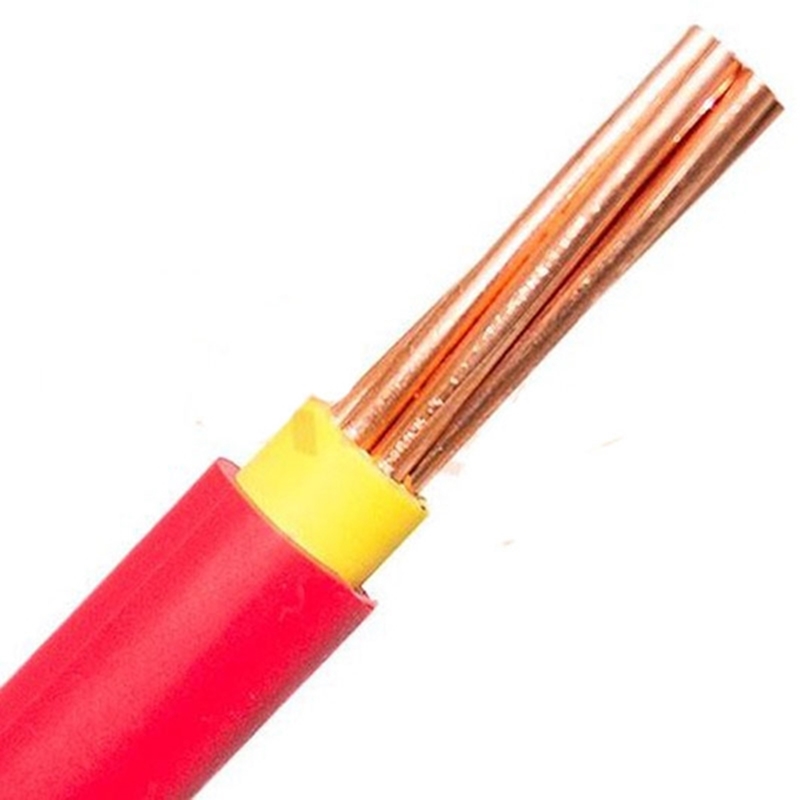

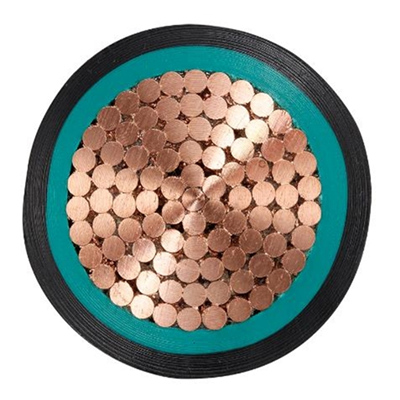

Single Core PVC Insulated Electrical Wire
This single-core PVC insulated electrical wire, available in H05VV-U, H05VV-R, and NYM configurations, is designed for reliable electrical power transmission and distribution. Featuring a high-quality plain annealed copper conductor and robust PVC insulation, it offers excellent resistance to wear, oil, acid, and alkali. Suitable for general-purpose internal wiring, this cable ensures safety and durability in a wide range of electrical installations.
Technical Specifications
- Conductor Material
- Plain annealed copper wires (solid class 1 or strand class 2)
- Insulation/Sheath Material
- Polyvinyl Chloride (PVC)
- Voltage Rate
- 300/500V (U0/U)
- Available Sizes
- 1.5 - 240 mm²
- Working Temperature
- -15°C to +70°C (customizable to 90°C or 105°C)
- Min. Bending Radius
- 5 x Outer Diameter
Compliance & Standards
- Production Standards
- IEC 60227BS 6004GB/T 5023-2008JB/T 8734-2016VDE 0295VDE 0281
Logistics & Availability
Packaging
- 100 meters per roll
- Plastic reel
- Wooden pallet
- Wooden drum
- Delivery Time
- Within 3-5 working days after deposit
Color Options
Available Colors
RedYellowBlueGreenBrownBlackWhiteGreyYellow/Green
