Technical Specifications

Overview

Industrial Silent Power Solution

This high-performance diesel generator is engineered for reliable power generation in demanding environments, offering both continuous and standby capabilities. Featuring a soundproof canopy with advanced noise-reduction technology, it ensures minimal acoustic impact while maintaining efficient operation. The system integrates premium components and cloud-ready monitoring for seamless control, making it an ideal choice for industrial and large-scale infrastructure projects.

Technical Specifications

Power Performance

550 kVA

ESP

500 kVA

PRP

400 V

Rated Voltage

50 Hz

Frequency

1,500 r/min

Speed

Dimensions and Weight

Parameter	Value
Weight	5166 kg
Size (LxWxH)	470015832200 mm

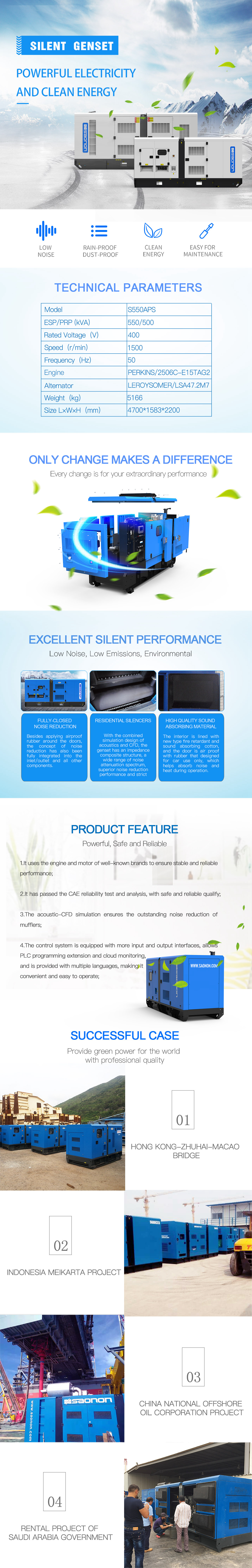

Technical specification infographic of the silent genset — Detailed technical parameters and noise reduction design features.

Key Features

Engine and Alternator

Engine: 2506C-E15TAG2
Alternator: LSA47.2M7

Construction Highlights: Rain-proofDust-proofLow NoiseFire Retardant InteriorCloud Monitoring
