Silent Diesel Genset
This silent diesel genset is engineered for reliable power generation with minimal noise. Its soundproof canopy makes it suitable for noise-sensitive environments.
Technical Specifications
Overview
High-Performance Silent Power Generation

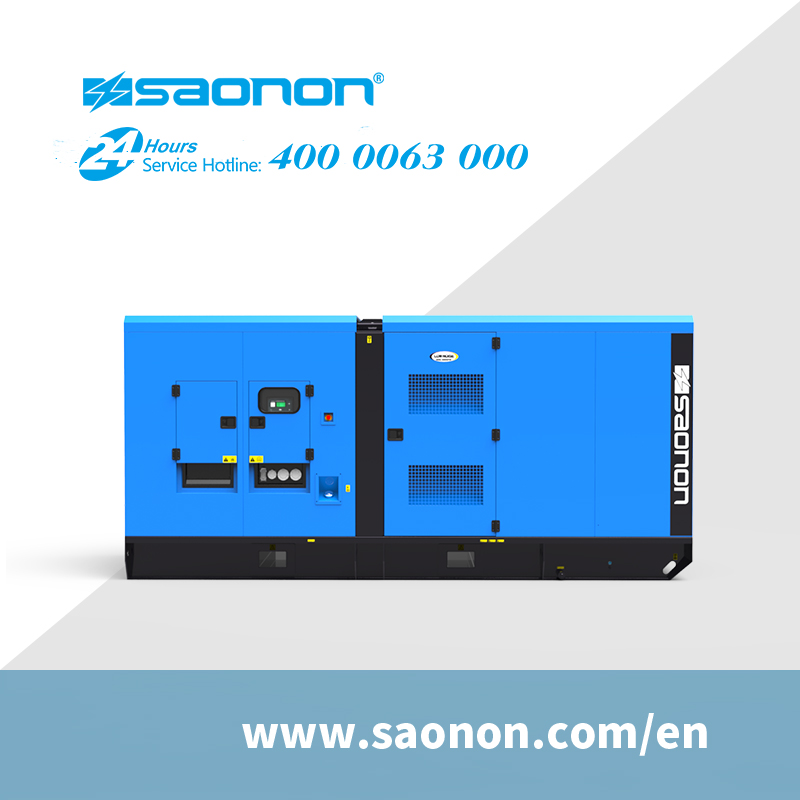

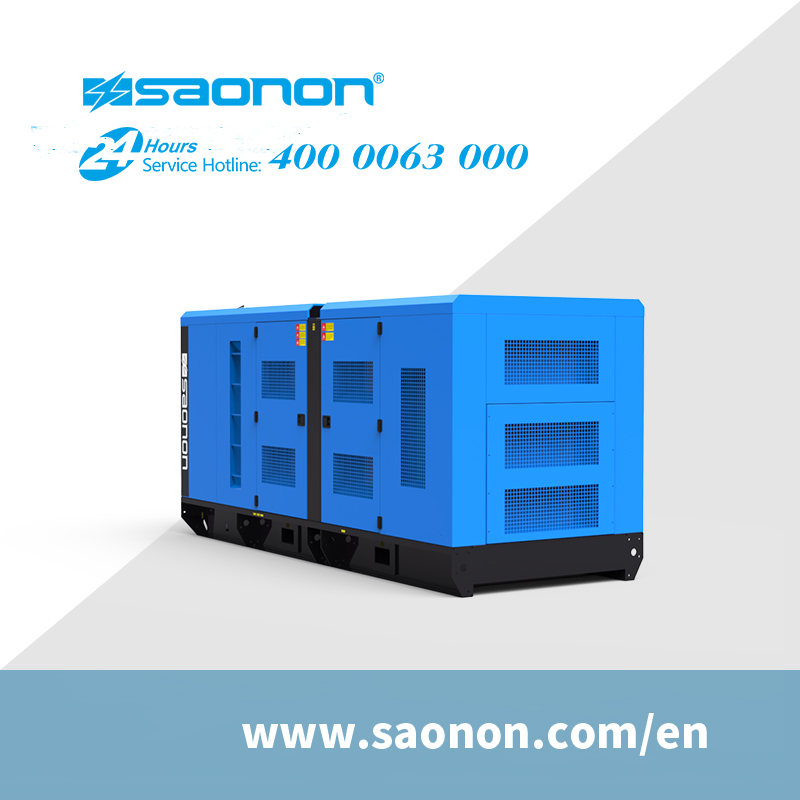

The S688YCS Silent Type Genset is engineered for reliable electricity generation in noise-sensitive environments, such as residential areas, hospitals, and commercial hubs. Featuring a fully-closed, soundproof enclosure, it delivers superior noise reduction and low-emission operation without compromising power output. With a robust design, this genset combines durability with ease of maintenance, ensuring a stable and consistent power supply for critical applications.
Technical Specifications
Key Performance Metrics
688 kVA
ESP Power
625 kVA
PRP Power
50 Hz
Frequency
1,500 r/min
Speed
Engine and Alternator
| Component | Model |
|---|---|
| Engine | YUCHAI/YC6TD840-D31 |
| Alternator | STAMFORD/HCI544FS |
Physical Dimensions and Weight
- Weight: 7454 kg
- Dimensions (L x W x H): 5000 x 1600 x 2200 mm
Key Features
Operational Features
- Rain-proof and dust-proof enclosure
- External fuel filler for safe refueling
- Forklift adapter for easy transport
- Durable coating process
- Noise Reduction Technology
- Fully-closed constructionResidential silencersFlame retardant silencing cottonSound-absorbing material>30dB(A) reduction
