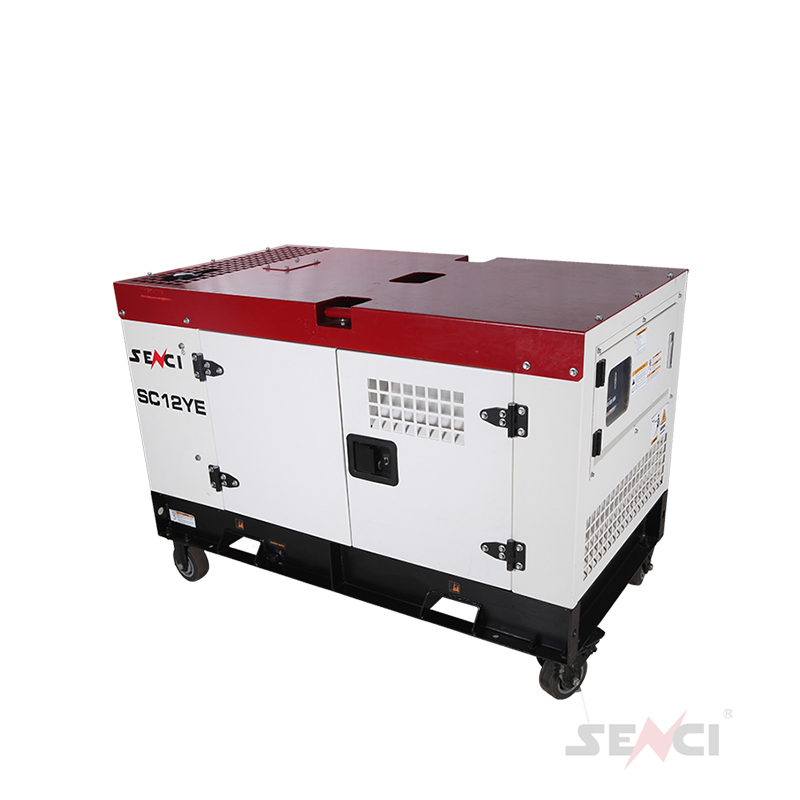

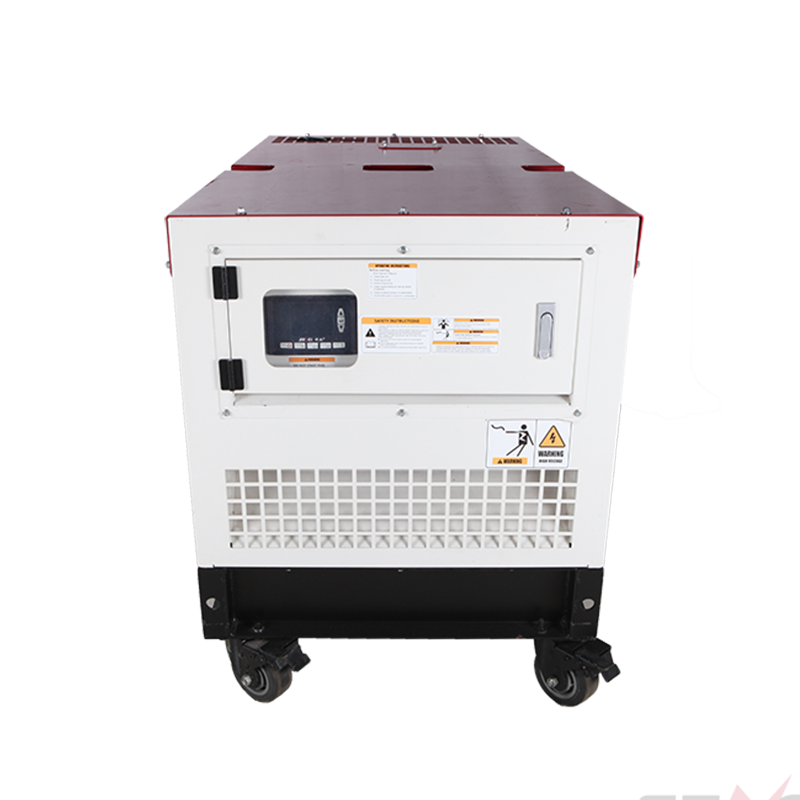

Silent Diesel Generator Set
This diesel silent generator set is engineered for reliable power generation with minimized noise. The unit is enclosed in a sound-attenuating canopy, significantly reducing noise levels for quiet operation in noise-sensitive environments.
Technical Specifications
Overview
Reliable Silent Power Generation
This silent diesel generator set is engineered for dependable power output in noise-sensitive environments, utilizing a sound-attenuating canopy to minimize operational volume. Featuring a robust engine and high-efficiency alternator, it is designed for consistent performance in various applications, including residential, industrial, and construction use. The unit includes comprehensive monitoring systems and a user-friendly control panel to ensure safe and efficient power management.
Performance Metrics
Power Ratings
15 kVA
Max Power
12 kVA
Rated Power
Operational Specifications
| Parameter | Value |
|---|---|
| Engine Speed | 1500 / 1800 rpm |
| Frequency | 50 / 60 Hz |
| Noise Level (at 7m) | 80 dB |
Electrical Systems
Alternator Characteristics
- Type: Brushless
- Insulation Grade: H
- Protection Grade: IP23
- Voltage Configurations
- 220V-240V (Single Phase)380V-400V (Three Phase)
Physical Dimensions
Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (L*W*H) | 1680*950*1200 mm |
| Net Weight | 450 kg |
| Gross Weight | 495 kg |
Technical Features
System Features
12V DC Electric StartAir/Water CoolingATS Digital ControlAutomatic Voltage Regulation
