Product Overview

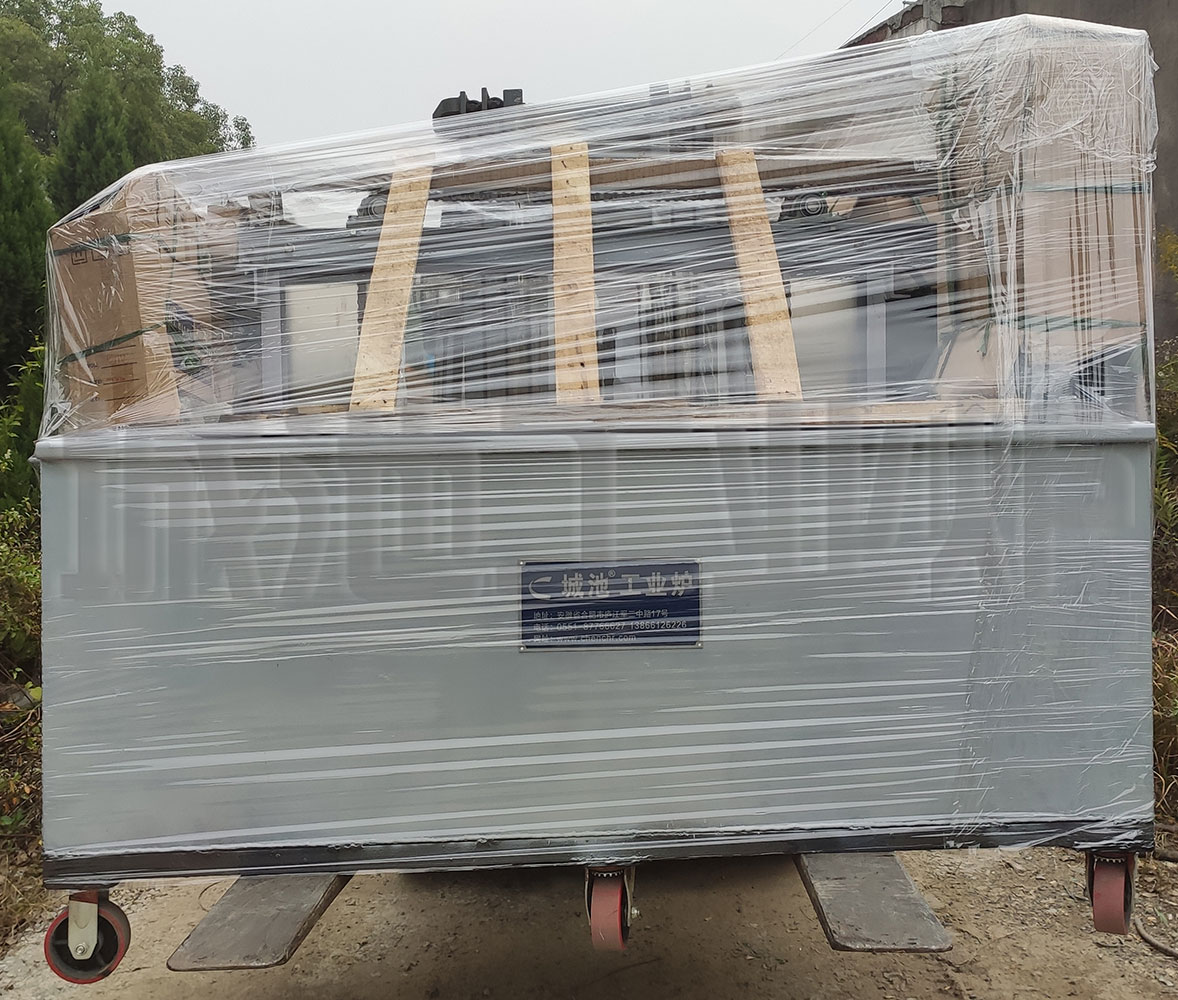

Side Pull Lifting Quenching Tank
The side pull lifting quenching tank is designed to minimize the critical time between removing a workpiece from the oven and submerging it into the quenching medium. This specialized equipment features a side-mounted lifting table with reserved space for efficient worker access, ensuring precise and controlled cooling. Its mobile, robust design is highly suitable for the rapid quenching of small and medium-sized industrial parts, including oil, water, or salt quenching applications.
Technical Specifications
Model Specifications
| Model | Tank Size (mm) | Frame Size (mm) | Capacity (L) | Power (kW) | Mixing Power (W) |
|---|---|---|---|---|---|
| MQT/MC-36 | 300x400x500 | 200x150x80 | 36 | 1 | 300 |
| MQT/MC-72 | 400x500x600 | 250x150x100 | 80 | 2 | 300 |
| SQT/SC-12 | 500x600x600 | 300x200x100 | 120 | 3 | 550 |
| SQT/SC-20 | 800x600x600 | 350x200x100 | 200 | 5 | 550 |
| SQT/SC-32 | 1000x800x600 | 400x250x100 | 320 | 8 | 750 |
| SQT/SC-48 | 1500x800x600 | 450x250x150 | 480 | 12 | 750 |
| SQT/SC-72 | 1800x1000x600 | 500x300x150 | 720 | 18 | 1,500 |
Features
Key Operational Benefits
- Rapid quenching transition to minimize oxidation
- Integrated lifting mechanism for consistent immersion
- Mobile design for flexible workspace positioning
- Ergonomic layout for easy material handling
- Quenching Medium Compatibility
- Quenching WaterQuenching OilQuenching Salt
