Sharp Edge Tester for Toy Safety
This sharp edge tester determines if accessible edges on toys are likely to cause injury. It conforms to EN-71 and ISO 8124 standards, ensuring compliance with international safety regulations.
Technical Specifications
Product Overview
Ensuring Toy Safety Compliance

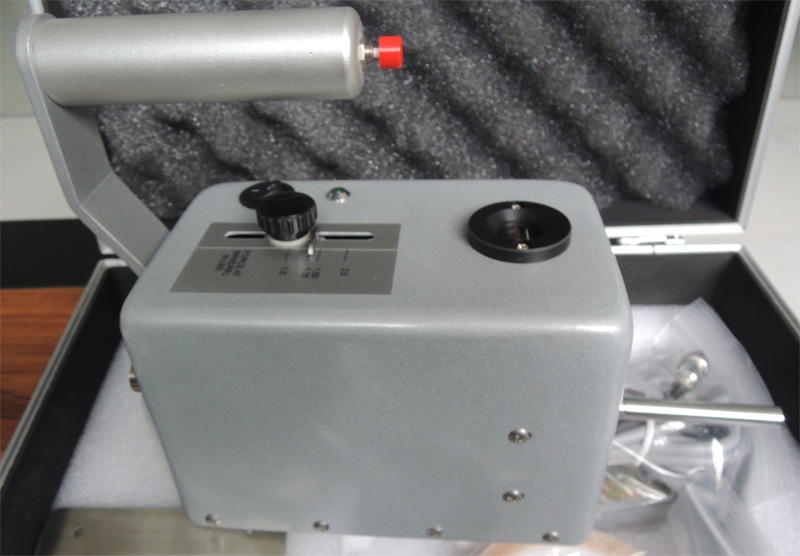

This Sharp Edge Tester is an essential tool designed to determine whether accessible edges on toys are likely to cause injury. By utilizing a mandrel with self-adhesive PTFE tape rotated for a full 360-degree revolution, the device identifies hazardous edges if the tape is cut beyond a specific length. It is specifically engineered to meet critical safety requirements for toys intended for children under 8 years old, both before and after use and abuse testing.
Technical Specifications
Included Accessories
- Charging unit
- Foot switch
- PTFE tape roll
- Base plate

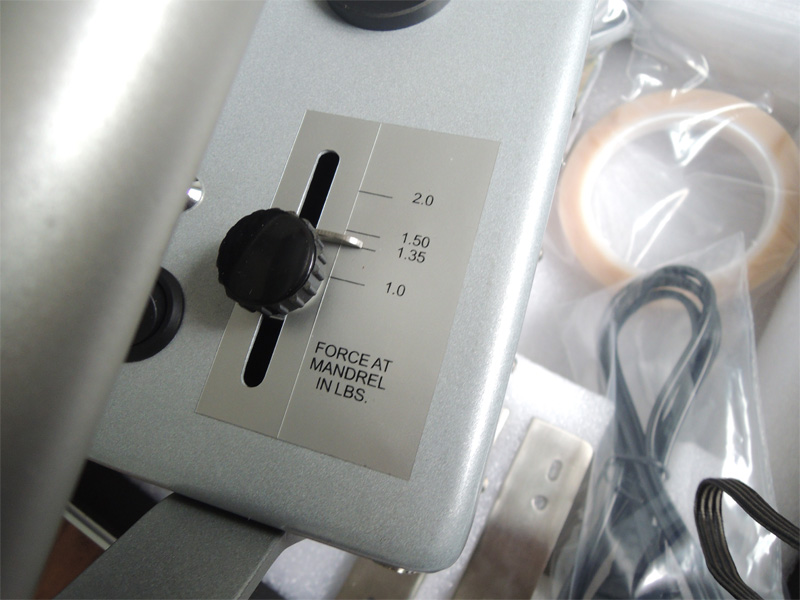

Force Measurement Capabilities
2 N
Max Force (Newtons)
2 lbs
Max Force (Mandrel)
- Dimensions
- 290 x 180 x 115 mm
- Weight
- 3.3 kg
Compliance & Standards
- Applicable Standards
- 16 CFR 1500.48ASTM F963 4.8EN-71 1998 8.2ISO 8124
