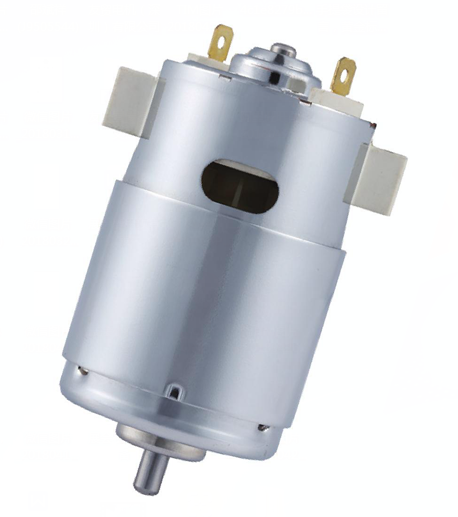

Sewing Machine Carbon-Brush Motor
This carbon-brush motor is designed for sewing machine applications. It features robust construction for reliable operation and delivers efficient power with smooth speed control.
Technical Specifications
Overview
High-Performance Sewing Motor
This carbon-brush motor is engineered specifically for sewing machine applications, offering robust construction for reliable, long-lasting operation. It delivers efficient power and smooth speed control, ensuring consistent performance across various sewing tasks. The compact design allows for seamless integration, while the unit is optimized for minimal noise and vibration during use.

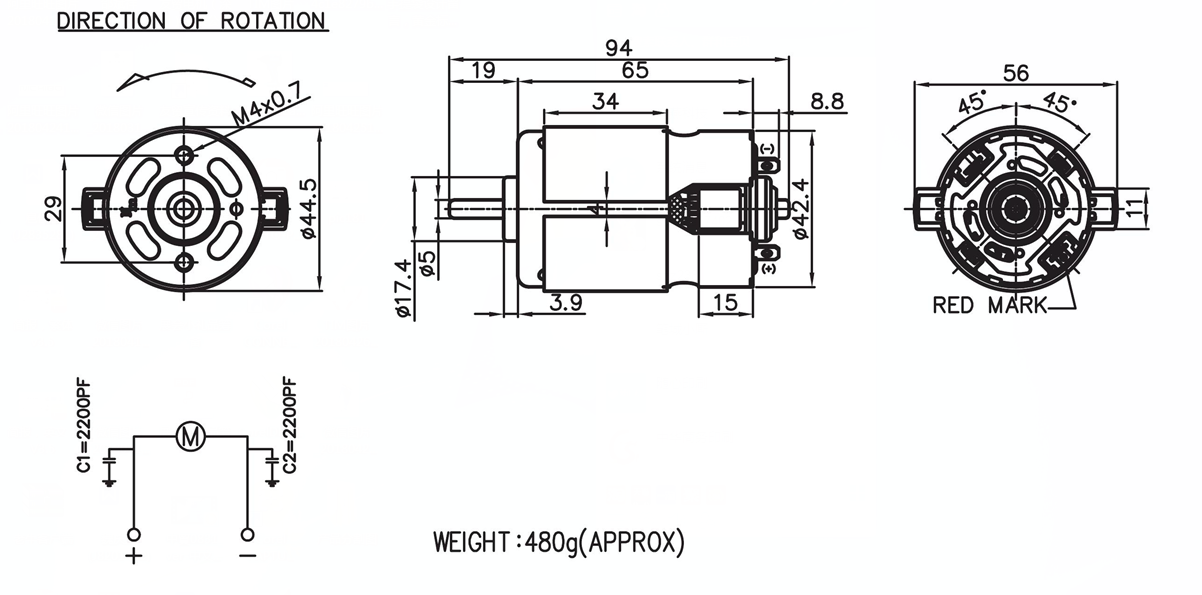

Physical Dimensions
- Motor Diameter
- 44.5 mm
- Total Length
- 94 mm
- Shaft Diameter
- 5 mm
- Flange Diameter
- 17.4 mm
- Approximate Weight
- 480 g
- Mounting Holes
- M4x0.7 threads
Electrical Specifications
- Capacitor Rating
- 2200pF (C1 and C2)
Performance Data
Available Motor Models
| Model | Voltage |
|---|---|
| 7712-10215 | 150V |
| 7712-1690 | 100V |
| 7724-09125 | 110V |
| 7724-2232 | 100V |
Features
- Key Features
- Carbon-brush designMinimal noiseLow vibrationCompact integration
