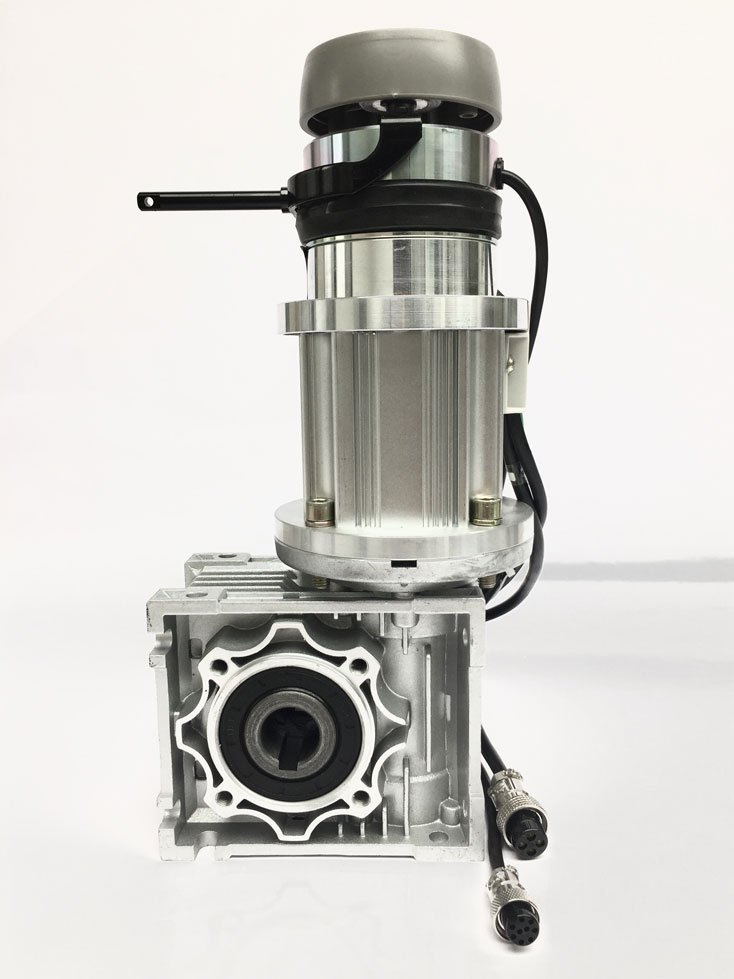

Servo Motor and Controller for High-Speed Doors
This servo motor and controller is designed for high-speed door systems. It provides precise motion control and reliable performance.
Technical Specifications
Overview
High-Performance Servo System for Industrial Doors

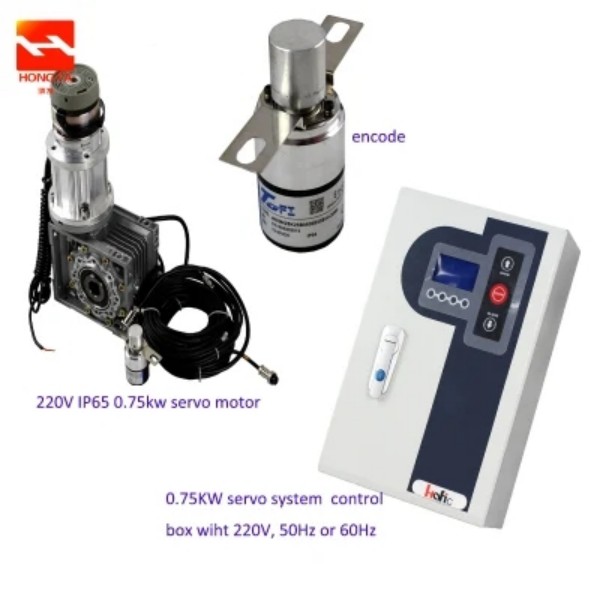

This integrated servo motor and controller system is specifically engineered for high-speed industrial doors, offering precise motion control and reliable operation. With an IP65 protection rating, the system is resilient against dust and water ingress, making it suitable for demanding environments like cold storage and clean rooms. The solution combines a high-torque motor with an absolute encoder for accurate positioning and features manual override capabilities for safety and maintenance.
Key Performance Metrics
Performance Highlights
1,500 W
Maximum Power
150 N.M
Peak Torque
60 °C
Max Op Temp
Technical Specifications
Model Comparison
| Specification | PE200 | PE2000 | PE500 |
|---|---|---|---|
| Rated Output | 750W | 750W | 1500W |
| Motor Speed | 0-2000rpm | 0-2000rpm | 0-2000rpm |
| Output Speed | 0-200rpm | 0-260rpm | 0-200rpm |
| Rated Torque | 35N.M | 30N.M | 50N.M |
| Max Torque | 100N.M | 75N.M | 150N.M |
| Door Area Suitability | 2-20 m² | 2-15 m² | 2-35 m² |
| Weight | 10kg | 10kg | 28.8kg |
System Features
System Capabilities
- Absolute Encoder for precise limit positioning
- Torque servo management system
- Electro-mechanical brake for self-locking
- Manual release via hand wheel or winch
- Integrated RV63 reducer (10:1 ratio)
Environment & Protection
Ingress Protection
IP65
- Power Supply
- 220V (50Hz/60Hz)
- Operating Temperature
- -40°C to 60°C
- Temperature Rise
- <30°C
Applications
- Compatible Door Types
- High Speed Roll Up DoorAuto Recovery DoorCold Storage DoorHigh Speed Stacking DoorTurbine Hard Door
