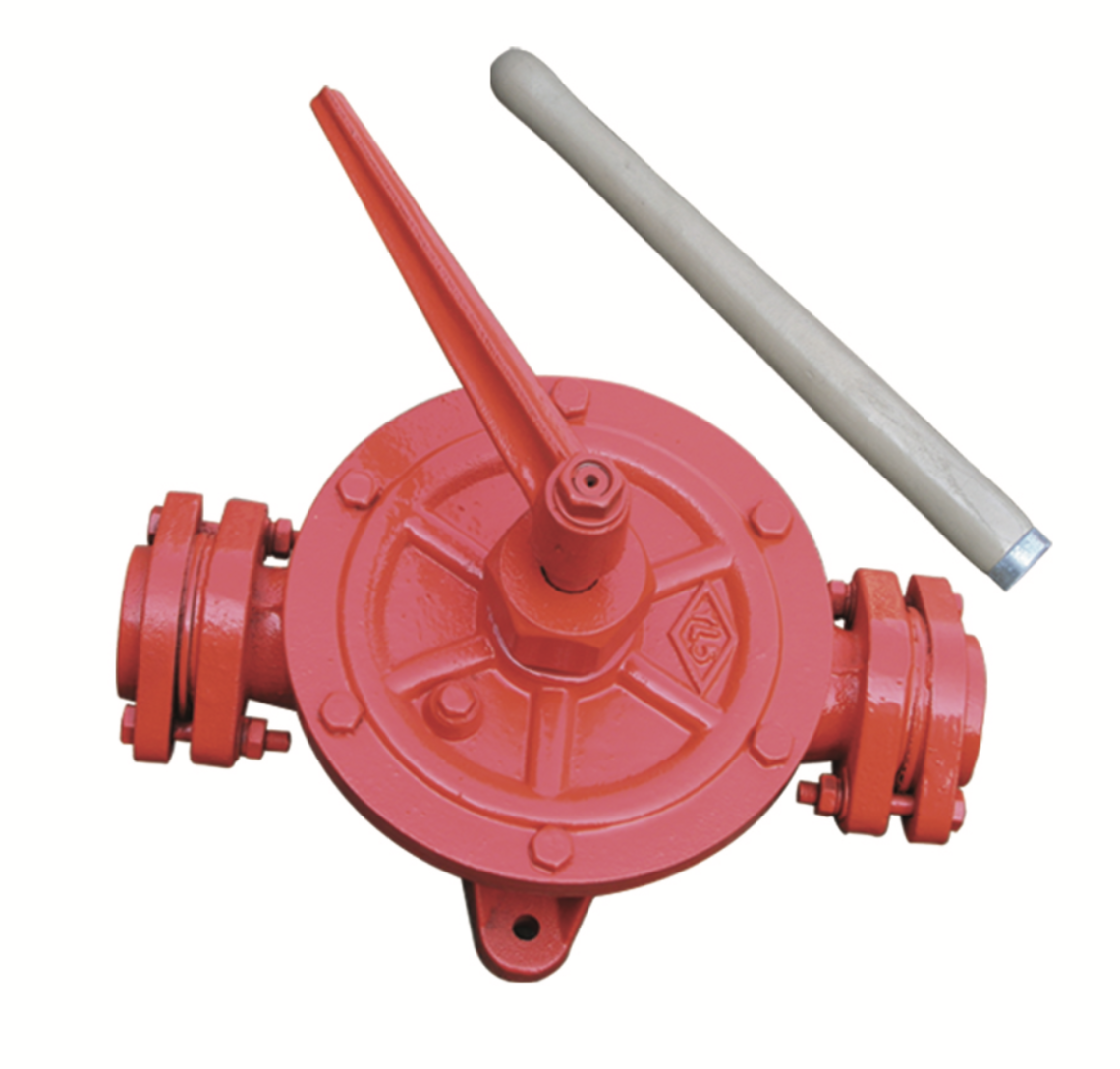

Semi-Rotary Hand Operated Oil Pump
This hand-operated, semi-rotary pump is suitable for transferring fluids such as petrol, kerosene, diesel and machine oil. It is constructed from cast iron and alloy copper.
Technical Specifications
Product Overview
High-Performance Manual Fluid Transfer
This semi-rotary hand-operated oil pump is designed for reliable, high-performance fluid transfer in industrial and agricultural settings. Constructed with a robust cast iron body and alloy copper components, it is optimized for transferring petrol, kerosene, diesel, and machine oil. Its manual lever operation provides controlled, precise dispensing while ensuring durability in demanding environments.
Technical Capabilities
- Compatible Liquids
- PetrolKeroseneDieselMachine Oil
- Construction Materials
- Cast Iron and Alloy Copper
Performance Metrics
Operating Metrics
6 M
Max Suction Distance
26 M
Max Lift Distance
25 L/MIN
Max Flow Rate
Model Specifications
Model Comparison

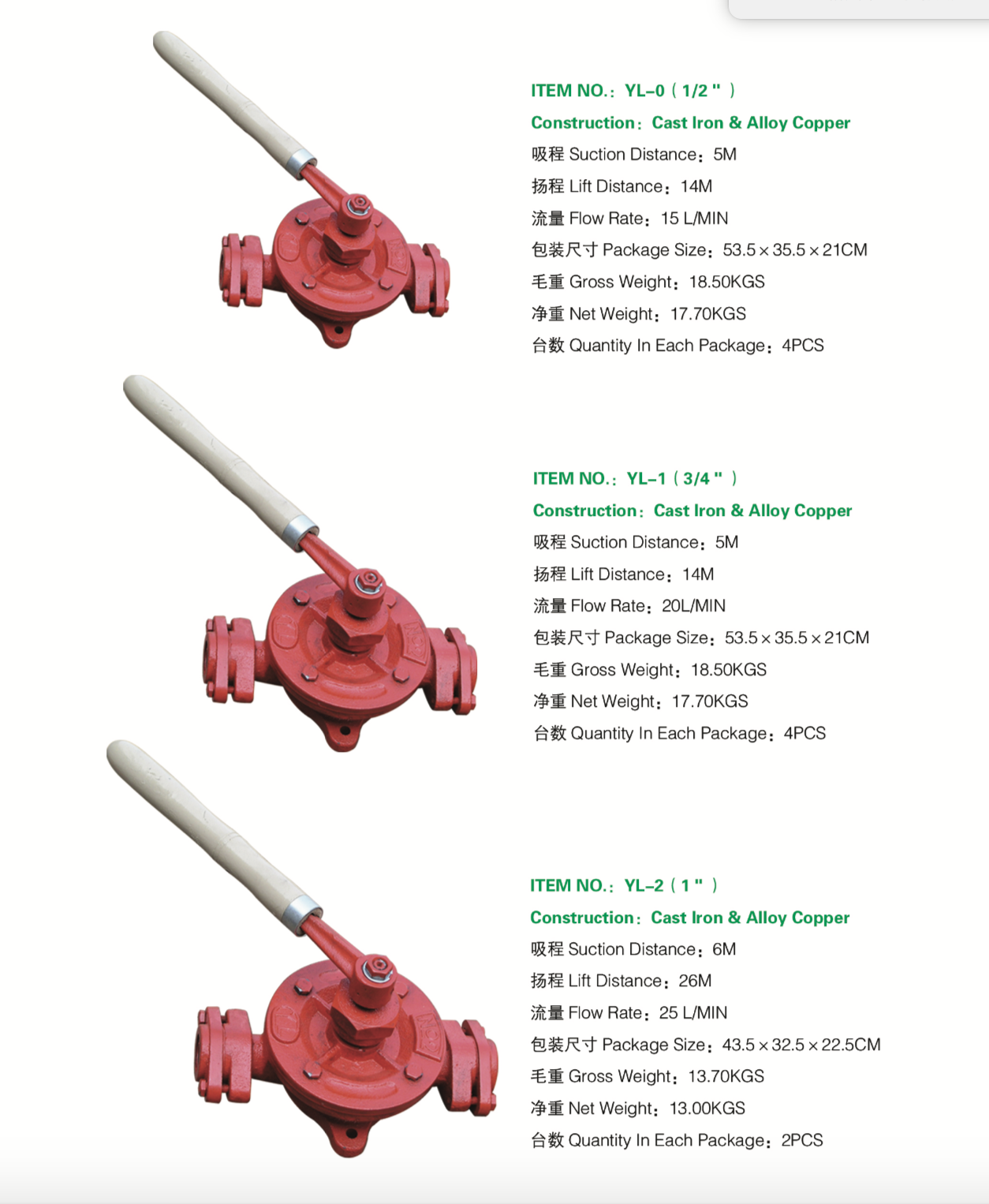

| Model | Flow Rate | Suction (M) | Lift (M) | Net Weight (KG) |
|---|---|---|---|---|
| YL-0 (1/2") | 15 L/MIN | 5 | 14 | 17.7 |
| YL-1 (3/4") | 20 L/MIN | 5 | 14 | 17.7 |
| YL-2 (1") | 25 L/MIN | 6 | 26 | 13 |
