Semi-Automatic Swing Arm Tire Changer
This semi-automatic tire changer is equipped with a swing arm for efficient operation. It features a bead breaker, pneumatic locking system, and user-friendly controls for safe tire changing.
Technical Specifications
Overview
Professional Tire Changing Solution

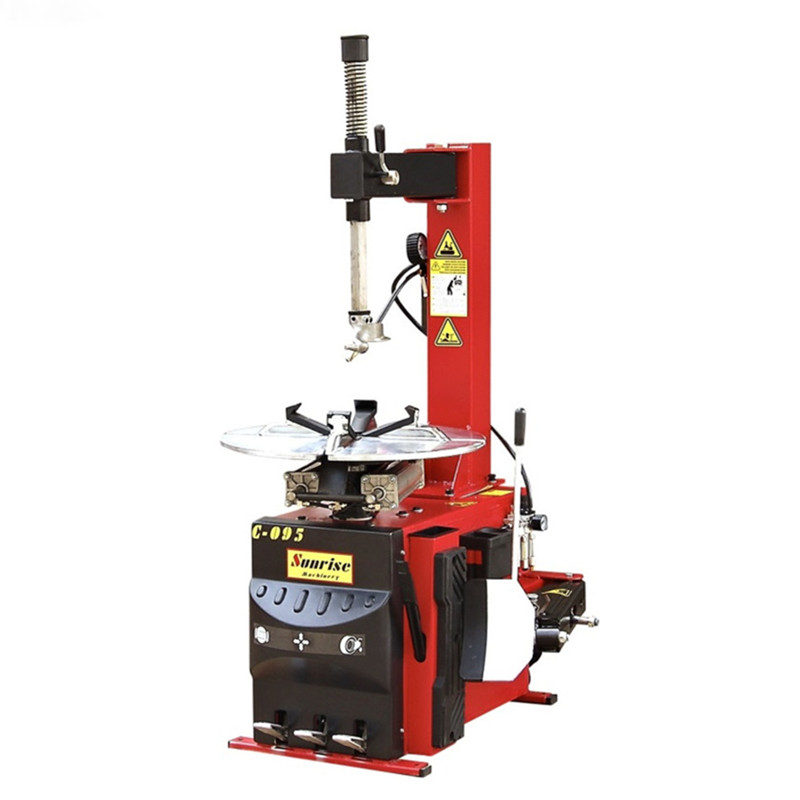

The C-095 is a semi-automatic swing arm tire changer designed for professional automotive service environments. It features a robust pneumatic bead breaker and an ergonomic three-pedal control system for efficient, safe operation. The machine is versatile, supporting a wide range of rim sizes and offering optional protection tools for delicate alloy wheels.
Technical Performance
Key Performance Metrics
2,500 Kgf
Bead Break Force
1,000 mm
Max Wheel Diameter
190 kg
Net Weight
- Operating Pressure
- 0.9 MPa
Capacity and Range
Rim Capacity
| Specification | Range |
|---|---|
| Rim Diameter (Outer) | 10"-20" |
| Rim Diameter (Inner) | 12"-22" |
| Rim Width | 3-16 in |
Electrical Specifications
Motor Power Options
- 0.75 KW
- 1.1 KW
- Compatible Power Supply
- 1PH/110-220V AC3PH/380V AC
Features
Available Upgrades
Plastic mounting/demounting headMotorcycle adapter
