Semi-Automatic Swing Arm Tire Changer
This semi-automatic tire changer is equipped with a swing arm for efficient tire mounting and demounting. It features a pneumatic bead breaker and ergonomic controls for ease of use.
Technical Specifications
Product Overview

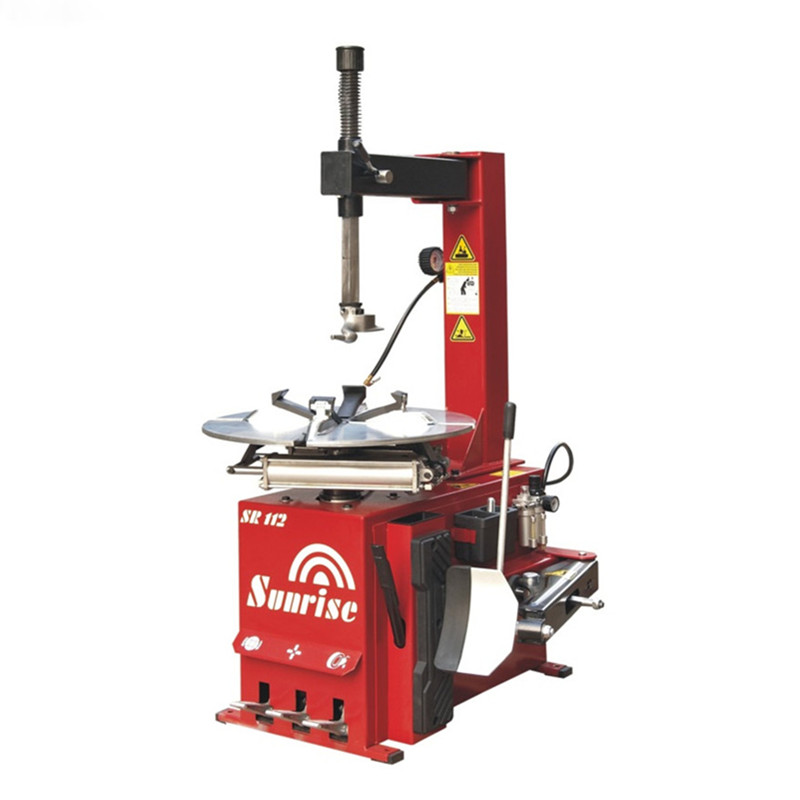

SR 112 Semi-Automatic Tire Changer
This professional-grade semi-automatic swing arm tire changer is engineered for efficient tire mounting and demounting in automotive service environments. Featuring a robust pneumatic bead breaker and ergonomic three-pedal controls, it ensures both operational speed and enhanced safety. The system is compatible with a broad range of rim dimensions and offers optional accessories such as a plastic mounting head to protect high-value alloy wheels.
Performance Metrics
Key Operating Metrics
2,500 Kgf
Bead Break Force
1 MPa
Operating Pressure
190 kg
Net Weight
Technical Data
Clamping Range
| Rim Configuration | Capacity |
|---|---|
| Rim Diameter (Outside) | 10" - 20" |
| Rim Diameter (Inside) | 12" - 22" |
| Rim Width | 3" - 16" |
Power and Motor
- 110V/220V 1PH
- 220V/380V 3PH
- Motor Power: 0.75KW/1.1KW
Features
Available Upgrades
Plastic Mounting HeadMotorcycle Adapter
- Supported Capabilities
- Swing Arm DesignSemi-Automatic OperationThree-Pedal ControlPneumatic Bead Breaker
