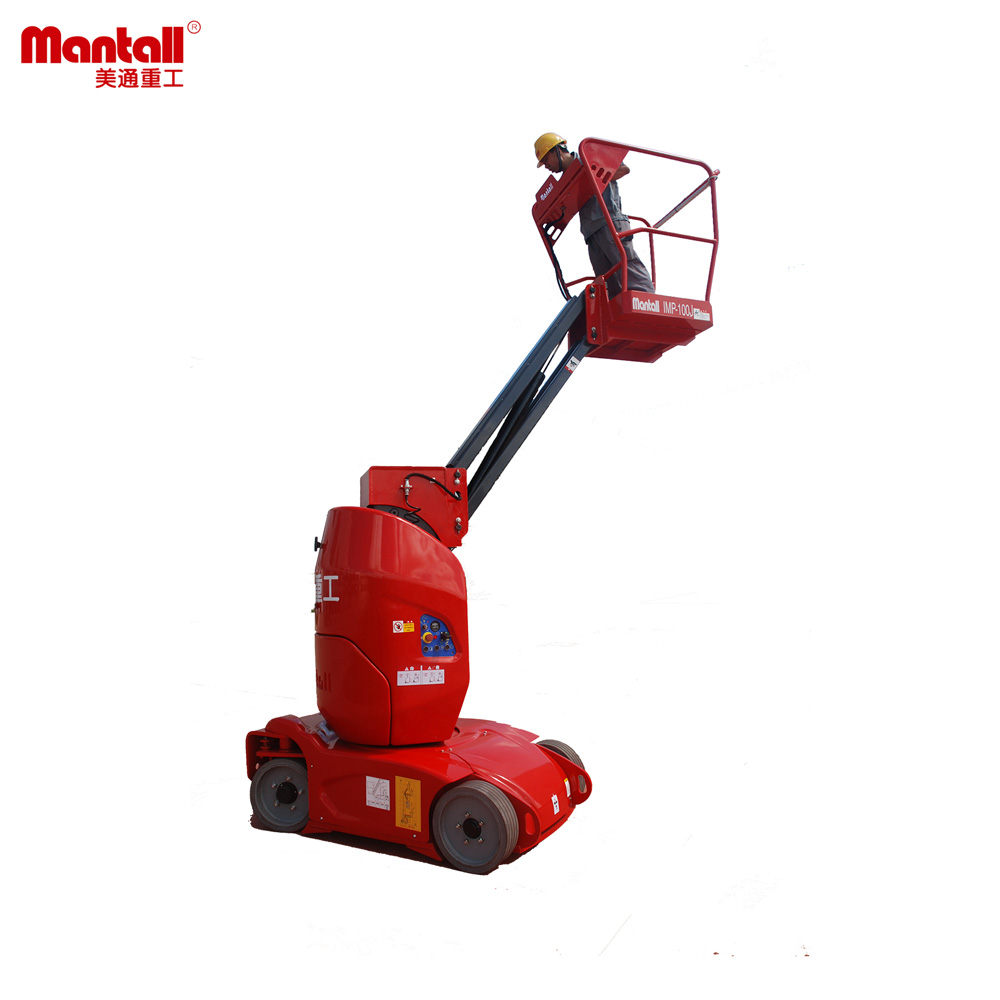

Self-Propelled 12m Aerial Work Platform
This self-propelled aerial work platform can reach a 12m working height. It features a compact design for maneuverability and a stable base for safe operation.
Technical Specifications
Overview
Professional Aerial Access Solution
This self-propelled aerial work platform is engineered for efficiency and versatility in both indoor and outdoor professional environments. With a maximum working height of 12 meters, it provides a stable and secure elevated workspace for maintenance, installation, and cleaning operations. Its compact design and maneuverability in tight spaces make it an essential tool for high-reach projects where safety and precision are paramount.
Performance Metrics
Key Performance Metrics
12 m
Max Working Height
200 kg
Load Capacity
30 %
Gradeability
6 km/h
Driving Speed

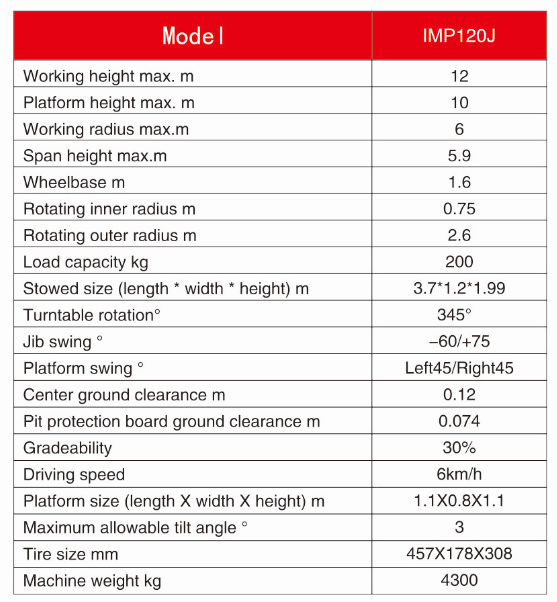

Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Stowed Size | 3.7 x 1.2 x 1.99 m |
| Platform Size | 1.1 x 0.8 x 1.1 m |
| Machine Weight | 4300 kg |
| Wheelbase | 1.6 m |
Operational Range
- Turntable rotation: 345 degrees
- Jib swing: -60 to +75 degrees
- Platform swing: Left 45 / Right 45 degrees
- Working radius: 6 m
- Span height: 5.9 m
Safety and Mobility
- Clearances and Safety
- Center ground clearance: 0.12mPit protection board clearance: 0.074mMax tilt angle: 3 degrees
