Self-Priming Water Transfer Pump
This self-priming pump is designed for efficient water transfer and boosting applications. It features a robust construction for durability and long-lasting performance.
Technical Specifications
Product Overview

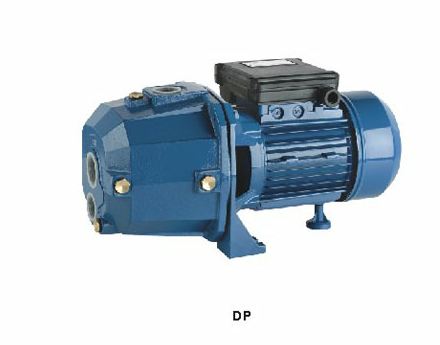

DP Series Self-Priming Pump
The DP series self-priming pump is designed for efficient water transfer and boosting applications. It features a robust construction for durability and long-lasting performance. The pump is self-priming, allowing it to draw water from a source even when the pump is not initially filled with water. It is suitable for various applications including irrigation, domestic water supply, and industrial use.
Operating Conditions
- Max Fluid Temperature
- 60 °C
- Max Ambient Temperature
- 40 °C
- Rated Speed
- 2850 RPM
Performance Specifications
Model Comparison Table
| Model | Max Capacity (L/min) | Max Lift (M) | Max Suction (M) | Power (W) | Voltage/Frequency |
|---|---|---|---|---|---|
| DP-256 | 30 | 40 | 15 | 550 | 220/50 Hz |
| DP-370 | 60 | 48 | 20 | 750 | 220/50 Hz |
System Components
System Components
- Centrifugal pump
- Pressure tank
- Pressure switch
- Nozzle
- Sluice-gate
