Self-Priming Water Pump
The JET-M series self-priming pump is designed for efficient water transfer and pressure boosting applications. Its self-priming capability ensures reliable operation even with fluctuating water levels.
Technical Specifications
Overview

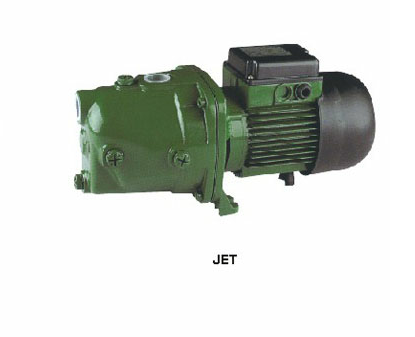

JET-M Series Self-Priming Pump
The JET-M series self-priming pump is engineered for efficient water transfer and pressure boosting, making it an ideal solution for domestic, agricultural, and industrial applications. Designed for pumping clean, non-chemically aggressive fluids, this pump features a robust construction with a brass impeller and carbon steel motor shaft. Its reliable self-priming capability ensures consistent operation even with fluctuating water levels, providing a durable solution for surge tanks and garden watering systems.
Performance Metrics
Key Performance Indicators
60 L/min
Max Flow Rate
48 m
Max Head
9 m
Suction Lift
Technical Specifications
Technical Data (Model JET-102M)
| Parameter | Value |
|---|---|
| Power | 0.75 kW / 1 HP |
| Max Head | 48 m |
| Max Flow | 60 L/min |
| Inlet/Outlet Size | 1" x 1" |
| Suction Head | 9 m |
Operating Limits
Operating Limits
- Suction lift up to 9m
- Fluid temperature up to 60°C
- Maximum ambient temperature 40°C
Standard Equipment
- Standard Configuration
- Single phase 220V/50HzBrass impellerCarbon steel motor shaftThermal protector
Customization
Available Upon Request
Three-phase110V/60HzDual voltageStainless steel shaft
