Technical Specifications
Overview
High-Efficiency Clean Water Transfer

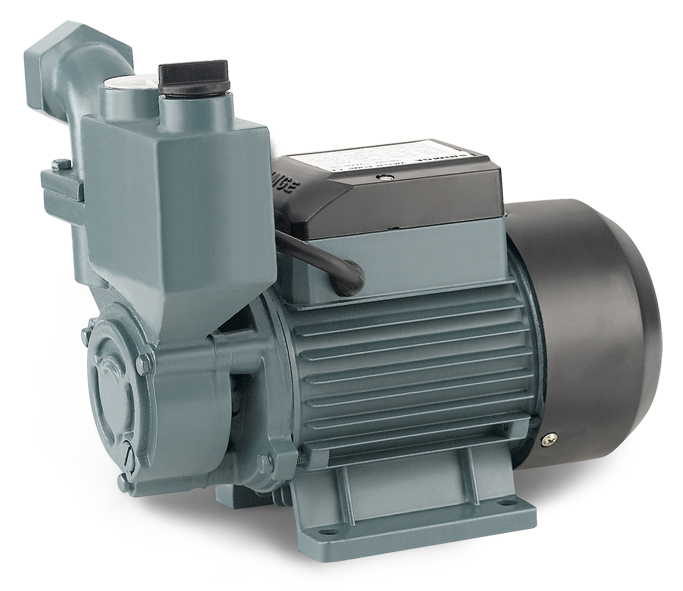

This self-priming peripheral water pump is engineered for reliable clean water transfer and pressure boosting in both residential and light commercial environments. Featuring a durable copper-wound motor with an integrated thermal overload protector, the unit ensures consistent performance and safety. Its compact, robust construction makes it an ideal solution for irrigation systems, domestic water supply, and various pressure boosting applications.
Performance Metrics
Key Performance Metrics
5 m3/h
Max Flow Rate
50 m
Max Head
8 m
Max Suction
Technical Specifications
Electrical Requirements
- Power range: 0.37-1.1 KW
- Voltage: 110V/220V
- Frequency: 50Hz/60Hz
Material Composition
| Component | Material |
|---|---|
| Motor Winding | Copper |
| Impeller | Brass |
| Shaft | Stainless steel or CS45# |
| Mechanical Seal | Silicon carbide-Graphite |
- Operating Limits
- Insulation Class BProtection IP44Max Liquid Temp: +40°CMax Ambient Temp: +40°CMax Working Pressure: 6 bar
