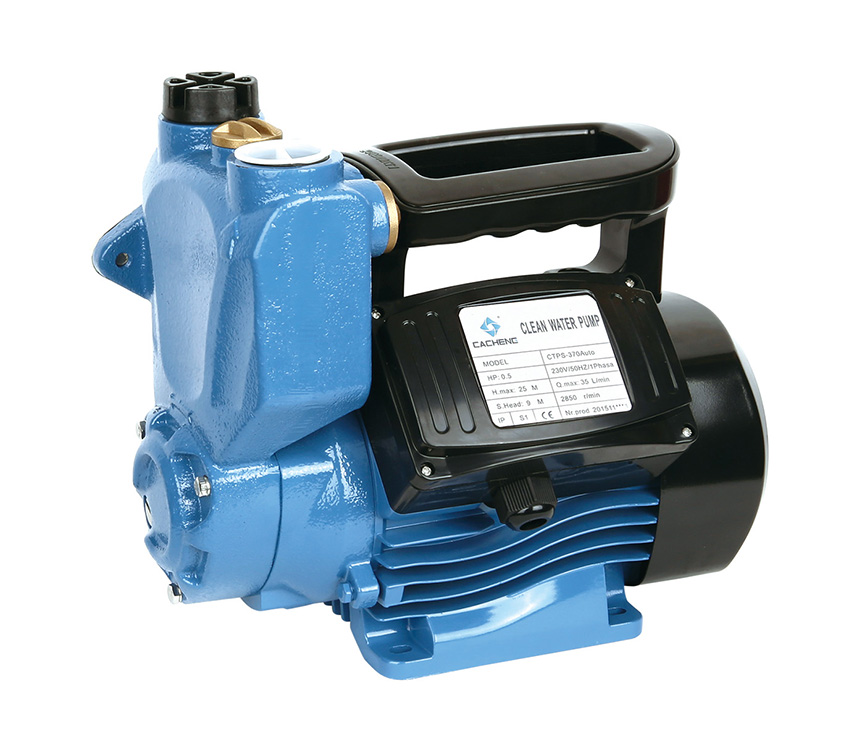

Self-Priming Peripheral Water Pump
This pump is designed to transfer clean water or similar liquids, making it suitable for small water supply and sprinkler systems. The self-priming capability allows easy start-up, even with air in the system.
Technical Specifications
Overview
Efficient Water Transfer Solution
The Self-Priming Peripheral Water Pump is engineered for reliable water transfer and pressure boosting in residential and light commercial environments. Featuring a robust 0.5 HP motor, it provides consistent performance for applications such as irrigation and general water supply. Its self-priming capability ensures easy start-up, even when air is present in the system, making it a dependable choice for various clean water needs.
Performance Metrics
Key Performance Indicators
0.5 HP
Power
25 m
Max Head
35 L/min
Max Flow Rate
9 m
Suction Head
Technical Specifications
Insulation Class
Class B
Protection Class
IPX4
- Motor Type
- Two-Pole induction motor
- Rotation Speed
- 2850 r/min
- Electrical Power
- 230V / 50Hz / 1Phase
Applications
- Suitable Applications
- Clean WaterIrrigationWater SupplyPressure Boosting
