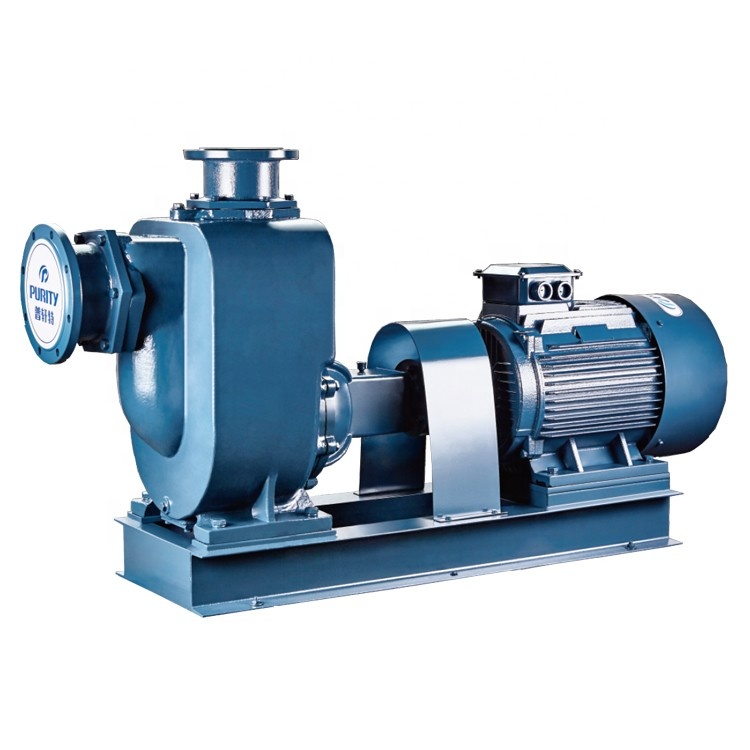

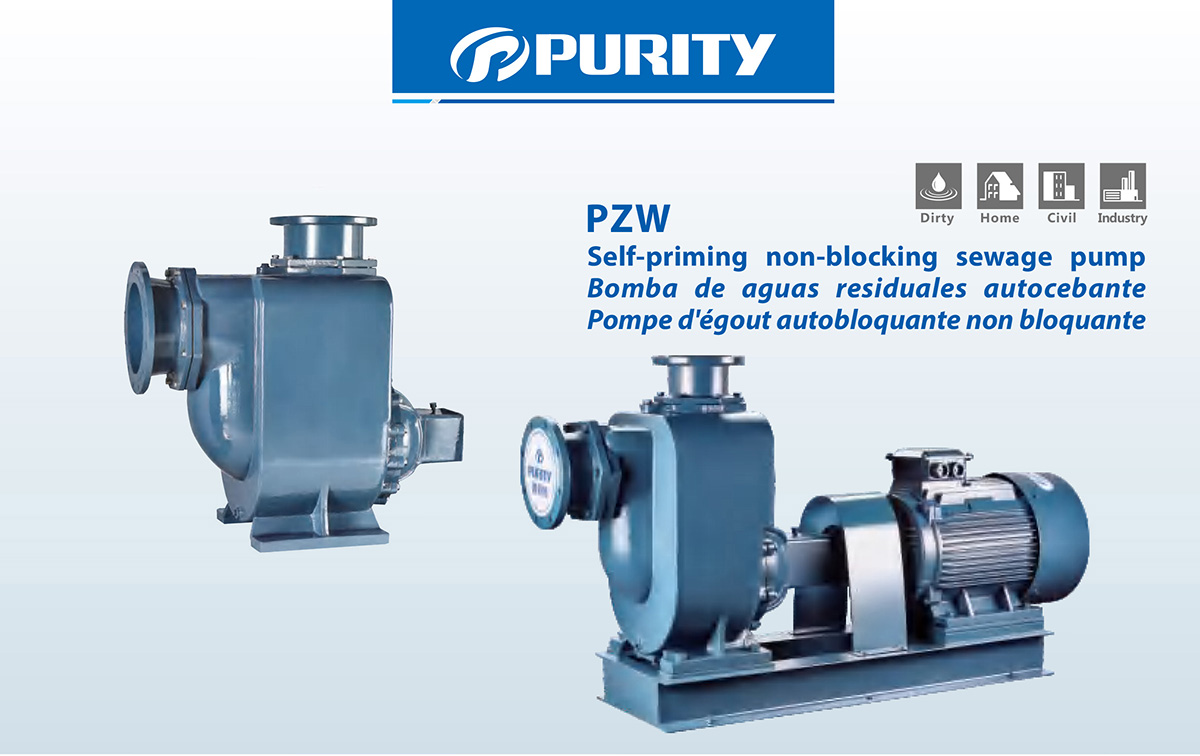

Self-Priming Non-Clog Sewage Pump
This self-priming sewage pump features a non-clog impeller design. It is suitable for pumping liquids containing solids and fibrous materials.
Technical Specifications
Product Overview
Self-Priming Non-Clog Sewage Pump
This high-efficiency sewage pump is engineered for superior performance in demanding wastewater and drainage applications. Featuring a robust non-blocking impeller design with large fluid channels, it effectively handles liquids containing solids and fibrous materials without clogging. The versatile design supports both bare-shaft and motor-coupled configurations to suit diverse industrial and municipal requirements.
Technical Specifications
- Self-Priming Capability
- 5.25 m
- Liquid Temperature Range
- -10 to +80
- Ambient Temperature Range
- -10 to +50
- Maximum Media Density
- 1240 kg/m3
Construction & Materials
- Impeller Configuration
- Two-vane non-clogging
- Wetted Parts Material
- Stainless Steel 304Cast Iron
Motor & Protection
Protection Rating
IP55Class F Insulation
- Motor Efficiency Class
- YE3
Operational Limits
PH Tolerance by Material
| Material | PH Range |
|---|---|
| Cast Iron | 6 - 9 |
| Stainless Steel | 2 - 13 |
Applications
Suitable Industries
- Chemical
- Petroleum
- Pharmaceutical
- Mining
- Papermaking
- Municipal Sewage
- Textile
- Food Processing
- Power Plants
