Self-Priming Electric Water Pump
This pump efficiently moves clean water without abrasive particles and non-aggressive liquids, making it suitable for domestic use, agriculture, and irrigation. It is designed for water supply and pressure boosting.
Technical Specifications
Product Overview

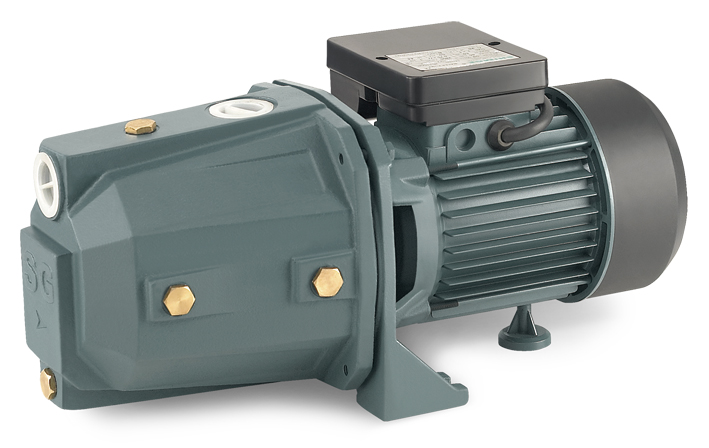

Self-Priming Electric Water Pump
This high-performance self-priming electric water pump is designed for reliable water supply and pressure boosting applications. Built with a durable cast iron body and featuring premium components like a copper-wound motor and brass impeller, it ensures long-term operational stability. It is an ideal solution for pumping clean water from wells or tanks to support household irrigation, washing systems, and general water transfer needs.
Technical Performance
Key Performance Metrics
3.5 m3/h
Max Flow
46 m
Max Head
9 m
Max Suction
- Power Range
- 0.55 - 0.75 KW
- Electrical Specs
- 110V/220V50Hz/60Hz
Construction & Materials
Material Specifications
| Component | Material |
|---|---|
| Motor Winding | Copper |
| Impeller | Brass |
| Shaft | Stainless steel or CS45# |
| Mechanical Seal | Ceramic-Graphite |
Protection & Limits
- Thermal overload protector
- Insulation Class B
- Protection Rating IP44
- Max. Liquid Temp: +40 ℃
- Max. Ambient Temp: +40 ℃
- Max. working pressure: 6 bar
