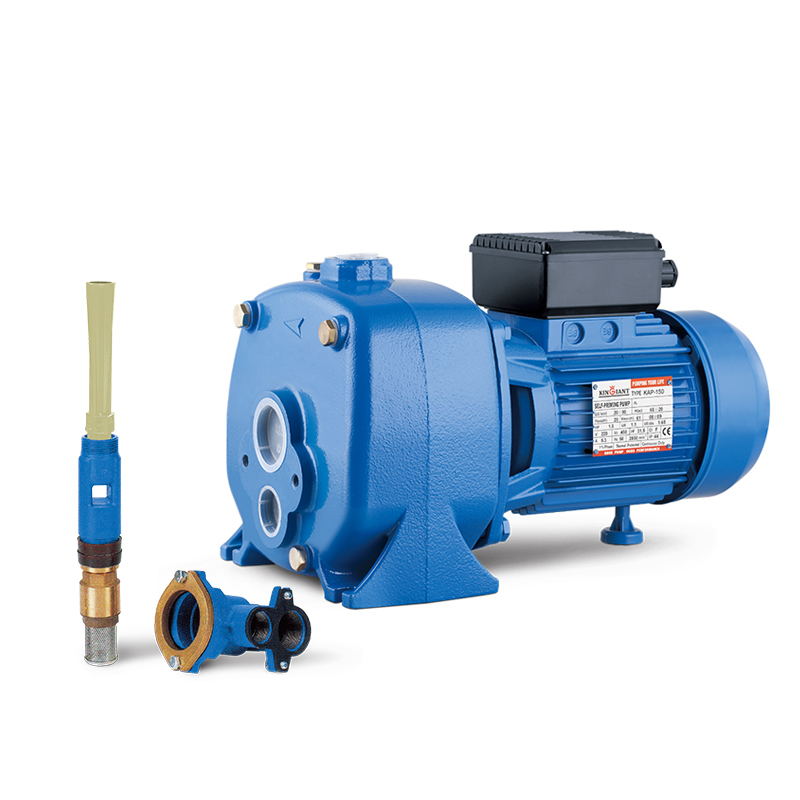

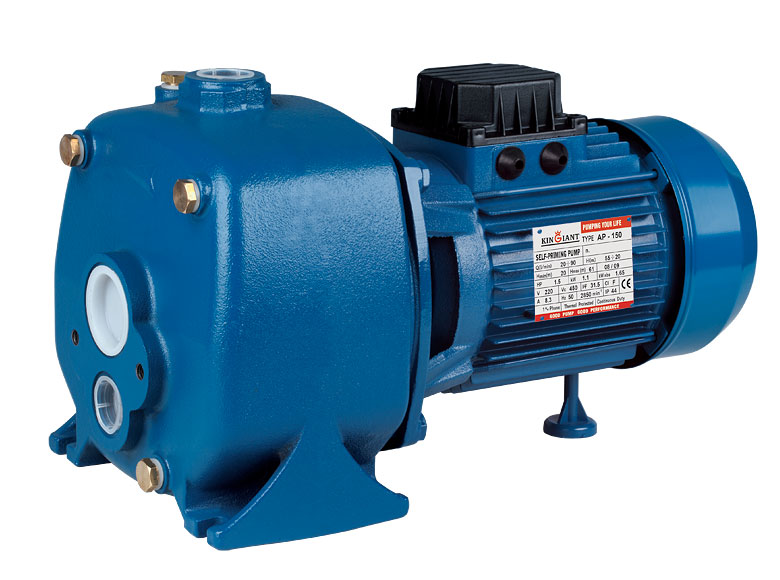

Self-Priming Deep Well Jet Pump
This self-priming jet pump is designed for deep well applications. It is engineered for efficient water lifting from significant depths, providing consistent pressure and flow.
Technical Specifications
Product Overview
High-Efficiency Deep Well Solution
This self-priming jet pump is engineered for reliable water extraction from deep sources, making it an ideal choice for residential, agricultural, and industrial water supply systems. Designed for wells with water levels between 10 and 20 meters, it combines robust construction with optimized impeller technology to ensure consistent pressure and flow. The unit features thermal protection for continuous duty, ensuring a long service life and dependable performance in demanding environments.
Performance Metrics
Flow Rate (Q)
20 l/min
Min Flow
90 l/min
Max Flow
Head Range (H)
5 m
Min Head
20 m
Max Head
Technical Specifications
Ingress Protection
IP44
Key Features
- Self-priming capability
- Thermal protection
- Continuous duty operation
- Robust impeller design
- Power Output
- 1.1 kW
- Horsepower
- 1.5 HP
- Voltage
- 220V440V
- Speed
- 2850 r/min
- Rated Current
- 8.3 A
- Frequency
- 50 Hz
