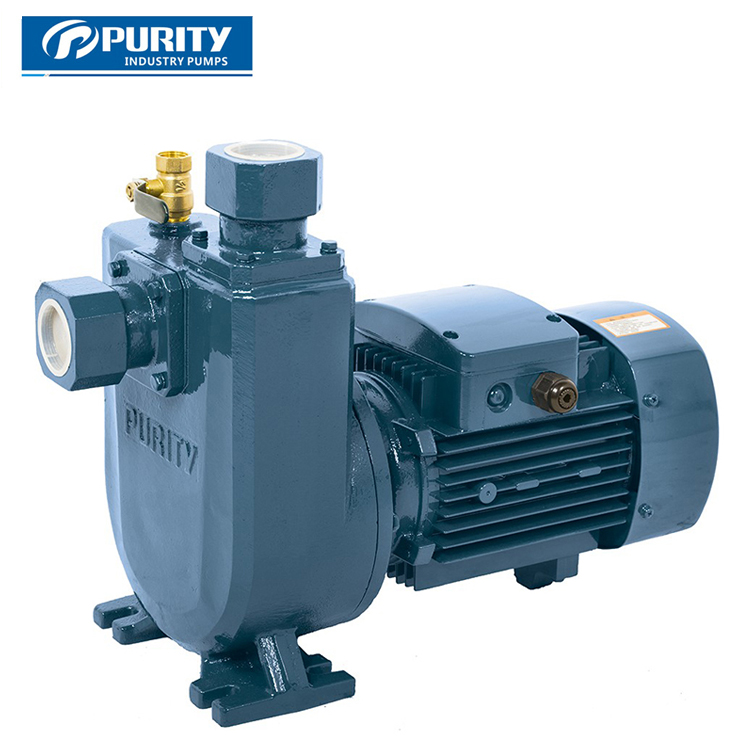

Self-Priming Centrifugal Water Pump
This self-priming centrifugal pump is designed for efficient water transfer. It features a robust construction, durable impeller, and a powerful electric motor.
Technical Specifications
Product Overview
Professional Self-Priming Centrifugal Pump

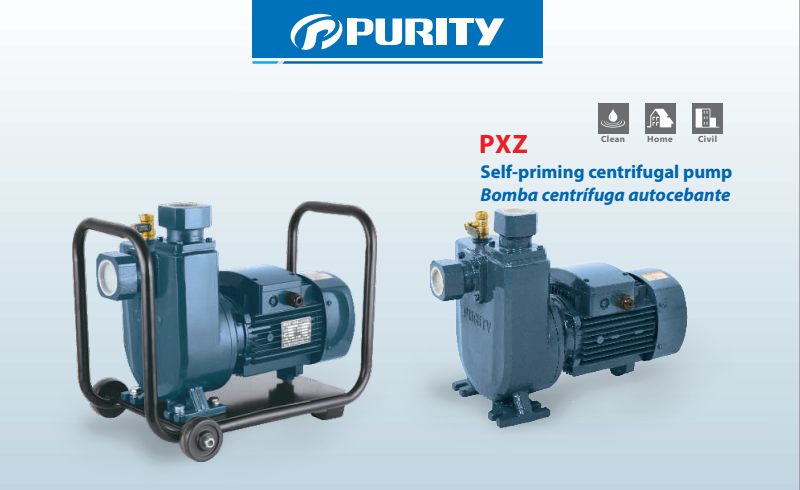

The PXZ series self-priming centrifugal pump is engineered for efficient water transfer in civil, industrial, and home applications. Featuring a patented design and high-efficiency motor technology, this pump provides reliable, continuous performance. Its anti-corrosive casing and high-quality mechanical components ensure durability and longevity even in demanding environments.
Technical Specifications
Operating Limits
| Parameter | Range/Value |
|---|---|
| Liquid Temperature | -10°C to +120°C |
| Ambient Temperature | Up to +50°C |
| Max. Working Pressure | 16 bar |
| Duty Cycle | Continuous S1 |
Motor Specifications
- YE3 high efficiency motor
- Protection Class: IP55
- Insulation Class: F
- Available in square and round motor configurations
- Construction Materials
- Stainless Steel AISI 304Cast IronAnti-corrosive coating
- Suction & Discharge
- G20 Thread
Key Features
Key Advantages
Self-PrimingHigh EfficiencyPatented DesignWear-Resistant Seal
Applications
- Water supply systems
- Washing systems
- Pressure boosting
- Irrigation
- General liquid transfer
