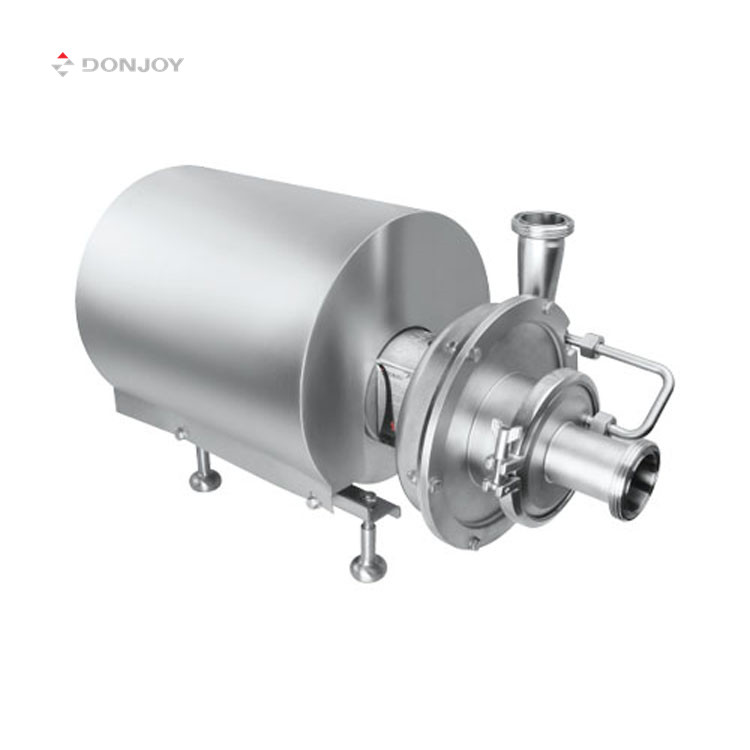

Self-Priming Centrifugal Pump
This self-priming centrifugal pump is designed for efficient operation, even with intermittent liquid supply. Its robust stainless steel construction ensures durability and resistance to corrosion, making it suitable for demanding industrial environments.
Technical Specifications
Overview
High-Performance Self-Priming Solution
This self-priming centrifugal pump is engineered for demanding industrial water processing and fluid transfer applications. Featuring a robust stainless steel construction, it ensures durability and corrosion resistance in challenging environments. Its advanced self-priming capability allows for consistent and reliable operation, even when air or gas is present in the fluid stream.
Performance Metrics
Max Flow Rate
70 m³/h
Max Flow Rate
Max Head
70 H/M
Max Head
Technical Specifications
Surface Treatment
- ≤ Ra0.8μm
- ≤ Ra0.6μm
- ≤ Ra0.4μm
Mechanical Seal Options
Single SealDouble Seal
- Operating Temperature
- -20℃ to 150℃
- Construction Materials
- 304316L1.4311.4404ASME BPE 316L1.4435 NB2
- Inlet/Outlet Connections
- ThreadedClampFlangeAseptic Flange
Compliance & Certification
Industry Certifications
- 3-A-02-10
- MD/06/42-EC
- FDA 177.2600
- USP CLASS-II
- EG/VO1935/2004
