Screw Tap Grinder
This screw tap grinder specializes in sharpening machine tools for screw taps, offering a cost-effective alternative to conventional methods. It provides precise and efficient grinding, saving expenses on blade replacements.
Technical Specifications
Product Overview

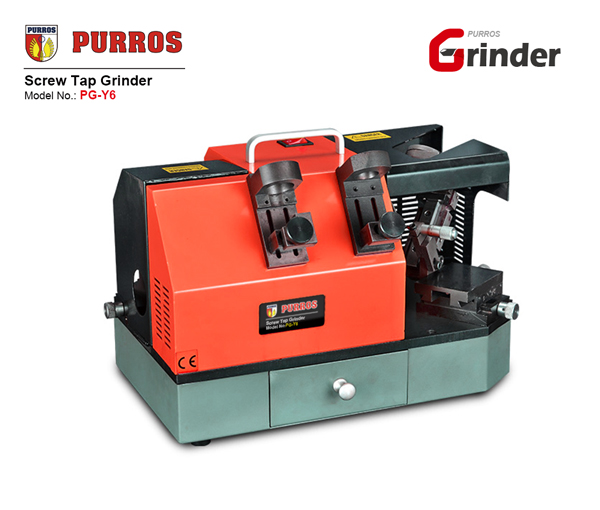

Precision Screw Tap Grinder
This screw tap grinder serves as a highly accurate and efficient alternative to conventional milling processes. It is designed to simplify the sharpening of screw taps, allowing for quick, high-precision results without requiring extensive professional skills. The unit is cost-effective, helping to significantly reduce annual tool replacement expenses while maintaining optimal milling performance.
Technical Specifications
Motor Speed
5,300 RPM
Speed
Electrical Requirements
| Parameter | Value |
|---|---|
| Voltage | 220V |
| Power | 180W |
- Grinding Range
- M5-M18
- Point Angle
- 5°~30°
Key Features
Key Benefits
- Precise sharpening of spiral tap front cutting lips
- Includes long-life Taiwan diamond grinding wheel
- Easy operation reduces requirement for skilled labor
- Robust and compact design suitable for various workshop sizes
Included Components

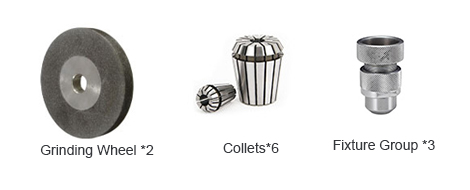

- Standard Accessories
- Grinding Wheel x2Collets x6Fixture Group x3
