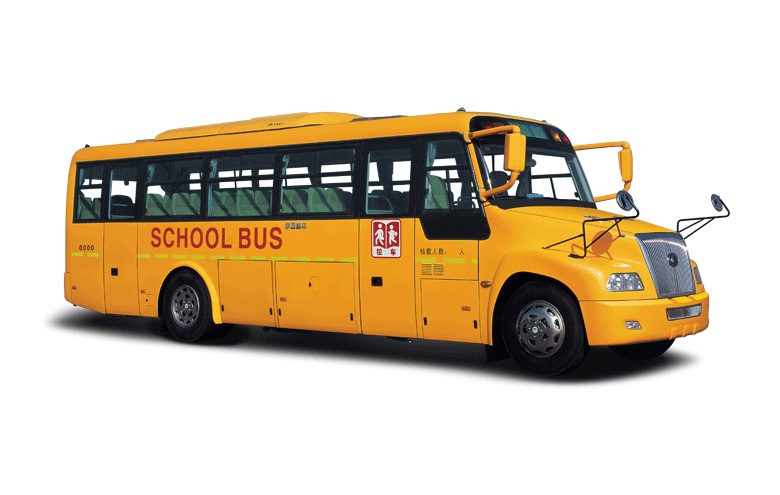

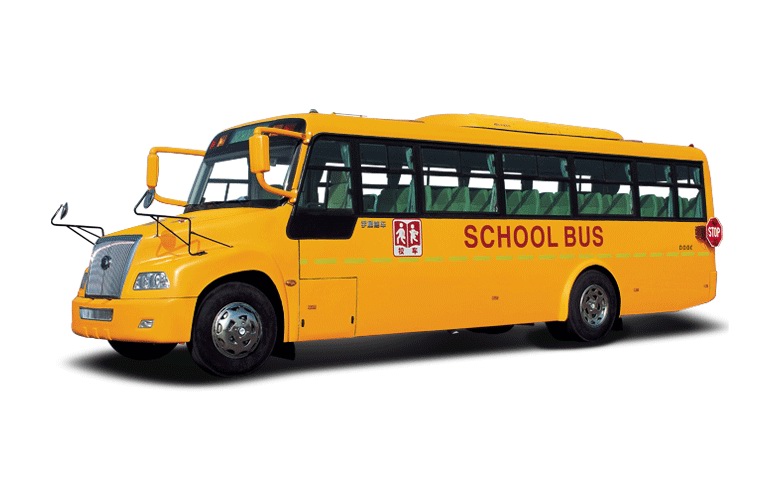

School Bus for Student Transportation
The ZK6100DA is a school bus designed for transporting students. It includes designs such as driver blind zone reduction and safety belts.
Technical Specifications
Overview
Designed for Student Safety
The ZK6100DA is a reliable school bus engineered for the safe and efficient transport of students. It features a robust chassis and a high-capacity seating arrangement for up to 52 occupants total. With integrated safety lighting, durable construction, and a powerful diesel engine, it offers a dependable solution for daily educational transportation needs.
Dimensions & Capacity
Overall Dimensions
9,980 mm
Length
2,430 mm
Width
3,150 mm
Height
- Maximum Weight
- 14000 kg
- Total Seating
- 49+2+1
Powertrain
Engine Specifications
| Feature | Value |
|---|---|
| Model | ISDe210 30 |
| Displacement | 6.7 L |
| Max Power | 155 kW @ 2500 rpm |
| Max Torque | 800 Nm @ 1200~1700 rpm |
- Drivetrain & Fuel
- DieselEuro III Emission Standard6AT GearboxLeaf spring suspension
Comfort & Systems
Internal Amenities
- Air conditioner: 28000kcal/h
- Integrated MP3 player audio & video system
